ACE Machine Tools Co., Ltd. >> Single Post Packing Lift (ACE6000P)

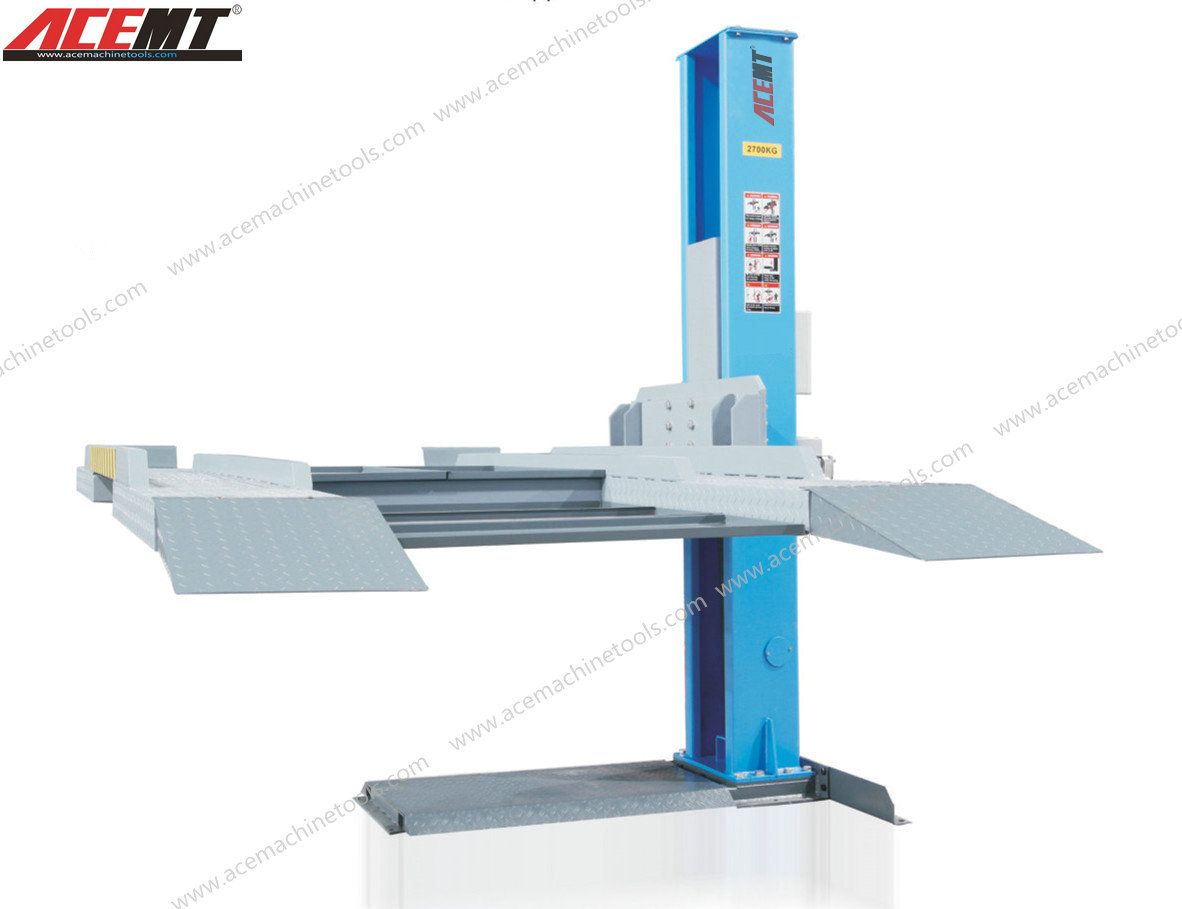

Single Post Packing Lift (ACE6000P)

Single Post Packing Lift (ACE6000P)
Price: US $ 1000-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

Single Post Packing Lift(ACE6000P)
FEATURES:
2700kg(6600Lbs) parking capacity
Save garage parking space
Group GH-6000P can be used as public parking facilities
Solid reliable lifting arm and sliding platform
Manual release at operating position
Operating control system with 24V safety voltage
24V height limit switch provided
Hydraulic pressure pre-setting prevention from lifting vehicle with exceeding rated loads
Routine testing with 115% dynamic and 150% static loading
CE approved.
TECHNICAL SPECIFICATION:

Lifting Capacity
2700kg
Lifting Height1900mm
Minimum Height110mm
Lifting Time50s
Overall Height2830mm
Overall Width2680mm
Overall Length4210mm
Motor Power2.2kw
power supply220V/240V/380V/415V
Weight1210kg
Prod Model: ACE6000P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lifting Time: 50s
Lifting Height: 1900mm
Minimum Height: 110mm
Type: One Cylinder Hydraulic Lift
Lifting Capacity: 1.5T
Certification: CE
Design: Two Post
ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
