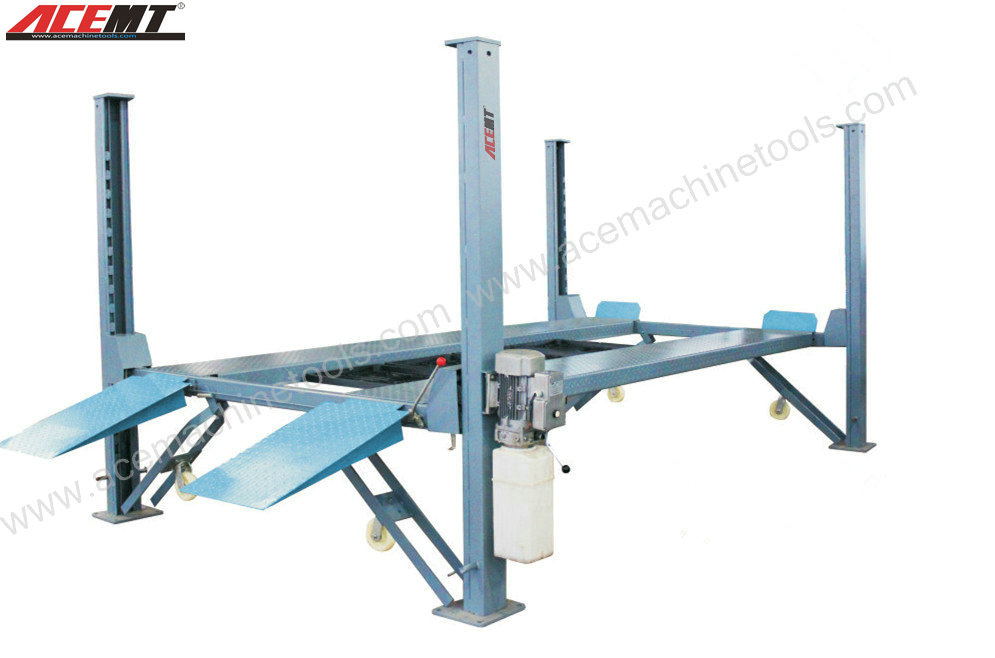

Four Post Packing Lift (ACE7432P)


Four Post Packing Lift(ACE7432P)
Main Features:
It's ideal choice for simple vehicle service and vehicle parking in families or commercial parking lots.
Manual machinery lock release,simple and convenient.
Electronic release protection device.Safe and efficient(optional).
As standard,equipped with dropping disc.
Using integrated docking platform,easier to use and better overall effect(optional)
Selft-lubricating bearing design,ensure vehicle in any lifting height safety.
Optional mobile kit can make the whole lift move easily in your garage.
Both side of the runway using the side panels to facilitate the proper vehicle to enter(for novice)optional.
Mechanical safety lock automatically engaged when the rise.
Double limit switches,more secure and reliable (optional)
Oil drip tray protects the vehicle below from being contaminated.
It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity.
Ce certificated.

Model	ACE7432P
Lifting Capacity	3200kg
Lifting Height	1800/2000mm
The Minimum Height	115mm
Overall Length	5000/5400mm
Overall Width	2670/2800mm
Overall Height	2138/2368mm
Column Height	2138/2368mm
Runway Length	4000/4400mm
Runway Width	480mm
Ramp Length	860mm
Weight	920/980kg
One 20 feet container	fill the 12 units
