1. INFORMATION

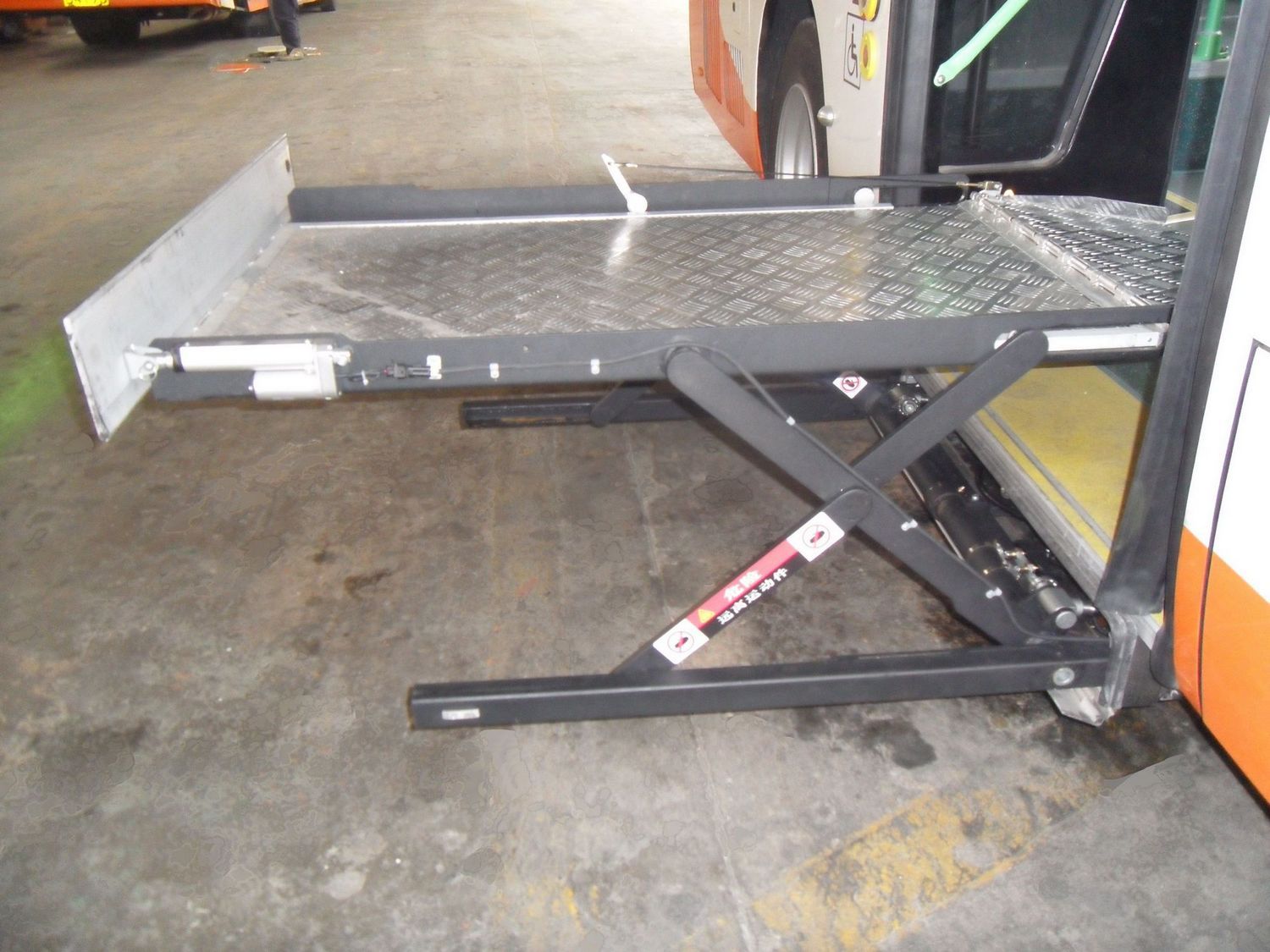

WL-UVL Series Scissor wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating switches.
This wheelchair lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down.
2. ADVANTAGES
Ø Electric outboard rollstop and automatic inboard rollstop
Ø Super thin compact design
Ø No-skid aluminum honeycomb platform
Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Ø Side handrails (Option), for increased comfort and security
Ø Sound and flash light alarm during operation of platform
Ø Built in manual backup system
3. SPECIFICATIONS:
Ø Raise lift platform: motor drive, hydraulic function;Ø Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;Ø Raise platform manually: operate manual pump;Ø Lower platform manually: rotate button of manual pressure release valve with specialized tool;Ø Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);Ø Model & Capacity of hydraulic oil: L-HV46
|

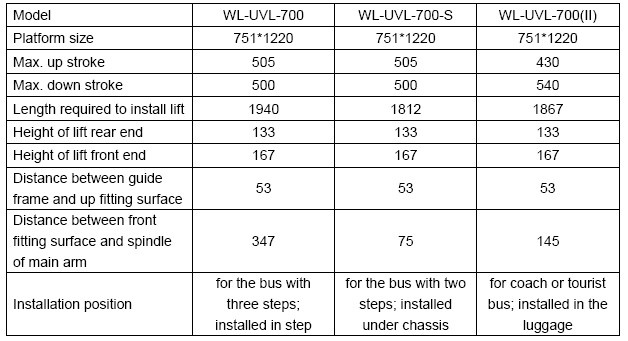

model |
WL-UVL-700 |
WL-UVL-700-S |
WL-UVL-700II |
|
platform size |
751*1220 mm |
751*1220 mm |
751*1220 mm |
|
max up stroke |
505 |
505 |
430 |
|
max down stroke |
500 |
500 |
540 |
|
length required to install lift |
1940 |
1812 |
1867 |
|
height of frame rear end |
133 |
133 |
133 |
|
height of frame front end |
167 |
167 |
167 |
|
distance between guide frame and up fitting surface |
53 |
53 |
53 |
|
distance between front fitting surface and main arm |
347 |
75 |
145 |
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
