Rotating Wheelchair Lifts for Coach and Tourist Bus Hydraulic Wheelchair Hoist (WL-T-1600)

Name: Rotating Wheelchair Lifts for Coach and Tourist Bus Hydraulic Wheelchair Hoist (WL-T-1600)
Brand: ibuyautoparts.com
SKU: 715501085
Availability: InStock
Rating: 5 (147 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Set
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Ø WL-T rotating series wheelchair lift is developed on the basis of our existing WL-UVL series wheelchair lift. It mainly takes the limited luggage space into consideration, save space to adopt rotating device to achieve it.

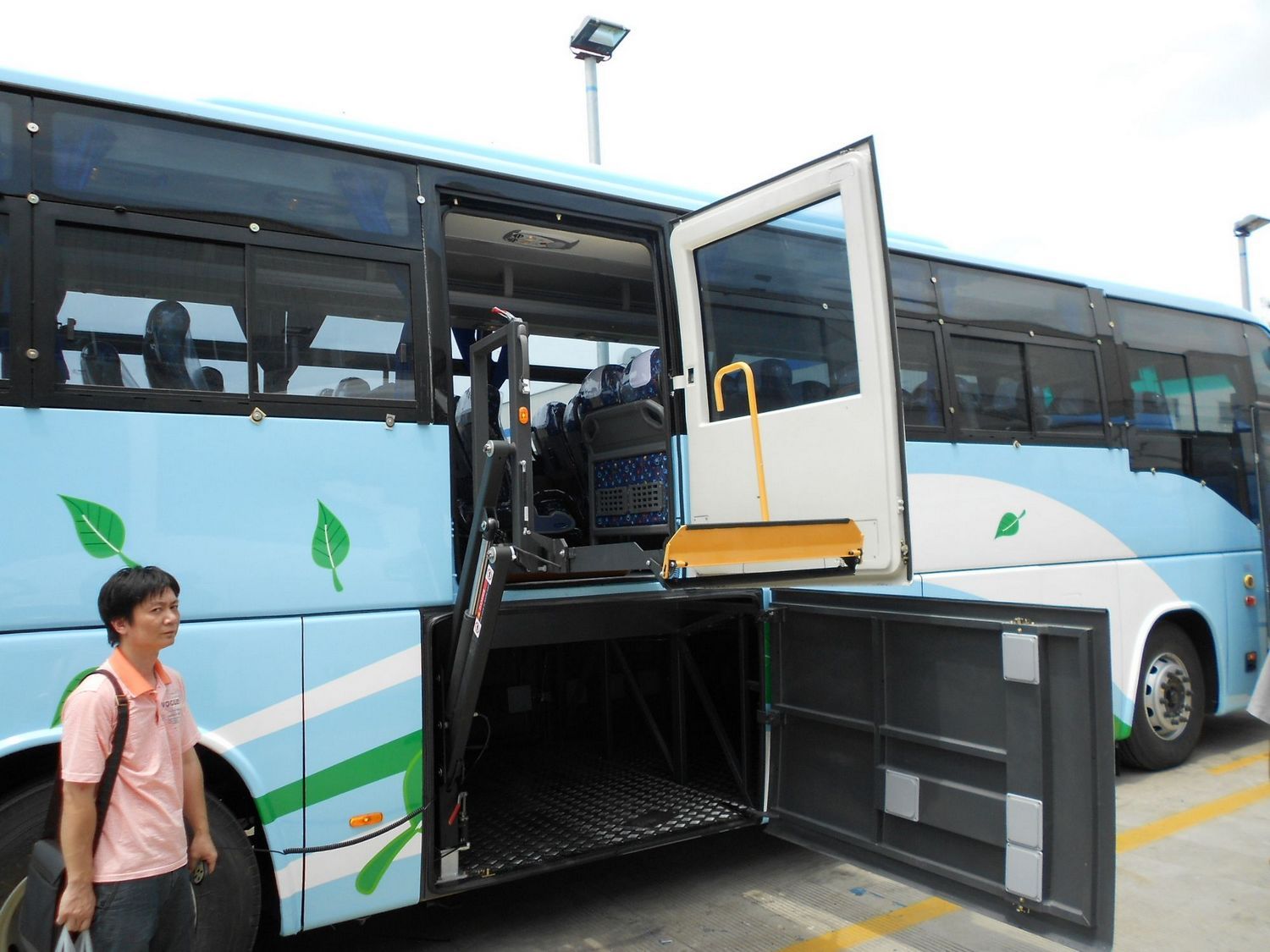

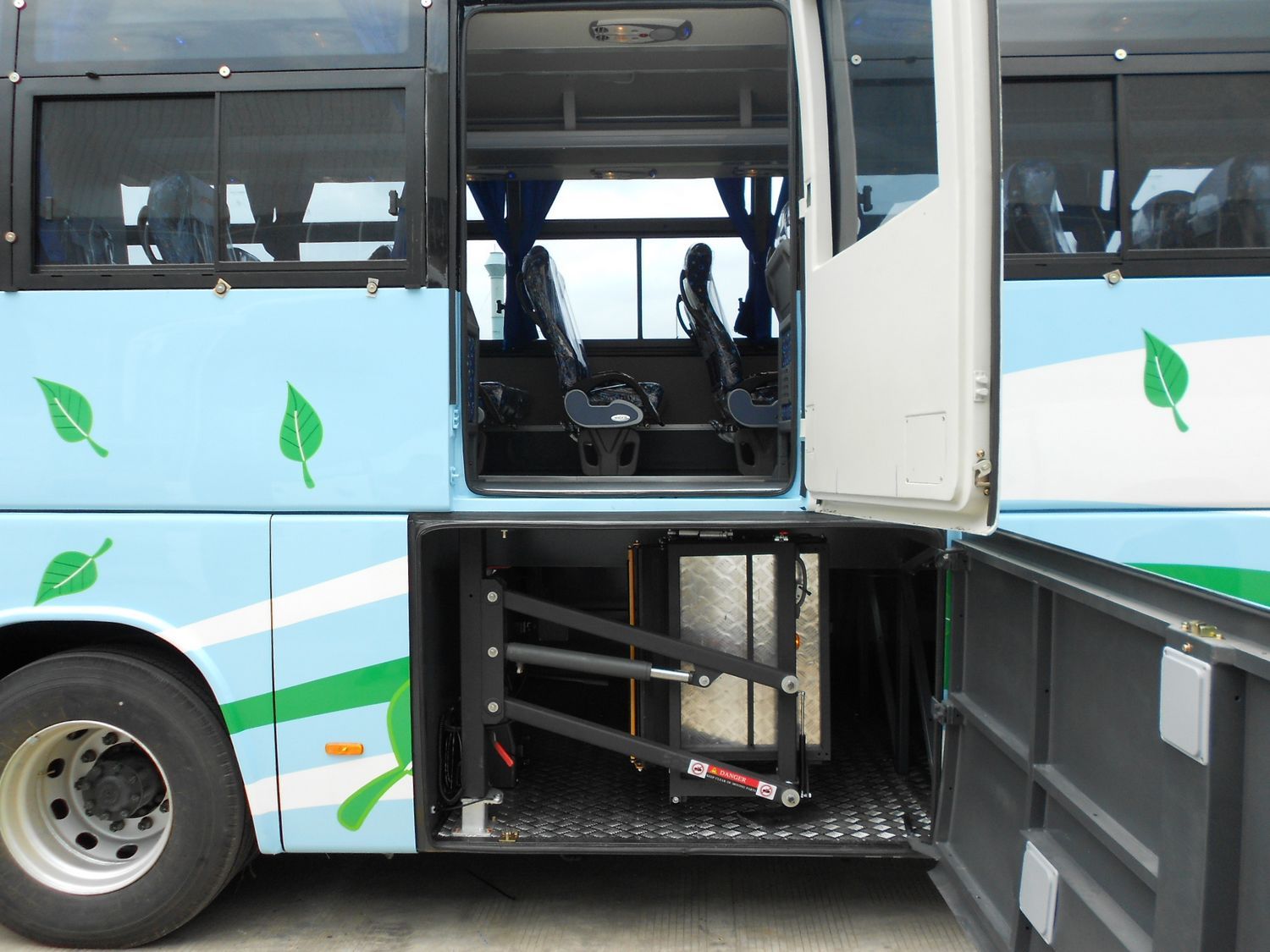

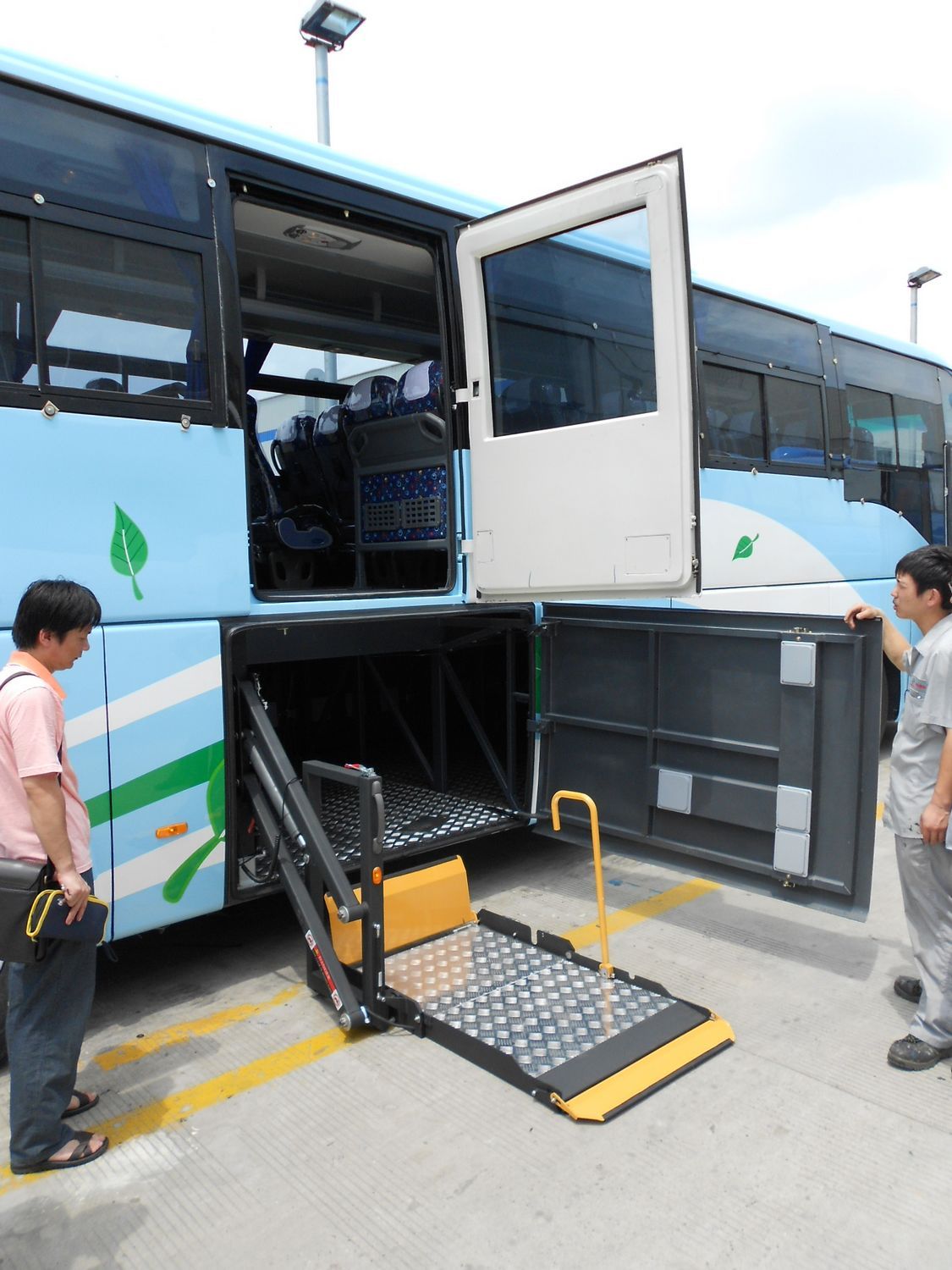

Ø This wheelchair lift is composed of rotating device, hydraulic raising mechanism, and platform. Rotating device is used to control the rotation of the wheelchair lift. It rotates the wheelchair lift vertical to the door so as to let the passenger in and out and also maintain parallel to the door when the wheelchair is stowed and rotated to the door.
Ø Hydraulic raising device adopt hydro cylinder and USA hydraulic station to achieve the liberation of the arm of the wheelchair lift in vertical, so as to make the lifting device to come to the lifting height of the platform.
Ø There is inboard and outboard roll stop, and the wheelchair is placed on the platform. Make the wheelchair on the platform with front and rear roll stop, and then enter the inside of the vehicle. Meanwhile, the front and rear roll stop can protect the wheelchair when the platform is up and down.

model	Platform size	Dimensions	rear rollstop	lifting height	volt	Application
WL-T-1600	830*1220	28210161068	816*250	1600	12-24V	Coach
WL-T-1000	830*1220	10751050485	816*270	1000	12-24V	coach

Prod Model:	WL-T-1600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Platform Size:	830*1220mm
Certificate:	CE
Loading Capacity:	350kg
Own Weight:	160kg
Lifting Height:	1000-1600mm
Material:	Steel
Type:	Wheelchair Lift

Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.

Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.

There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.

Our goal is to provide the best solutions for customer's requirements.

Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.

XINDER works in many fields:

1 Electric & Manual Wheelchair Ramp

2 Wheelchair Lift

3 ES Series Electric Step

4 Manual Step

5 Wheelchair Restraint System

6 Manual Control System

7 Electronic Accelerator Pedal

8 Handicapped Electric car

9 Seat Fixing System
