Company Information
Qingdao Risense Mechatronics Co., Ltd. As a prominent manufacturer, supplier and exporter, has grown to be a leading force to produce all kinds of car wash machine with the MK's advanced technology and core components from Japan. Our specific goal was to develop a complete line of car wash machine that was rugged and durable, built with Japan parts and easy to install, use, and maintain.

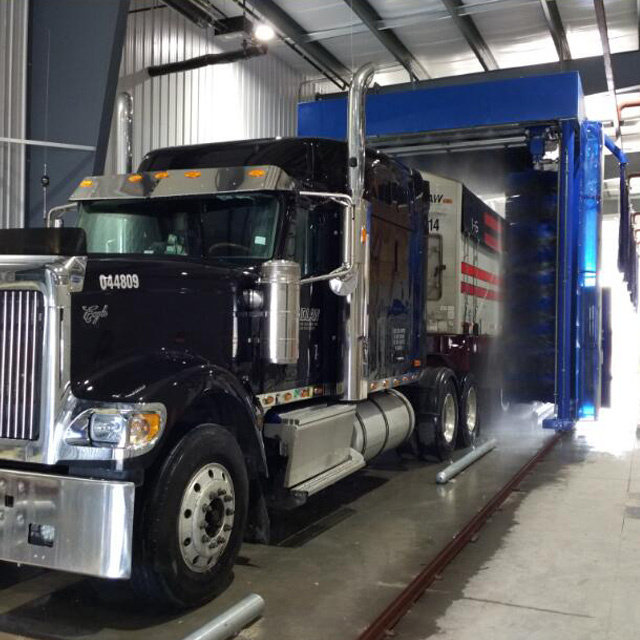

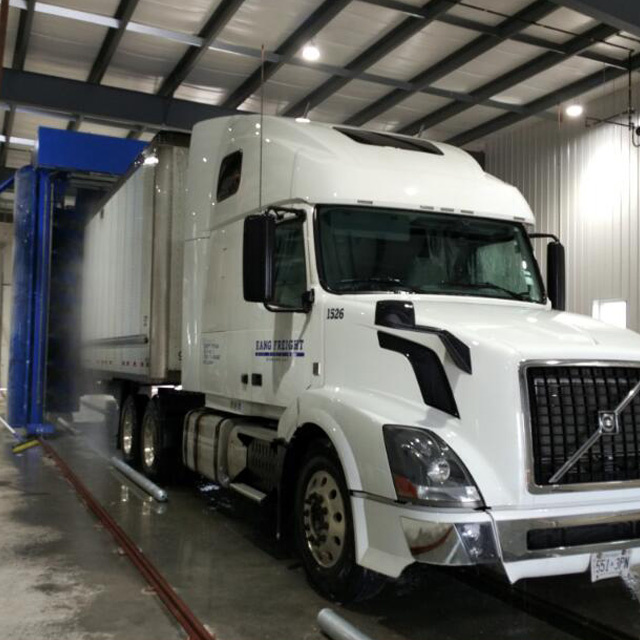

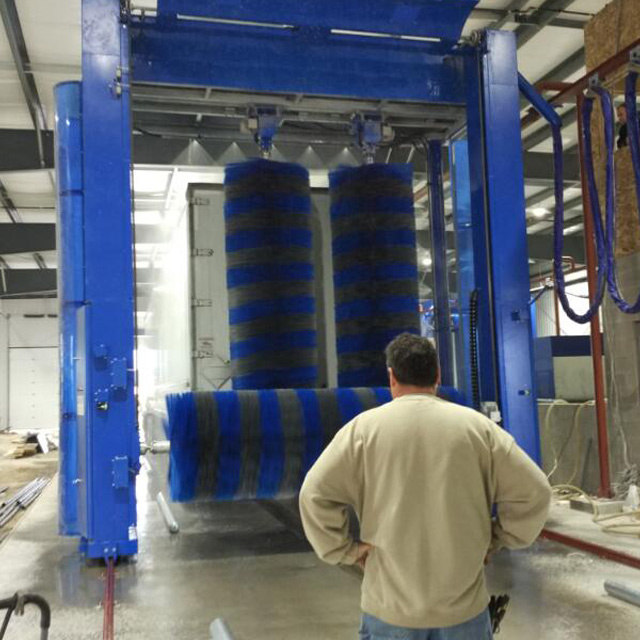

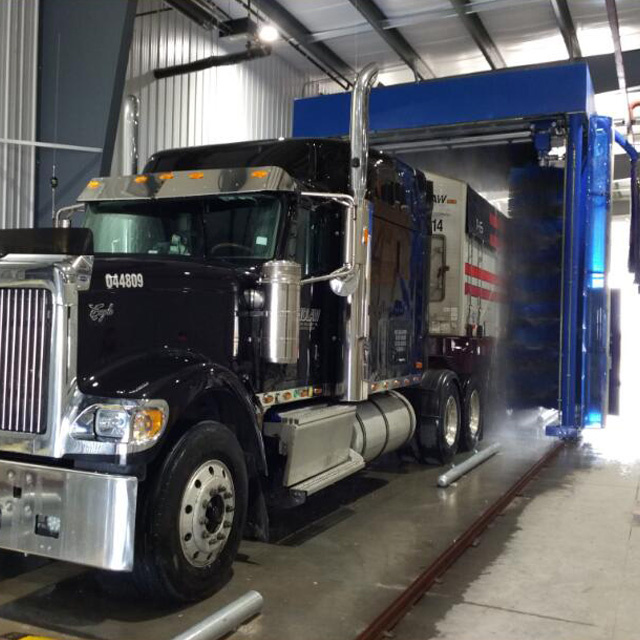

CB-730 Automatic bus and truck wash machine
Main Features:
1. Can identify the car model with photoelectric and approaching sensors.
2. Hot-dip galvanized frame can keep the whole machine stable and long life use.
3. PLC electronic control panels system can easy to operate and maintain.
4. The dovetail foam brush makes the car washing more quiet and clean.
5. High quality control systems, motors and pumps from Japan can keep the car wash running with great performance in any conditions.
6. The high sensor on the top brush can keep the bus from damage.
7. The motor with IP67 make the machine work well in the water condition.
8. Fully automatic wash rolls over the rails and easy to install, operate use and maintain.
9. With on-site installation and operate training for free and long time quality guarantee to whole car wash.
The advanced structure and parts of CB-730 bus wash machine
1. PLC control systems imported from Japan.
2. Automatic wax and foam formulating system.
3. Wax sprinkling system automated.
4. The second generation nylon brush.
5. Hot-dip galvanized frame.
6. High pressure water systems.
7. The sensor made by BN from America.
8. The operate panel with flame retardant and weather resistance.
9. The frequency converter made by SL from Taiwan.
10. The air cylinder made by YDK from Taiwan.
11. The IP67 waterproof motor made by CD from Italy.
FAQ
Which service will you offer?
L Beside to manufacture touch-free car wash, rollover car wash, tunnel car wash, bus and truck wash, wheel wash system with our own brand. We also offer ODM and OEM from all customers' requirements.
Who will install my car wash?
L We offer you the construction design drawings for your car wash bay, then we will send our engineer to your side to install and operation training.
How long will the machine quality guarantee?
L We have made the car wash machine running-in times before leave factory, and the failure rate is approaching zero, for the pumps, motors and electronic control panel systems all form Japan.
L The whole car wash machine guaranteed one year, and parts of components guaranteed 2-3 years. The wearing parts will offer you additional, such as wheels, chains and nozzles.
L The working life of the car wash can up to 15-20years.
| Overall dimensions | 3390x5466x6252mm |
| Assembling range | 21000x6580mm |
| Moving range | 21000x5114mm |
| Available size for car | 14000x3500x3100mm |
| Available car to wash | bus, double-decker bus |
| Washing time | -- |
| Car wash capacity | 12-15buses/hour |
| Mains voltage | AC380V /50HZ |
| Total power | 8.86KW |
| Water supply | DN25mm/Waterflow rate≥120L/min |
| Water/electricity consumption | 220L/Bus, 0.59kw/Bus |
| Shampoo consumption | 25ml/Car |
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.

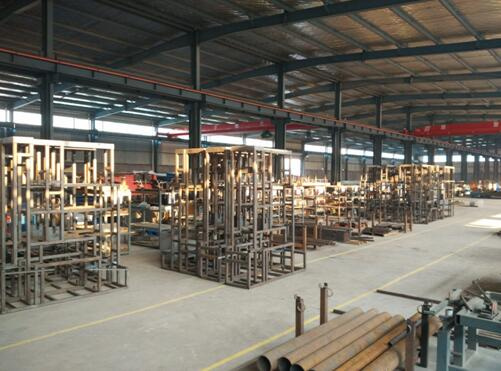

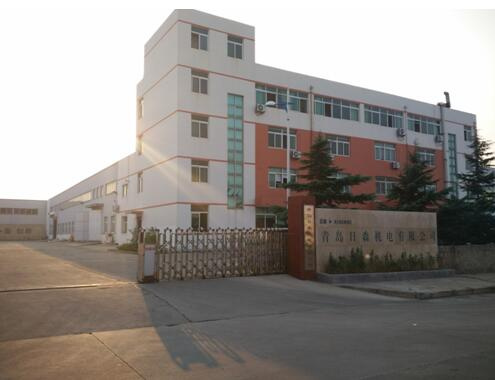

Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
