Company InformationQingdao Risense Mechatronics, Co., Ltd. is a Automatic car wash machine factory in china, cooperate with Japan MK seiko exclusively, using japan technology and core components.
We installed many automatic carwash machines in Thailand , Russia, Malaysia, China, Australia, Africa, Nigeria, Ghana, Kenya, Spain.
We have developed a reputation over the years among our customers from Canada, Indonesia, Malaysia, India, Taiwan, Africa, for providing a high quality car wash machine with competitive price.

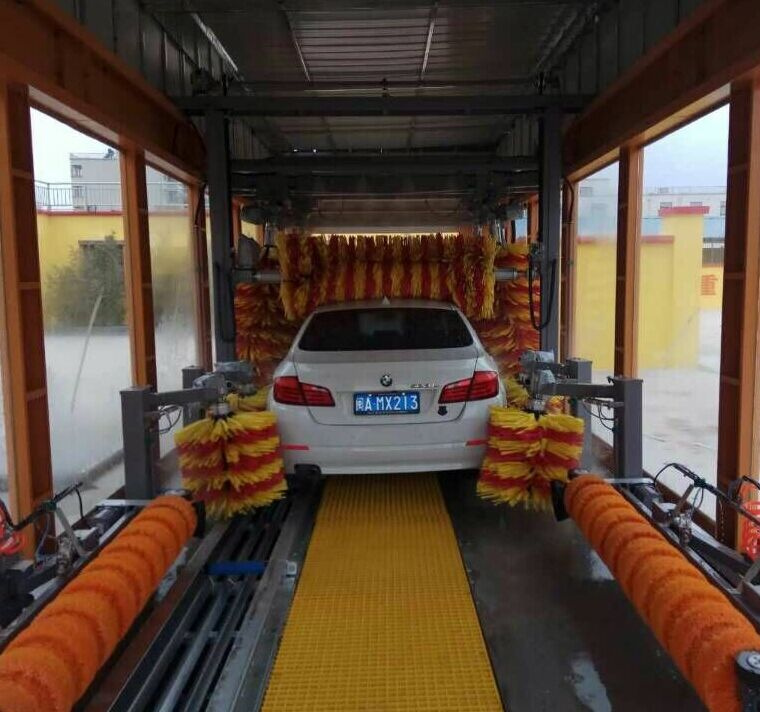

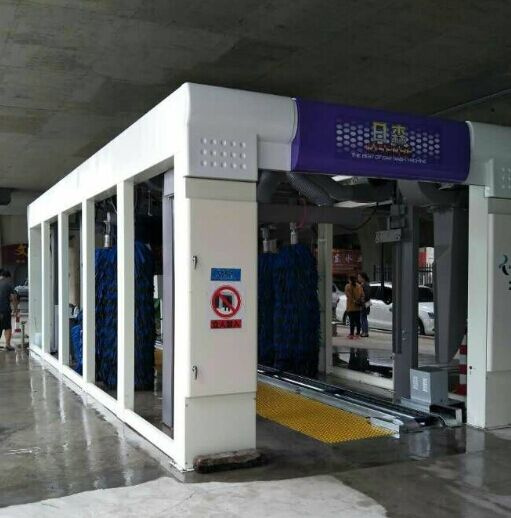

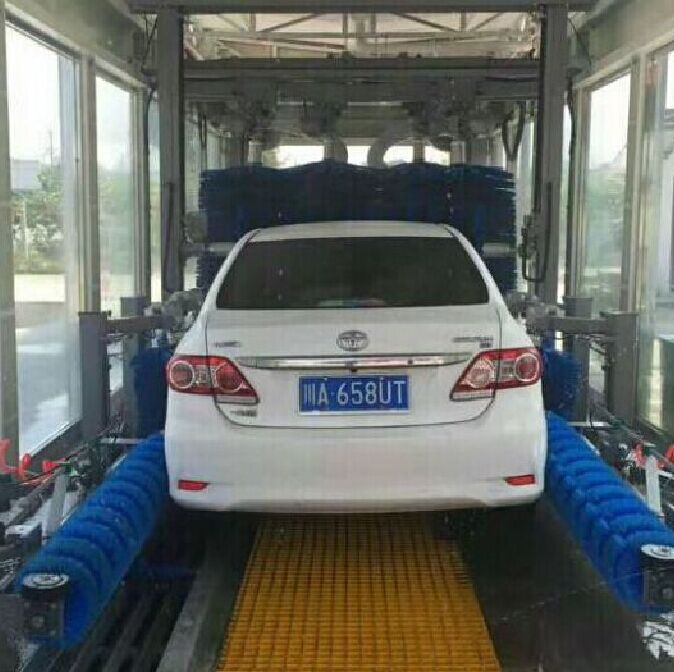

High Quality Tunnel Car Wash System CC-690
Risense CC-690 is a type of car wash system suitable for high speed car wash. It can be used to wash around 500 cars a day. And all the process is automatic and only one worker is needed to operate the machine.
Feature
1. Warning lights in entrance and exit of the tunnel to ensure the safety.
2. Tiltable side brush
3. Waterproof motor
4.Specialized brush for car wash
5. Control Panel with film surface
6. Wheel positioning device
7. Photoelectricity Sensor
8. Air-blow Dryer(moving up and down according to the shape of car)
FAQ
Which service will you offer?
1. Beside to manufacture touch-free car wash, rollover car wash, tunnel car wash, bus and truck wash, wheel wash system with our own brand. We also offer ODM and OEM from all customers' requirements.
Who will install my car wash?
2. We offer you the construction design drawings for your car wash bay, then we will send our engineer to your side to install and operation training.
How long will the machine quality guarantee?
1. We have made the car wash machine running-in times before leave factory, and the failure rate is approaching zero, for the pumps, motors and electronic control panel systems all form Japan.
2. The whole car wash machine guaranteed one year, and parts of components guaranteed 2-3 years. The wearing parts will offer you additional, such as wheels, chains and nozzles.
3. The working life of the car wash can up to 15-20years.
| Machine size | L10500mm×W3800mm×H3100mm |
| Conveyor size | L11580mm(wheel guiding device included) |
| Total electric capacity | 34.82KW |
| Wheel brush motor | 0.3kw×4 |
| Side brush motor | 0.3kw×4 |
| Top brush motor | 0.3kw×1 |
| Conveyor motor | 1.5kw×1 |
| Air dryer motor | 5.5kw×4 |
| Water pump motor | 1.5kw×1 |
| Driving motor | 0.2kw×1 |
| Top brush lifting motor | 0.2kw×1 |
| Top fan lifting motor | 0.2kw×1 |
| High pressure water swing | 0.2kw×1 |
| High pressure water | 5.5kw×1 |
| Maximum electric capacity | 34.82KW |
| Cars Suitable | car,jeep,coach within 10 seats |
| Size Suitable | L5300mm×W2200mm×H2100mm |
| Washing efficiency | 50-55cars/hour |
| Water Consumption | 120L/car |
| Electricity Consumption | 0.6kwh/car |
| Shampoo consumption | 7ml/car |
| Wax consumption | 12ml/car |
| Assemble size | L11580mm×W3800mm(machine only) |
| Electicity supply | AC380V,50Hz/60Hz |
| Water supply | pipe DN25 flow |
| Air supply | 0.75~0.9Mpa(7.5~9.0kgf/cm2)/flow≥0.1m³/min |
| | |
| | |
| | |
| | |
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.
Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
