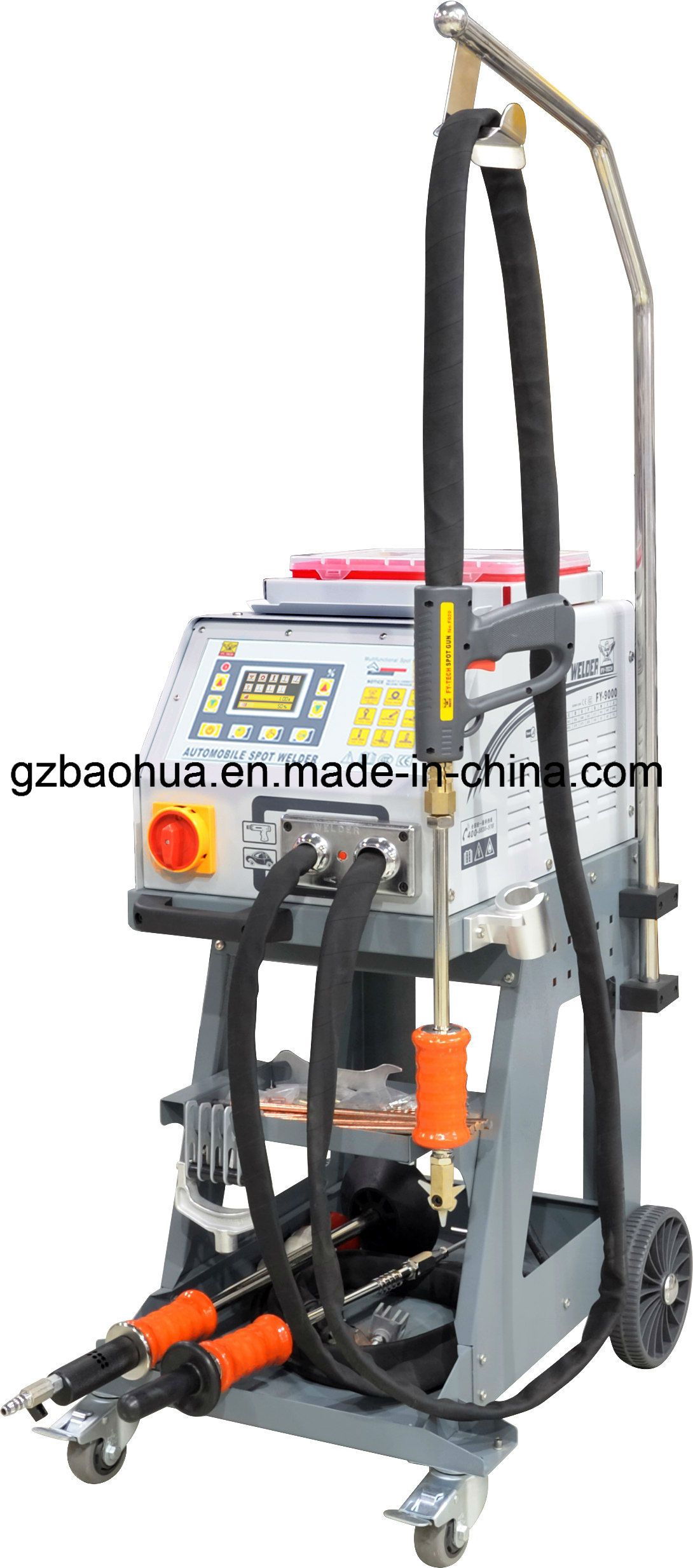

Multifunctional Resistance Spot Welder

Description:

This machine is equipped with innovative and advanced technology that allows the operating voltage to be compensated automatically. When the welder is connected to an AC380V power supply, the system compensates for variations of the main supply voltage and ensures a constant current level to achieve a high quality performance. The large digital graphic LCD display with blue backlight is easy to learn and read. The uniquely designed gun cable support arm allows flexible movement with a 360° rotation.

Features:

The microprocessor control system optimizes the welding parameters. Using advanced digital control technology and user friendly design, all you have to do is select the welding current corresponding to the work piece thickness to achieve the best welding results.

High precision time adjustment system

Automatic mains voltage monitoring

Overheating protection

A welding gun test function to evaluate the usage status of the welder

Suitable for dent pulling of different kinds of car steels such as conventional steel and stainless steel

A variety of welding procedures are available such as shrinking, washer, direct-pulling, spot welding, flattening, waveform wire, stud welding, OT washer and triangle washer

Digital graphic LCD display

Specifications:

Model
Input voltage:
Input power:
Input current:
Max welding current:
Output voltage carbon rod heating:
Output voltage washer melting rate:
Output voltage butt-weld:
One-side welding thickness:
Operation way:
Weld timing range:
Welding current regulation:
Cable length:
Dimensions:
Weight:

FY9000
AC 380-440V 50/60Hz
22KVA
57A
5800A
AC6-10V
AC1-12V
AC1-13V
0.8+1.2mm
BH9000:Electronic timer continuity
0-99min
Stepless
2300+1900mm
720*600*1550mm
86kg

Prod Model:	FY-9000
Demension:	7206001550mm
Weight:	90kg
Usage:	Spot Welding
Voltage:	AC 380-440V 50/60Hz, 380V 50/60Hz
Power(W):	22kw
Certification:	ISO9001:2000
Warranty:	3 Years
After-Sales Service Provided:	Overseas Service Center Available
Color:	Gray
Max.V:	5800A
