Description:

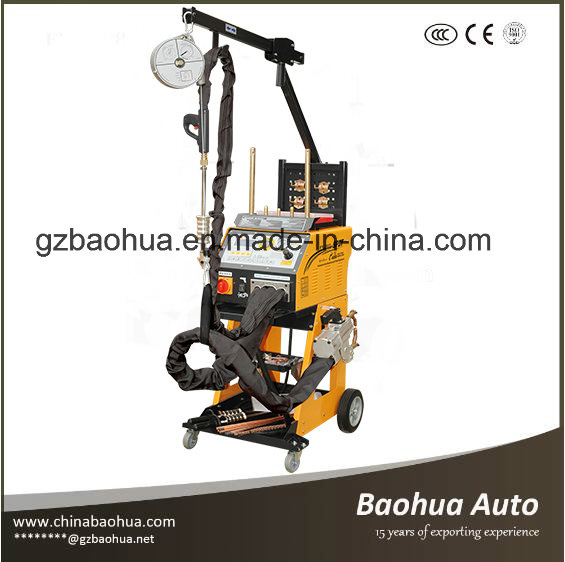

FY-9900 technology is revolutionary compared to others in the industry. With advanced and innovative technology, the operating voltage is compensated automatically. When the welder is connected to an AC380V power supply, the system compensates for variations of the main supply voltage and ensures a constant current level to achieve a high quality performance. The large digital graphic LCD display with blue backlight is easy to learn and read. A uniquely designed gun cable support arm allows flexible movement with 360° rotation and a stepless current control ensures the stability of the current in different welding conditions. This unit is equipped with an efficient integrated circuit that produces an accurate readout. A variety of extension arms is designed to accommodate any welding job. With 10 preset weld programs and 60 built-in memory functions, this unit is an excellent choice for body repair work and spot welding tasks.
Features:The microprocessor control system optimizes the welding parameters. Using advanced digital control technology and user friendly design, all you have to do is select the welding current corresponding to the work piece thickness to achieve the best welding results.Automatic mains voltage monitoringOverheating protectionDesigned for dent pulling of different kinds of car steels such as conventional steel and stainless steelUniquely designed gun cable support arm allows flexible movement with 360°rotationComplete with air filter and pressure regulatorStepless current and time regulationSingle-sided and double-sided weldingDigital graphic LCD display10 preset weld programs60 memory functionsElectrodes of C-type gun can be step-by-step opened and quadratic rapid closed Variety of welding procedures are available such as shrinking, washer, direct-pulling, spot welding, flattening, waveform wire, stud welding, OT washer and triangle washerComplete with pneumatic vacuum cupuleSpecification:| Input voltage: | AC380-440V 50/60Hz |
| Input power: | 26.8KVA |
| Input current: | 60A |
| Max welding current: | 9900A |
| Output voltage carbon rod heating: | AC6-10V |
| Output voltage washer melting rate: | AC1-12V |
| Output voltage butt-weld: | AC1-13V |
| One-side welding thickness: | 1.0+1.5mm |
| Two-side welding thickness: | 2.5+2.5mm |
| Maximum spot weld nugget : | 7mm |
| Air supply pressure: | 6-10kg |
| Operation way: | Electronic timer continuity |
| Weld timing range: | 0-99min |
| Cable length: | 2500+2500, 2300+2300mm |
| Dimensions: | 700x530x1800mm |
| Weight: | 138kg |
Guangzhou Baohua Auto Maintenance Equipment Trade Co., Ltd is founded in 1998 and located in Guangzhou city. We have a professional research technical team in automobile maintenance Equipment.
We have more than 1000 kinds of car equipment and 2000 kinds of accessories. We are Manufacturer of car lift, spray booth, wheel alignment, A/C refrigerant recycle and fill machine, Nitrogen generator, Injector tester, Pneumatic sander with extraction system, automatic Car/Bus washing machine. What's more, we can provide our clients with a whole set of Garage Equipment, sheet metal Equipment and Tire shop repair Equipment.
We insists on the principle of "quality first and service first, we pay great attention to our reputation. So our products are sold well at home and overseas because of good quality product and excellent service. We will establish a mutual benefit business relationship. The most important is that we can offer our customers one-stop service.
