Professional Design Electric UTV with with 4000 Lb

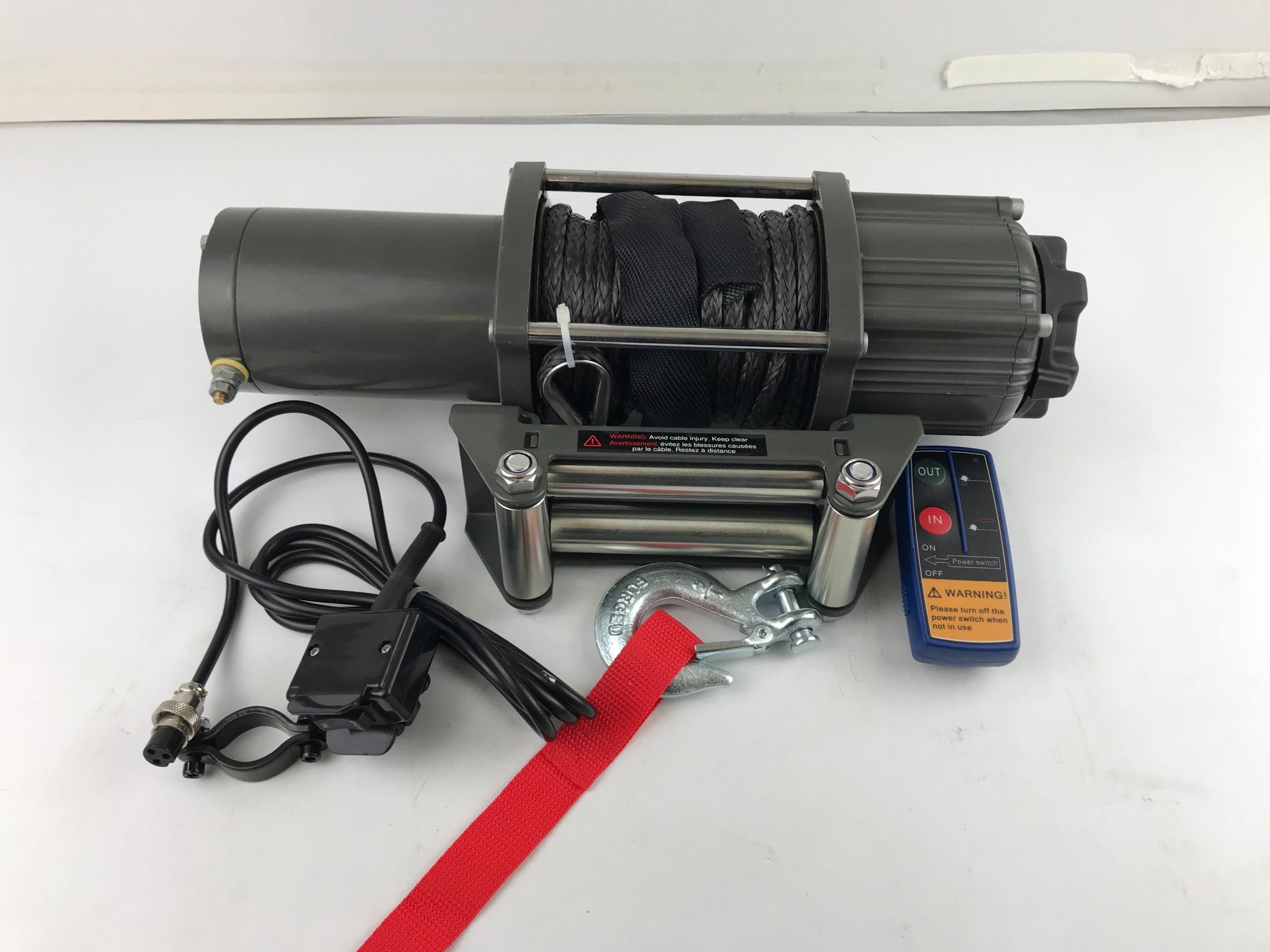

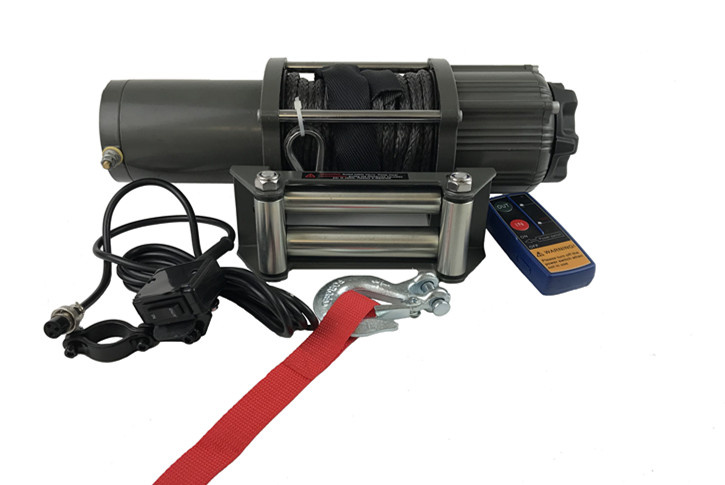

Name: Professional Design Electric UTV with with 4000 Lb
Brand: ibuyautoparts.com
SKU: 838603785
Availability: InStock
Rating: 4.4 (29 reviews)

Price:	US $ 110-128/Piece
Min Order:	36/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XM-XU810
Pulling Rate:	4000 Lb
Durable:	Lifetime
Size:	Compact Design
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Electric Winch Model:	ATV
Certification:	CE
Pull Direction:	Forward and Backward
Working Voltage Of Electric Winch:	12 or 24 V

Product Description

Specs and Features : 4000 lb UTV winch
XM-XU810
1) Rated line pull: 4000lbs (1,814kg) single-line
2) Motor: 12V DC, 1.6hp (1.2kW) permanent magnet
3) Control: mini-rock switch and remote control, 10ft (3.0m) lead
4) Geartrain: 3-stage planetary
5) Gear ratio: 136:1
6) Clutch (free spooling): cam activated
7) Brake: automatic mechanical brake is available
8) Drum diameter/length: 2.0"/4.7" (51mm/119mm)
9) Synthetic rope: 55', 15/64" diameter (16.8m, 6.0mm diameter)
10) Cable management: aluminum hawse fairlead
11) Recommended battery: 500 CCA minimum for winch
12) Battery leads: four color wire
13) Duty cycle: intermittent
14) Mounting bolt pattern: 3.0 x 6.6" (76 x 168mm)
15) Finish: OEM

PERFORMANCE DATA
Line Pull Lbs.(Kgs.)	Line Speed FT. / min (M/min.)	Motor Current	Pull by Layer layer / Lbs (Kgs.)
0	26 (7.9)	31	1 / 4000 (1818)
500	20 (6.1)	70	2 / 3520 (1600)
1000	16 (4.9)	106	3 / 3098 (1408)
1500	14 (4.3)	141	4 / 2726 (1239)
2000	11 (3.4)	175
2500	8 (2.4)	224
3000	7 (2.1)	245
3500	6 (1.8)	268
4000	4 (1.2)	308

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
