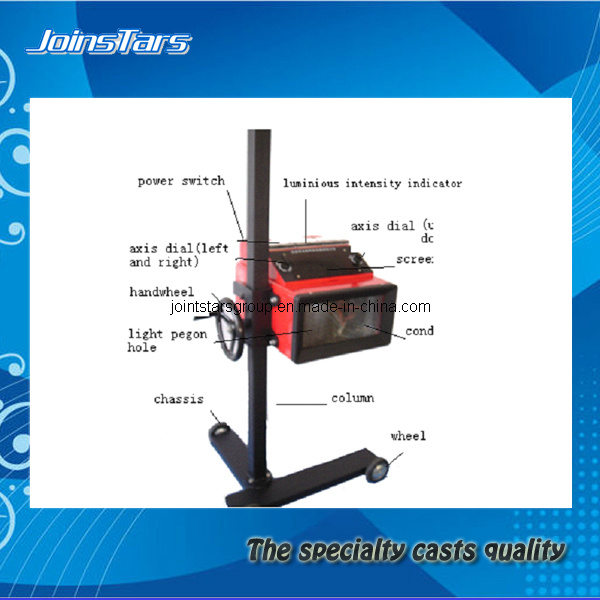

Portable Headlight Tester Hadlight Test for Automotive Lighting

Name: Portable Headlight Tester Hadlight Test for Automotive Lighting
Brand: ibuyautoparts.com
SKU: 669507531
Availability: InStock
Rating: 4.5 (35 reviews)

Price:	US $ 1500-2000/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Main Function:

Test the light intensity and optical axis deviation of motor vehicle at the same time

Optional built-in printer to print the test result

Legerity, easy to install, accuracy measurement

Adopt advance optical system structure, and the light characteristic of tested headlamp will displayed on the screen, then convenient to observe and adjust

Equipped with analog signal and digital signal networking

Low power, work with the battery powered

Main Technical Parameter:

Light intensity:
0~40000CD 0-80000CD

Power:
Bib size cell*4 or AC220V-DC5V transformer

Optical axis deviation:
Vertical direction: Up1° 40'~down 2° 20'
Horizontal direction: Left 2° 20'~right 2° 20'

Indication error:
Light intensity: ± 12%
Optical axis deviation: ± 15'

Indicate range of headlight: 0.4-1.3m

Test distance: 1 m

Weight: 22 Kg

Packing size:

Case: 635*580*485 mm

Upright post: 1510*120*120 mm

Prod Model:	D1T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Headlight Tester:	Headlight
Type:	Auto Diagnostic Tool
Function:	Shining
Certification:	ISO
Update Method:	by Internet
