1. INFORMATION

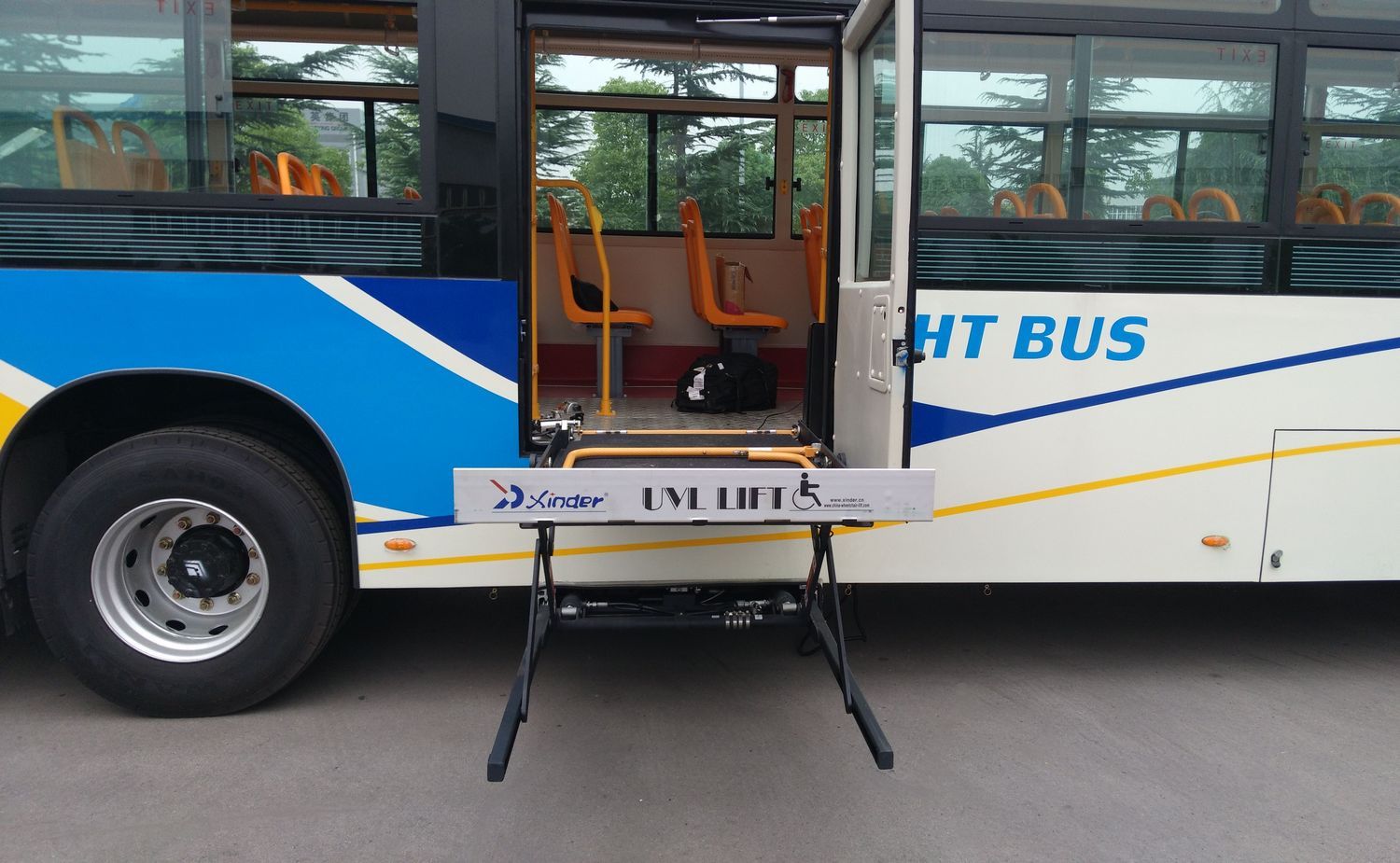

WL-UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 300KG. The handicap wheel chair lift occupant, attendant or driver can operate it by operating switches.
This bus lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the power wheelchair lift go inside the vehicle, also protect the platform when it raise up and down. It uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline.
2. ADVANTAGES
Electric outboard rollstop and automatic inboard rollstop
Super thin compact design
No-skid aluminum honeycomb platform
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Side handrails (Option), for increased comfort and security
Sound and flash light alarm during operation of platform
Built in manual backup system
3. MAIN DIMENSIONS
Model | Platform Size | Max
UP Stroke |
Max
Down
Stroke |
Installation Length Required |
net door width |
max floor Height | Installation
Position | Max lifting height | certificate |
| UVL-1300II | 750*1295mm | 740mm | 7100mm | 1995mm | 800mm | 1450mm | in vehicle luggage | 1450mm | CE |
4. TECHNICAL SPECIFICATION
Model |
Voltage |
Motor power |
Pressure |
Cylinder diameter&stroke |
UVL-1300II |
12V/24V |
0.8Kw |
2500Psi |
Φ60X70
unidirectional operation |
Max lifting load |
Max lifting height |
Voltage |
Len & width of platform |
350 Kg |
1450mm |
12/24 V |
750*1295mm |
Raise lift platform: motor drive, hydraulic function;
Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;
Raise platform manually: operate manual pump;
Lower platform manually: rotate button of manual pressure release valve with specialized tool;
Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);
Model & Capacity of hydraulic oil: L-HV46
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
