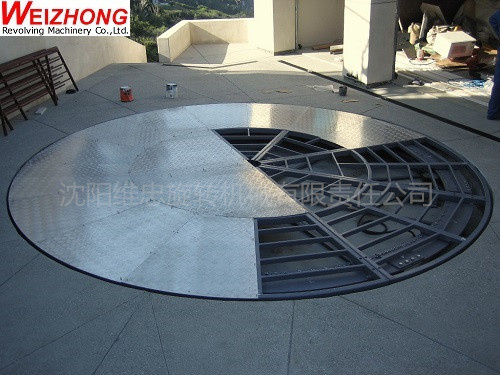

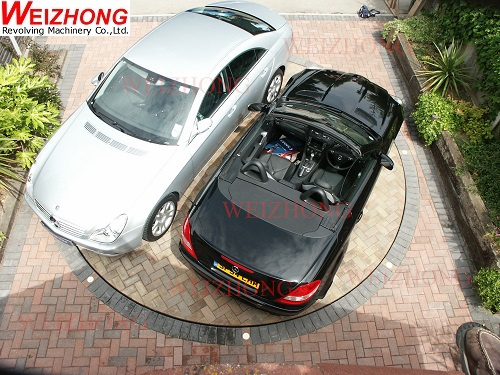

Outdoor Car Turntable Driveway Turntable

Outdoor Car Turntable Driveway Turntable
Price: US $ 5000-12000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: ZM / ZX Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter: 3-24 Meters
Height ( Without Top): 305mm
Speed: 0.2~1rpm
Loading: 4000kg~8000kg
Motor Power: 0.75kw / 1.1kw
Power Required: AC220V / AC110V / AC380V

Product Description





The key feature of Weizhong car turntable is the Pin-Gear drive mechanism that ensures smooth revolving, reliable operation, long life and minimal wear and tear.
Most competitive turntables apply a friction drive mechanism, which, as the name implies, is subject to more wear & tear and therefore more maintenance issues.
Weizhong car turntable is suitable for both indoor and outdoor applications. Remote control operation is available if required.

Weizhong car turntable offers a complete range of size and load capability from 10' to 60' in diameter, and easy operation with various speed control or programmable direction and function.

Diameter4-meter4.5-meter5-meter5.5-meter6-meter
Height
(without top)		305mm305mm305mm305mm305mm
Speed0.2~1Rpm0.2~1Rpm0.2~1Rpm0.2~1Rpm0.2~1Rpm
Loading4,000~8,000Kg4,000~8,000Kg4,000~8,000Kg4,000~8,000Kg4,000~8,000Kg
Motor Power0.75KW /1.1KW German Nord Motor and Gearbox with CE/UL Certificate
Power RequiredAC220V / AC110V / AC380V
Drive PositionWeizhong Patent Pin-Gear Drive System
Control BoxOn/Off buttons, CW/CCW selector, STOP button, Various speed control
Remote Control systemSweden Tele-Radio Remote control system
Steel CoatingRust resistant paint and primer / Hot-dipped galvanized
Top Surface18mm thick MDF board / 22mm thick plywood / 4mm thick diamond steel plate / 6mm thick diamond aluminum alloy
Additional OptionPC Control / Motion Control / Stop Position Control
Shenyang Weizhong Revolving Machinery Co., Ltd. Has been operating since 1991 and is the world' S leading manufacturer of revolving restaurants, car turntables, truck turntables and industrial turntables. We can supply turntables of any size and load capability, in diameter from 3-meter to 60-meter and capable of accommodating loads weighting 500KG to 1, 000 metric tons.

Weizhong turntables apply our own Patent Pin-Gear Drive system. It' S a technically superior drive system, without the problems that are typically associated with friction drive systems. The advantages of Pin-Gear Drive are smooth revolving, reliable operation, long life with minimal wear and tear.

Since 2000, Weizhong has devoted to develope an oversea market. Up until 2011, our turntables have been exported to North America, South America, Europe, Africa, Australia and Middle East about more than 30 counties throughout the world.

In addition, Weizhong achieved ISO9001 quality control system in 1999 and now has subsequently achieved the ISO9001-2008 certificate. By choosing Weizhong turntables you can be assured of its quality, honesty and reliability.
