Auto Turntable (ZX)

Auto Turntable (ZX)
Price: US $ 5000-12000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: ZX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Diameter From 10 to 50 Feet

Product Description

The key feature of Weizhong car turntable is the Pin-Gear drive mechanism that ensures smooth revolving, reliable operation, long life and minimal wear and tear.
Most competitive turntables apply a friction drive mechanism, which, as the name implies, is subject to more wear & tear and therefore more maintenance issues.

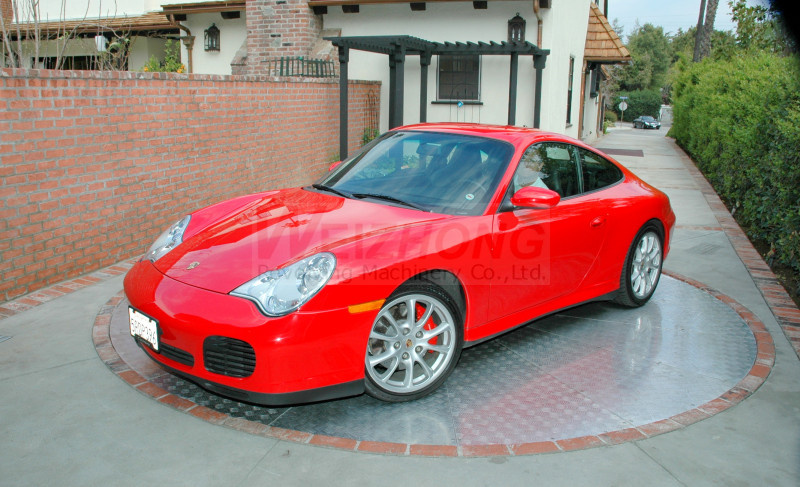

Weizhong car turntable is suitable for both indoor and outdoor applications. Remote control operation is available if required.

Weizhong car turntable offers a complete range of size and load capability from 10' to 60' in diameter, and easy operation with various speed control or programmable direction and function.

Diameter4-meter4.5-meter5-meter5.5-meter6-meter
Height
(without top)		305mm305mm305mm305mm305mm
Speed0.2~1Rpm0.2~1Rpm0.2~1Rpm0.2~1Rpm0.2~1Rpm
Loading2, 500Kg3, 000Kg3, 000Kg3, 500Kg4, 000Kg
Motor Power0.55KW German Nord Motor and Gearbox with CE Certificate
Power Required1 phase 110V AC ~240V AC
Drive PositionWeizhong Patent Pin-Gear Drive System
Control BoxOn/Off buttons, CW/CCW selector, STOP button, Various speed control
Remote Control systemSweden Tele-Radio Remote control system
Steel CoatingRust resistant paint and primer / Hot-dipped galvanized
Top Surface18mm thick MDF board / 19mm thick Plywood / 4mm thick diamond steel plate / 6mm thick diamond aluminum alloy

Shenyang Weizhong Revolving Machinery Co., Ltd. Has been operating since 1991 and is the world' S leading manufacturer of revolving restaurants, car turntables, truck turntables and industrial turntables. We can supply turntables of any size and load capability, in diameter from 3-meter to 60-meter and capable of accommodating loads weighting 500KG to 1, 000 metric tons.

Weizhong turntables apply our own Patent Pin-Gear Drive system. It' S a technically superior drive system, without the problems that are typically associated with friction drive systems. The advantages of Pin-Gear Drive are smooth revolving, reliable operation, long life with minimal wear and tear.

Since 2000, Weizhong has devoted to develope an oversea market. Up until 2011, our turntables have been exported to North America, South America, Europe, Africa, Australia and Middle East about more than 30 counties throughout the world.

In addition, Weizhong achieved ISO9001 quality control system in 1999 and now has subsequently achieved the ISO9001-2008 certificate. By choosing Weizhong turntables you can be assured of its quality, honesty and reliability.
