OEM Connecting Rod for Volkswagen

Name: OEM Connecting Rod for Volkswagen
Brand: ibuyautoparts.com
SKU: 782747905
Availability: InStock
Rating: 4.8 (57 reviews)

Price:	US $ 50-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Specification

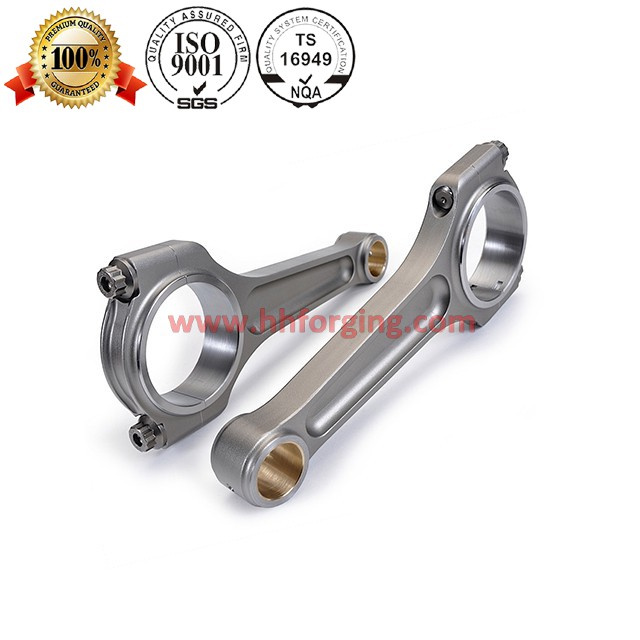

Item Name: Racing Connecting Rod (forged steel con rod)

Application for: Porsche, Chevy, Volvo, Opel, BMW, VW, Toyota, Nissan, Honda, Mitsubishi, Suzuki, Ford, Peugeot and etc.

Material: Forged steel/40Cr/20Cr/aluminum

Production capacity: 10,000 Set/month

Warranty: 2 years

Delivery Day: about 30 days

Beam Style: I beam/H beam

No.	Car model	Engine model	pcs/set	(mm)c-c	B/E bore	S/E bore	B/E W	S/E W	bolt
38	VW	VW(5.394")	4	137.01	57.795	22.02	22.5	25.3	3/8"
38b		VW(5.394")	4	137.00	57.795	22.02	22.53	25.3	5/16"
39		VW(5.500")	4	139.70	57.795	22.02	22.5	25.3	3/8"
39d			4	133.50	48	19	21.8	21.8	5/16"
40		VW(5.700")	4	144.78	57.795	22.02	22.5	25.3	3/8"
40b		VW(5.716")	4	145.19	57.795	22.02	22.7	22.7	3/8"
41		VW(5.325")	4	135.00	57.795	22.02	22.5	25.3	5/16"
41		5.325"	4	135.25	57.678	22	22.53	25.3	5/16"
42		VW(5.500")	4	139.00	57.795	22.02	22.5	25.3	5/16"
43		CHEVY(5.325")	4	135.20	53.975	22.02	22.53	25.3	3/8"
43b		CHEVY(5.325")	4	135.20	53.975	22.02	22.53	25.3	5/16"
44		CHEVY(5.500")	4	139.70	53.975	22.02	22.53	25.3	3/8"
44b		CHEVY(5.600")	4	142.40	53.873	22.02	22.53	25.3	3/8"
45		CHEVY(5.700")	4	144.80	53.975	22.02	22.53	25.3	3/8"
46		CHEVY(5.700")	4	144.80	53.975	22.02	22.53	25.3	5/16"
46b		CHEVY(5.600")	6	142.40	55	22	22.86	22.86	3/8"
46c		CHEVY(5.900")	4	149.86	53.975	21.02	22.86	22.86	3/8"
47		VW 2.0L GOLF	4	159.00	50.6	20.02	25	25	3/8"
47b		VW 2.0L GOLF	6(4)	165.00	50.6	20	24.95	24.95	3/8"
47c		VW Golf 2.0L	5	159.00	50.6	20	24.95	24.95	3/8"
48		VW SCIRROCCO	5(4)(6)	144.00	50.6	20	24.95	24.95	3/8"
97a		VR6	6	164	56.8	20.005	19.9	19.9	5/16"
97b		VR6	6	164	56.8	20.005	19.9	19.9	3/8"
97e		VR6	6	164	56.8	20.005	19.9	19.9	3/8"
97C		VR6	6	164	56.8	20	19.9	19.9	5/16"
136a		S4 V6 V8 154	6	154	57.6	21	20.15	21.95	5/16"
136b		154	6	154	50.6	21	20.15	21.95	3/8"
136c		S2 155	5	155	50.6	22	24.95	24.95	3/8"
136d		154 RS4 V8	8	159	50.6	22.005	25	25	3/8"
136e		154-RS4-V8	6	154	57.6	21	20.15	21.95	3/8"
136f		S2	5	144	50.6	22.005	24.95	24.95	3/8"
136g		V6	6	154	57.6	21	20.15	21.95	5/16"
136h		S4	6	149.78	57.6	21	20.15	21.95	5/16"
136i		S3-TT	5	155	50.6	20.005	24.95	24.95	3/8"
136j			4	152	57.6	21	20.15	21.95	3/8"
137		1.8 -2L 159	4	159	50.6	21	24.95	24.95	5/16"
137b		CC148	4	148	50.6	20	24.9	24.9	3/8"
144		G60(1.5L 1.6L)	4	136	50.6	22	25	25	3/8"
144C			6	136	50.6	22	24.87	24.87	3/8"
197		136	6	136	50.6	20.02	24.87	24.87	3/8"
198		159-21 (G)	4	159	50.6	21	24.9	24.9	3/8"
198c		159-20	5	159	50.6	20	24.9	24.9	3/8"
199		136	4	136	49	22	24.9	24.9	3/8"
199d			4	145	49	22	24.9	24.9	3/8"
199f			4	144	49	20.005	24.95	24.95	5/16"
201		137B	4	137	57.8	22	22.89	22.89	3/8"
203			4	131	52.8	24	25.68	25.68	3/8"
204		136C	4	136	50.6	24	25.68	25.68	3/8"
204b			4	136	50.6	24	24.85	24.85	3/8"
205		136D	4	136	50.6	22	25.68	25.68	3/8"
206		144-53.7-26	4	144	53.7	26.01	24.95	24.95	5/16"
207		144-50.6-26	4	144	50.6	26.01	24.95	24.95	5/16"
207c		141.75-50.6-26	4	141.75	50.6	26.01	24.95	24.95	5/16"
214		135	4	135	50.61	24	25	25	3/8"
246		5.300"	4	134.62	57.795	22.02	22.5	25.3	3/8"
251		159 (HAO)	5	159	50.6	21	24.95	24.95	3/8"
251b		159	5	159	50.6	21	24.95	24.95	3/8"
251C		155.5	5	155.5	50.6	18	22.5	20	3/8"
251d		160	5	160	50.6	18	22.5	20	3/8"
252		154 (HAO)	5	154	57.6	21	24.95	24.95	5/16"
252b		154 (HAO)	6	154	56.8	21.01	20.12	21.92	5/16"
252c			4	154	56.8	21	20.15	22	5/16"
298		940	4	122	45.02	20.005	23.9	23.9	5/16"
299		M16	4	143	53.73	22.005	22.5	22.5	5/16"
307	V8,S4,RS4	6(8)	154	57.6	21.005	20	21.3	3/8"
307b	RS4 V6	6	154	56.8	21.01	20.12	21.92	5/16"
307c		6	154	56.8	20.005	20.12	22	5/16"
307g	RS4 V6	6	154	56.8	20.01	20.12	21.92	3/8"
307H	RS4 V6 5/16"	4	154	56.8	20	20.12	21.92	5/16"
307i	RS4 v6	6	150.8	56.8	21	20.12	21.92	5/16"
307j	RS4 V6 5/16"	9	152	56.8	21.005	20.12	21.92	5/16"
307L		6	152.5	56.8	21.009	20.12	21.92	5/16"
307m		6	157	56.8	21.01	20.12	21.95	5/16"
307k	RS4 V6	6	154	56.8	21.009	20.12	21.92	5/16"
345	142.5	4	142.5	50.6	22.005	24.95	24.95	3/8"
345b	138	4	138	50.6	17.01	24	18.5	3/8"
376	CC134	4	134	45	17	20	20	5/16"
462	GOLF 144 AXE DE21	4	144	50.6	20	24.9`	23.2	3/8"
578	125	4	125	45	20	23.95	23.95	5/16"

Prod Model:	as per your request
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	H Beam/ I Beam
Forming:	Forging or Full Machining
Condition:	New
Color:	Silver
Type:	Connecting Rod
Cylinder Number:	4-8

Nanjing Honghe precision forging Co., Ltd was established in 2004 which is located in famous historical city Nanjing Jiangsu province, only need less than 2 hours to Shanghai by high-speed rail.

The company has a registered capital of $740, 000 and specialized in manufacturing, producing, designing and researching precision forging parts for electric power, automobile, motorcycle, railway, shipping, mining, mechanical and so on. It covers more than 21, 000 square meters, 6000 square meters standard workshop.

Having 5 sets of forging production lines mainly include300T, 400T, 630T, 1600T friction presses, also 1 sets of free forging lines include some air hammers.

We had been passed ISO9001: 2008 and ISO/TS16949 quality management system, CAD/CAM system was implemented for design and fabrication of forging dies. We utilize effective inspection equipments to inspect every operation and detail from the raw material to the finished products, hence our quality is secured and reliable.

The products have been exported to Asian, Europe, South America, Africa etc, achieving client's prasise. Our clients contain Emerson, Ford Motor, Samsung, Energy China etc.

Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
