Basic feature:

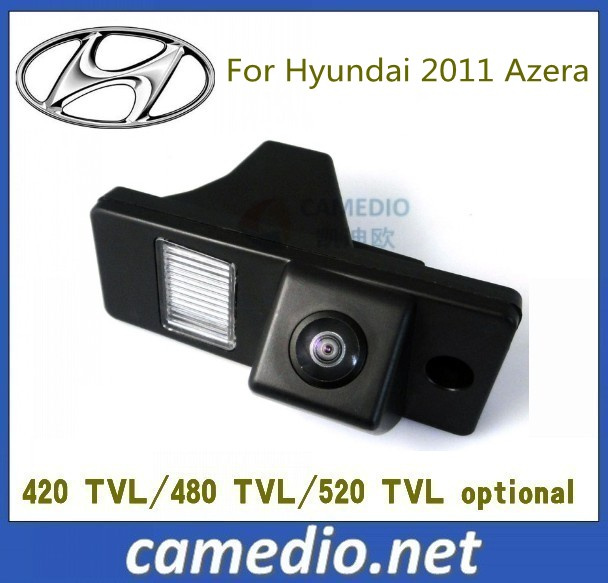

1)Special rear view car camera for Hyundai Azera
2) PC7070 480 TV lines CMOS in default
3) NTSC/ PAL
4)Waterproof design, weather-resist.
5)Super good night vision
6) Wide Voltage 9-24V
7) Accessories:6m video cable+1m power cable+CCD camera+user manual
8) Other kinds of image sensors optional: PC1030/PC7070/MT9V136
Specification:
Image sensor: PC7070 (standard one in default)
1. Effective pixels: 682*504 pixels
2. Video output: 1Vp_p± 10%
3. Scanning system: 2: 1 interlace
4. Minimum illumination: 0.01 Lux/F=1.2(0 Lux with IR on)
5. Operation temperature: -20° C - 75° C, RH 95% MAX
6. TV system: PAL/NTSC
7. Sensing area: 3.8 mm *2.9 mm
8. SNR: >47.2dB
9. Lens angle: 135° /170°
10. Resolution: 480 TV lines
11. Shutter speed: 1-1/10000
12. White balance: Auto
13. Waterproof: IP67/68
14. Power supply: Analog: 2.8V, HVDD: 2.8V, CVDD: 2.8V
15. Working temperature: -20° C - 70° C, RH 95% MAX
About us :
Camedio is one of the specialized manufacturers of car accessories located at Bao'an District ,Shenzhen ,China .With Good quality&competitive market price ,we have won many regular clients from over 100 countries , we are now looking forward to cooperating with more and more clients ,Welcome to contact us for more infos
Specification for different kind of image sensor:
| Image Sensor | Color CMOS PC7070 | Color MT9V136 | Color PC1089K |
| TV System | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Effective Pixels | 680*504Pixels | 720*576/480Pixels | 720(H)*652(V) |
| Horizontal resolution | 480TVL | 480TVL | 500TVL |
| Sening area | 4.08mm*3.12mm | 3.584mm*2.688mm | 3.584mm*2.688mm |
| Shutter speed | 1/60-1/5000 | 1-1/10000 | 1-1/10000 |
| Minimum Illumination | 0.05lUX/F=1.2(OLux with ON | 0.01Lux/F=1.2(OLux with OR ON) | 0.01Lux/F=1.2(Olux with OR ON) |
| Video output | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm |
| Power Supply | DC12V | DC12V | DC12V |
| Operating temperature | -20°C~75°C,RH 95%MAX | -20°C~75°C,RH 95% MAX | -20°C-75°C,RH 95% MAX |
| Storage temperature | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX |
| Lens angle | 170° | 170° | 170° |
| Waterproof | IP68 | IP68 | IP68 |
| White Balance | auto | auto |
