1. Brief Introduction:

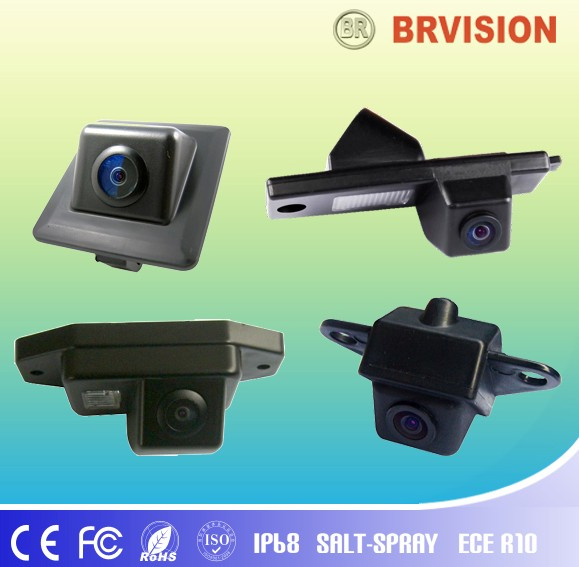

- License plate rear view camera,
- 1/4" CMOS color sensor,
- 170° view angle,
- 12V DC power input
2. Certificate:
- CE, FCC, Emark, ISO9001-2008
3. Quality Control:
- Ageing Test
- Waterproof Test
- Salt-spray Test
- Viberation Test
- Cable Swing Test
- High Pressure Immersion Water Test
- High Low Temperature Testing: -20C°-70C°
4. Key Specification:
- Image Device: 1/4" CMOS image sensor
- TV System: NTSC/PAL
- View Angle: 170°
- Waterproof: IP68
- Vibration Rate: 10G
- Resolution: 420TV lines
- 1.8mm waterproof lens
- Effective Pixels: 510*496pixels
- Sensing Area: 5.961mm*4.276mm
- Minimum Illumination: 0-01Lux
- Video Output: 1-0vp-p, 75Ohm
- Gamma Consumption: 0-45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Power Supply: DC12V
- Operating Temperature: -20° to +70° (RH95%Max.)
- Storage Temperature (Deg.C): -30~+80°(RH95%MAX.)
| model | BR-MNC02 |
| image sensor | 1/4" CMOS color sensor |
| min.illumination | Color:0.1Lux @(F1.2,AGC ON)
Black/white:0.2 Lux @ (F1.2,AGC ON) |
| shutter | 1/50(1/60)s - 1/10,000 s |
| lens | HD professional lens 3.6mm(6/8mm lens optional) |
| Day&Night | 24PCS IR LED with IR Cut |
| video compression | H.264 HighProfile, JPEG snapshot |
| bite rate | 100Kbps~6Mbps |
| max.image resolution | 1280*720 |
| frame rate | 50Hz:25fps (1280*720) 60Hz:30fps (1280*720) |
| image setting | Saturation, brightness and contrast are adjustable through IE browser or client. |
| storage | Network storage |
| intelligent alarm | Motion detection, video loss, cable break, IP address conflicts |
| protocol | TCP/IP,HTTP,DHCP,DNS,DDNS, PPPOE,SMTP,NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6 ) |
| basic | anti-flicker, dual-stream, heartbeat, password protection |
| net interface | One RJ45 10M/100M |
| operating condition | -20 to 70 degree, 90% or less(non-condensing) |
| Power supply | DC12V±10% |
| Protection range | IP68 |
BRVISION TECHNOLOGY CO., LTD is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products.
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera,wireless Module, dvr recorder camera and etc.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificates: CE, FCC, Emark, ISO9001-2008
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
