Obt Light Duty Rubber Torsion Axle with Mechanical Drum Brake
| Price: |
US $ 80/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
OBT light duty rubber torsion axle with mechanical drum brake
Advantages of Torsion Axles:
Durability: The cartridge construction offers superior resistance to abrasive road elements, increasing the life and durability of the axle. Because the cartridge is press fit inside the axle tube, it forms a water ltight seal, thus allowing the axle immersion without having the tube inside exposed to corrosion.
Smoother ride and longer life: The high quality proprietary formula rubber guarantees a smoother ride and longer life. The independent suspension allows each wheel to travel totally independent from the others. A smoother ride, less sway and reduced noise is achieved with the rubber suspension.
Progressive Torque: It increases carrying capacity as the lad is applied, allowing smooth ride even with an unloaded trailer.
Safer and stronger: The specially engineered one piece forged spindle arm creates a system which is safer and stronger than any welded unit. The axle tube acts like an extra cross memeber, adding strength and preventing frame twisting. The rubber cartridge is completely encapsulated inside the axle tube, so there are no pinch points.
Adjustable: The splined arm is adjustable for a range of starting angles to suit special applications. The axle can be built with various start angels to achieve desired trailer height.
Damping Control: Because of the rubber natural vibrations absorbing capabilities, no shock absorbers are required.
Easy replacement: Unlike welded systems the spindle arm can be removed easily for repair or replacement.
Quick installation: The axle assembly requires only four bolts to mount reducing installation time.
Maintenance Free: Because there is no metal-to-metal contact, there it eliminates the need for lubrication of the components. There are no suspension parts to wear out. (spring shackles, hangers, etc.)
Delivery: Built-to-suit axle system reduces lead times and inventory.
Warranty: OBT offers a five year warranty on components, that demonsttrates how confident they are with the suspension.
Specification:
| Model | Size | Capacity
(kg) | SC
(mm) | TR
(mm) | LP
(mm) | Axle
Tube
(mm) | Brake
Szie | Studs | P.C.D | B.C.D | Torque
arm
angle | Offset center
of the arm |
Torsion axle
with
Mechanical
drum brake | OBT-NX0.5 | 500 | 1300 | 1700 | 1825 | 60x60 | 8" | 5-M12
x1.5 | φ114.3 | / | 23° | 137 |
| OBT-NX0.75 | 750 | 1300 | 1700 | 1825 | 60x60 | 8" | 5-M12
x1.5 | φ114.3 | / | 23° | 137 |
| OBT-NX1.0 | 1000 | 1300 | 1700 | 1825 | 70x70 | 8" | 5-M12
x1.5 | φ114.3 | / | 23° | 137 |
| OBT-NX1.5 | 1500 | 1300 | 1730 | 1855 | 80x80 | 10" | 6-M12
x1.5 | φ139.7 | φ64 | 23° | 160 |
| OBT-NX2.0 | 2000 | 1300 | 1730 | 1855 | 90x90 | 10" | 6-M12
x1.5 | φ139.7 | φ108 | 23° | 160 |

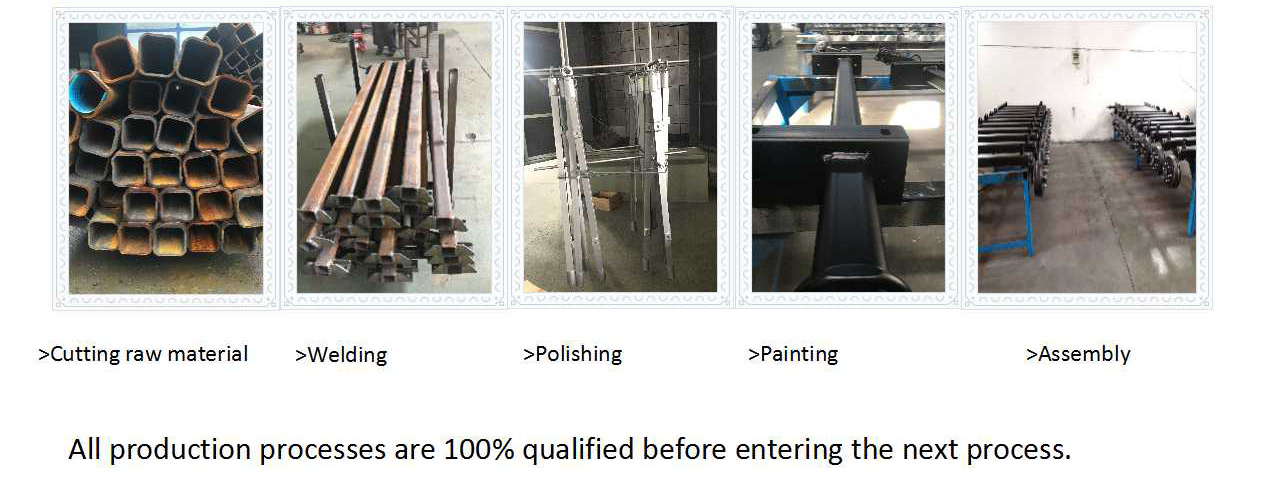

Production photos:
Our packing:

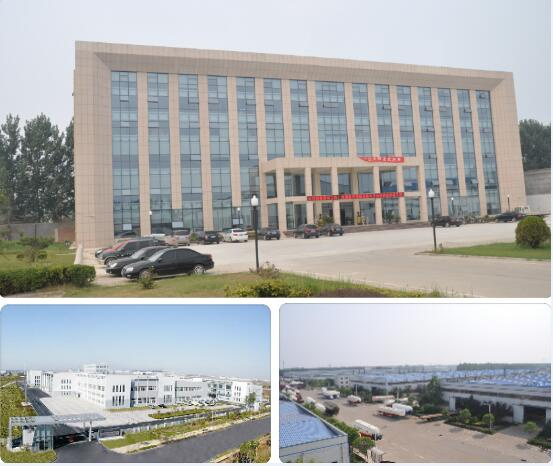

Our Company
OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007,we merged the company CSRS for axle and suspension ,built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013,special for tires, in order to expand our business areas,
we built our branch company SCG in Singapore in 2014,and also in 2014,we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.
OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in vehicle and trailer manufacturing, axle, suspension system, Tyre , rims, landing gear and fifth wheel etc. parts production and international trade fields.
With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell,BP,ExonMobil, Singapore Fire,Canada Fire, and Turkey moving company,etc.
We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service
With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service".Our Certifications
FAQ1,Terms of payment?30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished
2,What's your MOQ?
One unit trailer or truck.We suggest two trailers one time to save the freight.
3,Can you satisfy my special requirement?
Definitely! We can discuss the practicable plan and produce it as your request.4,What's your warranty?All of our trailers are produced strict with ISO standard,you needn't worry about it.Certainly,if your trailer parts wear out,we can provide suitable parts for you.CONTACT INFORMATION Tel:0086-532-8099 7318
Fax:0086-532-8099 7319
http://www.obtvehicle.com
Address:No.20 Zhuzhou Road Qingdao,China
| Prod Model: |
OBT-Torsion axle |
| Loading Weight: |
500kg-1800kg |
| PCD: |
114.3/139.7 |
| Treatment: |
No |
| Truck: |
1600-2400mm |
| Whole: |
Yes |
| Half: |
Yes |
| Bolt: |
4/5/6 |
| Mqo: |
20 |
| Capacity: |
500kg |
