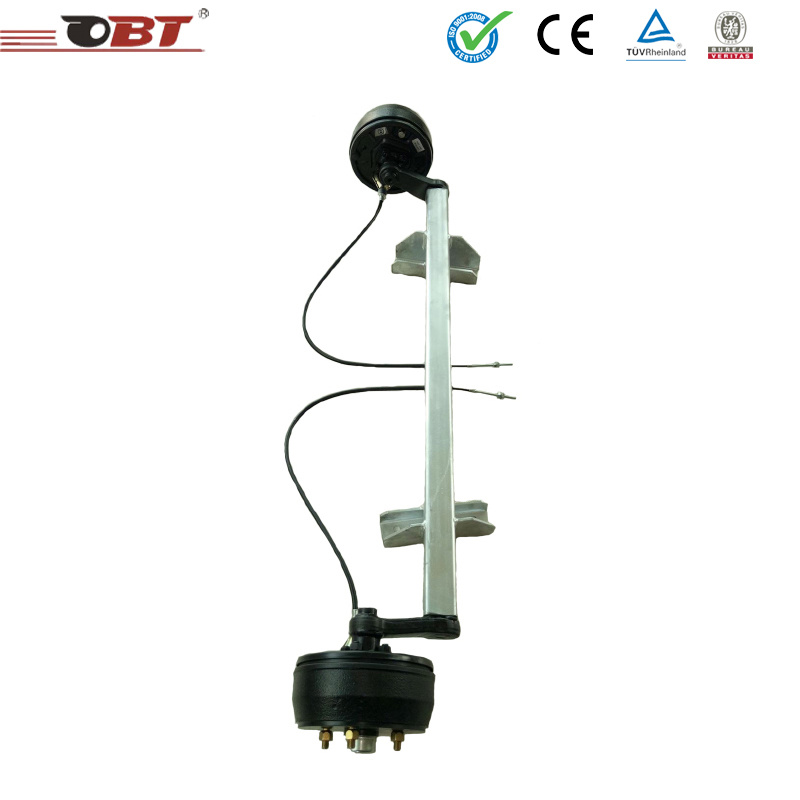

Cheap Price 2ton Obt Semi Trailer Rubber Torsion Axle
Price: |
US $ 115/Piece |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
2ton Obt Semi Trailer Torsion AxleAdvantages of Torsion Axles:Durability: The cartridge construction offers superior resistance to abrasive road elements, increasing the life and durability of the axle. Because the cartridge is press fit inside the axle tube, it forms a water ltight seal, thus allowing the axle immersion without having the tube inside exposed to corrosion.
Smoother ride and longer life: The high quality proprietary formula rubber guarantees a smoother ride and longer life. The independent suspension allows each wheel to travel totally independent from the others. A smoother ride, less sway and reduced noise is achieved with the rubber suspension.
Progressive Torque: It increases carrying capacity as the lad is applied, allowing smooth ride even with an unloaded trailer.
Safer and stronger: The specially engineered one piece forged spindle arm creates a system which is safer and stronger than any welded unit. The axle tube acts like an extra cross memeber, adding strength and preventing frame twisting. The rubber cartridge is completely encapsulated inside the axle tube, so there are no pinch points.
Adjustable: The splined arm is adjustable for a range of starting angles to suit special applications. The axle can be built with various start angels to achieve desired trailer height.
Damping Control: Because of the rubber natural vibrations absorbing capabilities, no shock absorbers are required.
Easy replacement: Unlike welded systems the spindle arm can be removed easily for repair or replacement.
Quick installation: The axle assembly requires only four bolts to mount reducing installation time.
Maintenance Free: Because there is no metal-to-metal contact, there it eliminates the need for lubrication of the components. There are no suspension parts to wear out. (spring shackles, hangers, etc.)
Delivery: Built-to-suit axle system reduces lead times and inventory.
Warranty: OBT offers a five year warranty on components, that demonsttrates how confident they are with the suspension.
Specification: Model | Size | Capacity (kg) | SC mm | TR mm | LP mm | Axle Tube mm | Brake Szie | Studs | P.C.D | B.C.D | Torque arm angle | Offset center of the arm |
Torsion axle with Mechanical drum brake | OBT-NX0.5 | 500 | 1300 | 1700 | 1825 | 60x60 | 8" | 5-M12x1.5 | φ114.3 | / | 23° | 137 |
OBT-NX0.75 | 750 | 1300 | 1700 | 1825 | 60x60 | 8" | 5-M12x1.5 | φ114.3 | / | 23° | 137 |
OBT-NX1.0 | 1000 | 1300 | 1700 | 1825 | 70x70 | 8" | 5-M12x1.5 | φ114.3 | / | 23° | 137 |
OBT-NX1.5 | 1500 | 1300 | 1730 | 1855 | 80x80 | 10" | 6-M12x1.5 | φ139.7 | φ64 | 23° | 160 |
OBT-NX2.0 | 2000 | 1300 | 1730 | 1855 | 90x90 | 10" | 6-M12x1.5 | φ139.7 | φ108 | 23° | 160 |
Torsion axle with Mechanical Disc brake | OBT-NP0.5 | 500 | 1300 | 1700 | 1825 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ60 | 23° | 137 |
OBT-NP0.75 | 750 | 1300 | 1700 | 1825 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ60 | 23° | 137 |
OBT-NP1.0 | 1000 | 1300 | 1700 | 1825 | 70x70 | 10" | 5-M12x1.5 | φ114.3 | φ60 | 23° | 137 |
OBT-NP1.5 | 1500 | 1300 | 1730 | 1855 | 80x80 | 10" | 6-M12x1.5 | φ114.3 | φ60 | 23° | 160 |
OBT-NP2.0 | 2000 | 1300 | 1730 | 1855 | 90x90 | 12" | 6-M12x1.5 | φ139.7 | φ84 | 23° | 160 |
Torsion axle with Hydraulic drum brake | OBT-NYG0.75 | 750 | 1300 | 1700 | 1825 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ60 | 23° | 137 |
OBT-NYG1.0 | 1000 | 1300 | 1700 | 1825 | 70x70 | 10" | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 |
OBT-NYG1.5 | 1500 | 1300 | 1730 | 1855 | 80x80 | 10" | 6-M12x1.5 | φ139.7 | φ64 | 23° | 160 |
OBT-NYG2.0 | 2000 | 1300 | 1730 | 1855 | 90x90 | 10" | 6-M12x1.5 | φ139.7 | φ108 | 23° | 160 |
Torsion axle with Hydraulic Disc brake | OBT-NYP0.5 | 500 | 1300 | 1700 | 1805 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 |
OBT-NYP0.75 | 750 | 1300 | 1700 | 1805 | 60x60 | 10" | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 |
OBT-NYP1.0 | 1000 | 1300 | 1700 | 1805 | 70x70 | 10" | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 |
OBT-NYP1.5 | 1500 | 1300 | 1730 | 1835 | 80x80 | 10" | 6-M12x1.5 | φ114.3 | φ64 | 23° | 160 |
OBT-NYP2.0 | 2000 | 1300 | 1730 | 1835 | 90x90 | 12" | 6-M12x1.5 | φ139.7 | φ84 | 23° | 160 |
Torsion axle without brake | OBT-NW0.5 | 500 | 1300 | 1700 | 1825 | 50x50 | / | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 |
OBT-NW0.75 | 750 | 1300 | 1700 | 1825 | 60x60 | / | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 |
OBT-NW1.0 | 1000 | 1300 | 1700 | 1825 | 70x70 | / | 5-M12x1.5 | φ114.3 | φ64 | 23° | 137 |
OBT-NW1.5 | 1500 | 1300 | 1730 | 1855 | 80x80 | / | 6-M12x1.5 | φ114.3 | φ64 | 23° | 160 |
OBT-NW2.0 | 2000 | 1300 | 1730 | 1855 | 90x90 | / | 6-M12x1.5 | φ139.7 | φ84 | 23° | 160 |

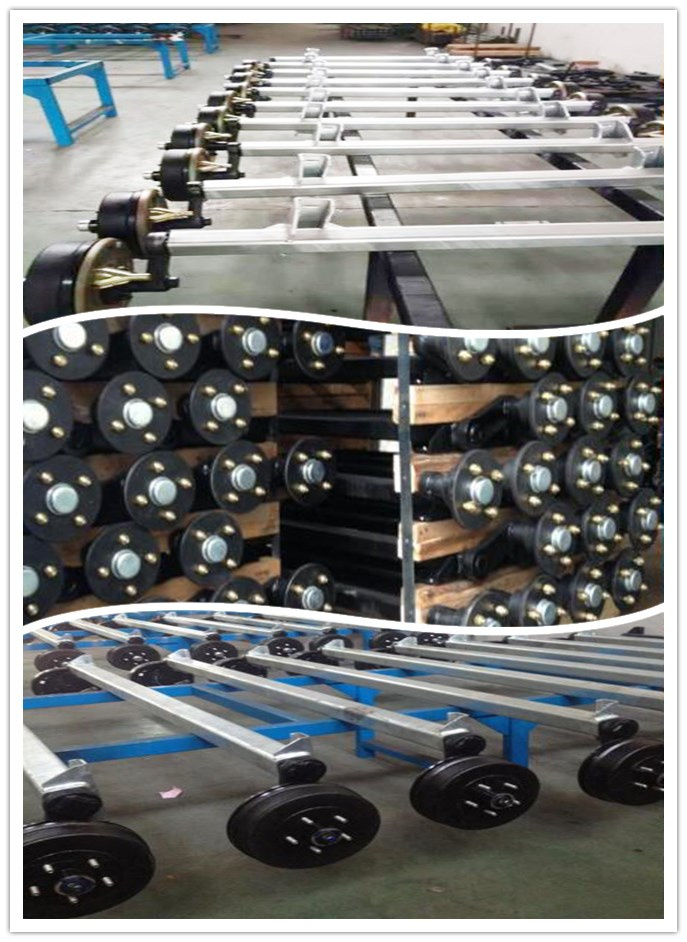

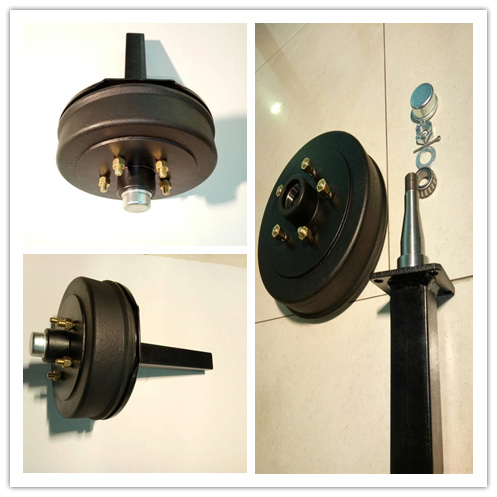

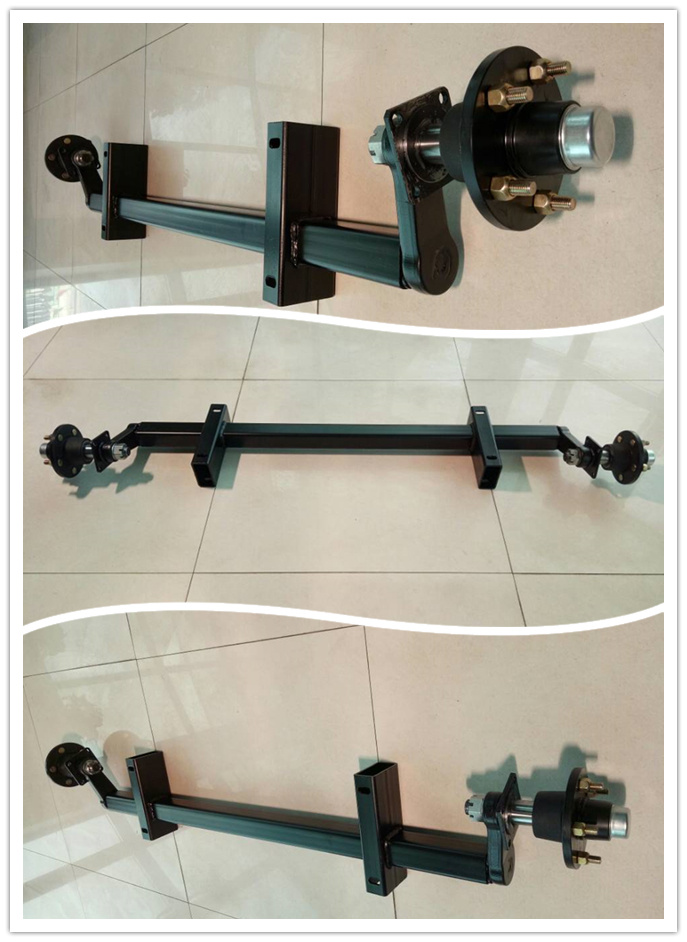

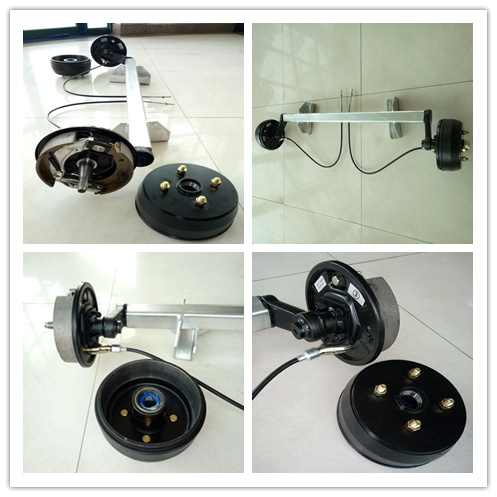

Products photos:

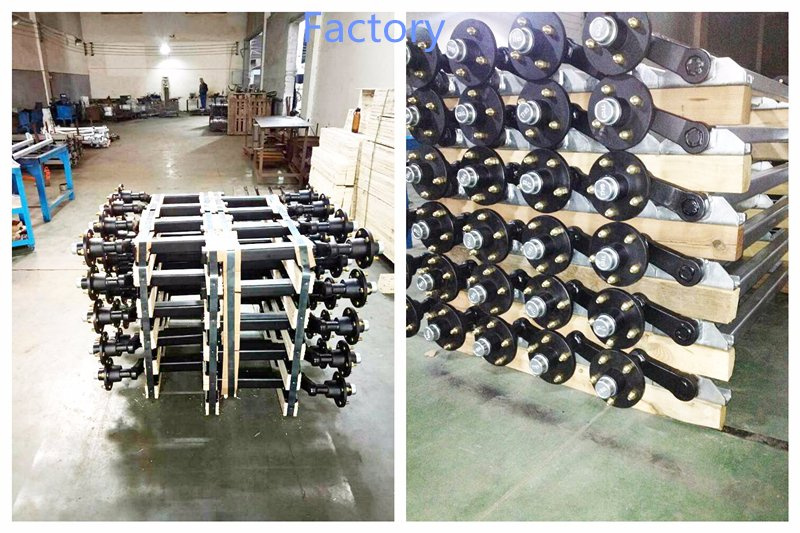

Factory photos:
Please contact:
Prod Model: |
2ton Obt Semi Trailer Torsion Axle |
Brand: |
Obt® |
Size: |
Optional |
Max Payload: |
2ton |
Sc (mm): |
1300 |
Product Name: |
Cheap Price 2ton Obt Semi Trailer Rubber Torsion a |
Axle Tube (mm): |
Optional |
Tr(mm): |
1700/1730 |
Studs: |
5-M12X1.5/6-M12X1.5 |
Brake Szie: |
8/10/12 |
Usage: |
RV/ATV/Yacht/Boat/Camp/Harley Trailer |
Type: |
Torsion Axles |
