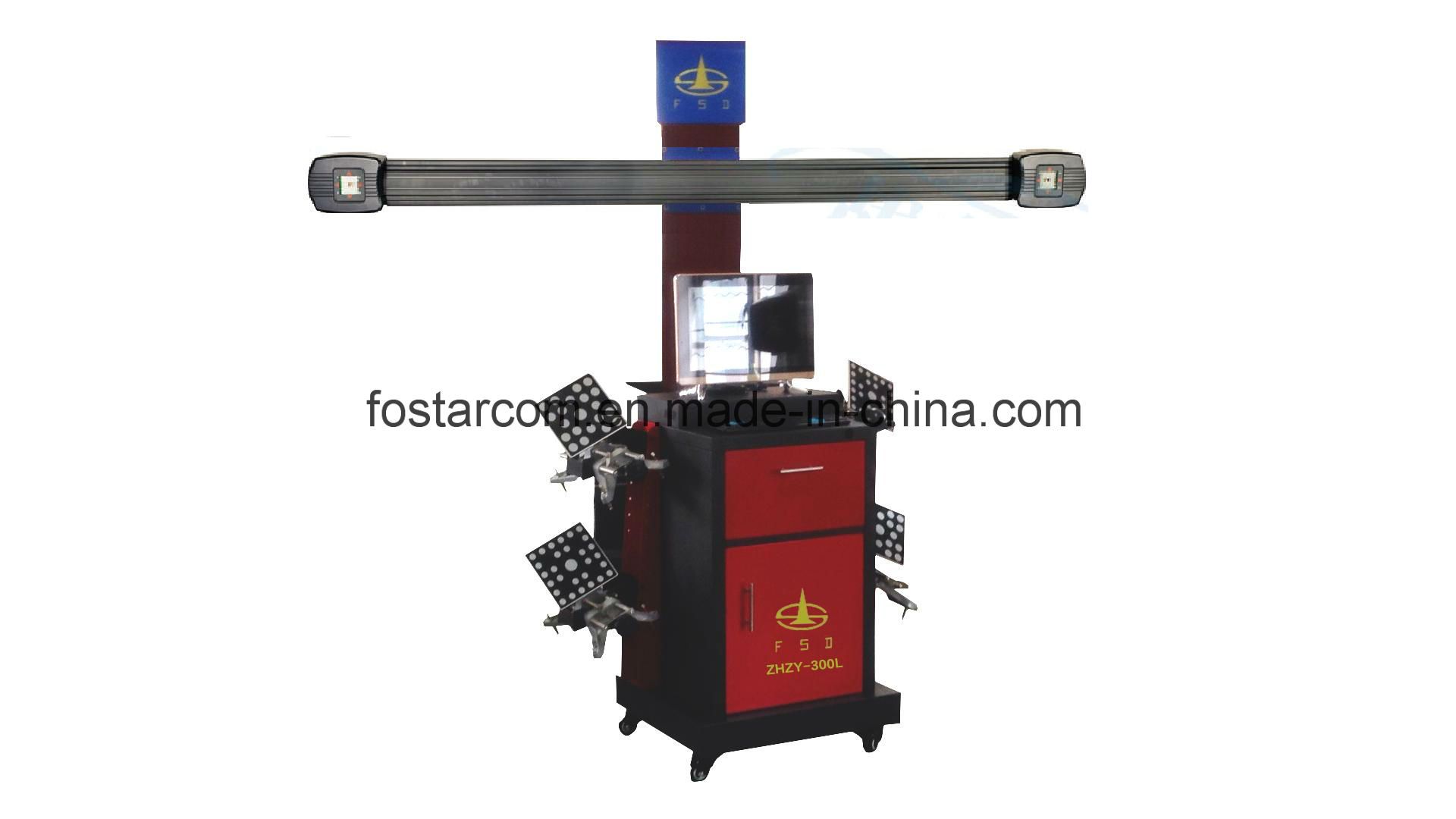

No push cart type 3D four wheel positioning instrument: ZHZY-300L
Zhuhai fostar Machinery Equipment Co., Ltd., with advanced technology and software technology, in the research and development of 3D four wheel positioning, launched a W series styles without need to cart series of 3D four wheel positioning device.
Equipment introduction:
ZHZY-300L positioning instrument just under the static state of the car can accurately detect all technical parameters of the four round of the car, its accuracy of 0.01 mm and 0.01 degrees.
The requirements of this machine environment are as follows:
Temperature: -35-50 degree
Relative humidity: < 85%
Product features
1 camera uses the import original Sony camera, camera and lens (500 million, the camera response speed and performance in the industry supergroup, 30 per photo speed, static detection technology is applied to machine precision in detecting data is less than 0.1 mm and 0.1 degrees.
2 machine software for independent research and development, support a variety of standard plate reflectors, reflective panels support black interchangeability.
3 standard reflector imported super reflective film, made by 7075T6 aerospace aluminum material, durable. This Guan Jian warranty for five years.
The 4 beam for Aluminum Alloy, column steel self adjustable height, easy to use.
5 standard: crossbeam assembly, reflector assembly and box assembly, computer assembly.
6 computer display standard: 19 inch. (the printer and the speaker are selected by the customer)
Enterprise advantage:
1 independent intellectual property rights, future opportunities for sustainable development.
2. Its 3D four wheel positioning main components supporting brand are companies in which the company's products and brands, such as cabinet, aluminum alloy column, aluminum alloy beams, electrical components, computers, televisions, monitors, a reflector and fittings, so the quality control in full compliance with ISO9001 quality system standards and CE standard export.
Product performance:

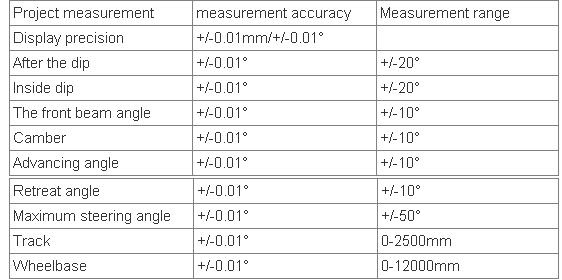

1 using the world's most advanced three-dimensional image measurement technology, the accuracy of 0.01, measurement of the car to achieve a variety of data angle of 0.1 degrees or less than 0.1 mm;
2 measurement of long wheelbase and a variety of global and real estate cars and trucks;
3 this device supports the installation of the minimum installation distance 1.4m, maximum installation distance 3.1m (distance between the camera to the front wheel steering wheel center line between the center of the ground distance), the farther the distance, the better;
4. The equipment for large trucks (Auman, Steyr, hanging, etc.) can not be the direct use of the existing fixture positioning, can only be used increase truck fixture wheel alignment, not including according to the dimensional series products and transit and coaster middle bus. The final explanation right belongs to the Zhuhai fostar machinery equipment Co., Ltd.;
5 because the software technology of anteriority: This equipment adopts the reflection of various forms of target for customer choice, which reflect the different patterns of different varieties of the target of choice for customers, supporting four standard plate like to distinguish around in the form of high-end facilities for four in the same size with the reflection properties of swap targets the machine adopts the imported SONY high-speed photography system, the low temperature performance of the camera ranks the first in the same industry, the equipment can be minus 35 degrees to 50 degrees above zero within the scope of work, the working performance of the camera ranked first in the same industry, phase machine to 30 photos per second speed camera and computer analysis the data transmission signal, software to remove the reflecting plate to support a variety of reflector and a variety of patterns, while supporting the cart and cart system, so the original sales of products such as the need to update a guest Do not need to push the system can be achieved, the software vision calibration accuracy: 2 microns;
6. The machine factory before a calibration, without the needs of re calibration, reflector using high-quality imported 3M reflective material film by special processing production and manufacturing processes, the shell with rugged aerospace aluminum alloy materials in Al-7075;
7. According to the different division of different matching pieces and box column for different varieties of brand series product model, which fushida series products standard supporting for four plates are the same size and significant characteristics for single display and dual display;
The 8 Zhuhai brand as the reflector before using the small after the formation of large series of products not characteristic;
9 among them, the Zhuhai war peak brand using black series of reflective board to form its unique features of the machine;
10. Software is easy to operate, 3D display operation steps, camera detection adjustable mode. According to different site light can turn on the camera display debugging interface to increase and decrease the camera gain and a brightness value to improve the accuracy of the machine itself.
11 best camera and optical system in the industry;
12 can provide multi language multi language software;
13 automatic definition of the model database, fast search;
14 work four point round clip for standard matching: 10-23";
Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
