Night Vision Vehicle CCD Heavy Duty Camera with IR for Truck, Bus, Camping, Van, Transportation, Commercial Vehicl

Name: Night Vision Vehicle CCD Heavy Duty Camera with IR for Truck, Bus, Camping, Van, Transportation, Commercial Vehicl
Brand: ibuyautoparts.com
SKU: 692170232
Availability: InStock
Rating: 4.3 (146 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

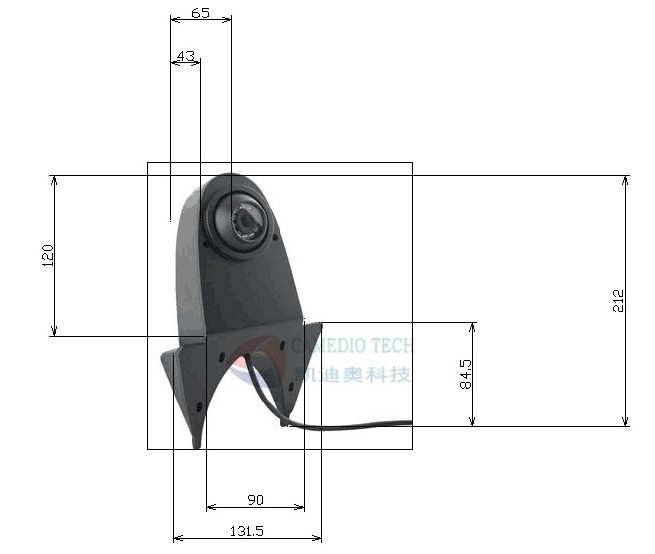

12-24V vehicle CCTV camera for side view

IR Night Vision Car Side Camera

Color CCD 1/4 Sharp 420TVL

Waterproof IP68

2. Technical Data

Model No.: Night Vision Car Camera CM-630

Product Abstract:

Waterproof Rate: IP68

Super wide angle: 120°

Working voltage: 12V or 24V optional

Sensor: Color CCD

Resolution: 420 TV lines

Video format: PAL / NTSC optional

Lens: F=2.5mm

Lens Angle: 120°

Infrared LED light: 9PCS

IR Distance: 10m

Waterproof Rate: IP68

Shell material: Aluminum alloy

Bracket material: Nylon fabric

Dustproof, waterproof, hydrochloric acid prevention, explosion prevention

Mic: Collects the environmental sound around the camera

Mirror & non-mirror images option (depending on the chips)

Self heating: The cameras will entry the self-heating mode When the environmental working temperature is lower than -5° C. And it wills automatic stop heating when the temperature reaches 30° C.

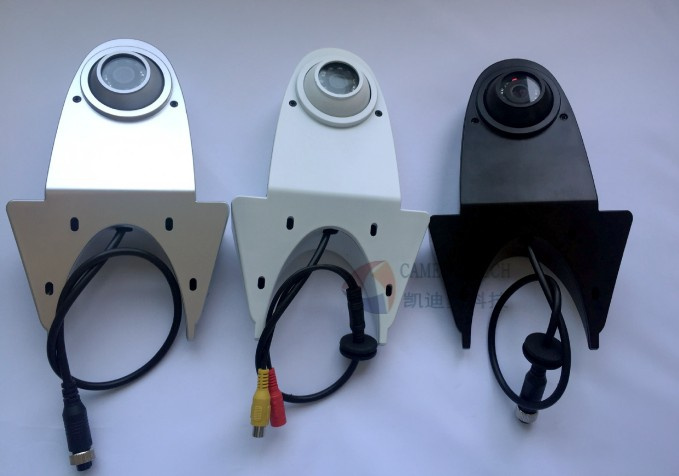

Superficial colors are optional: Black, white, silver

3. Packing Detail

Net Weight: 0.4KG
Packing: 20 PCS per carton box

4. Car Make
Excavator, Crane, Truck, Bus, Concrete mixer, Lorry, Farm vehicle, Fire truck, Sedan, RV, Vessel, fire truck, Farm Tractor, Trailer, Trailer Truck

All Vehicle backup, rear view, side view.

Type	Side View/Rear View
Sensor	1/4 Sharp CCD
Resolution:	N:510 × 492 pixels P: 500 × 582 pixels
Lens:	2.5mm
Min illumination:	0Lux (LED ON)
IR led:	9 pcs
Night Vision distance:	3 5ft
Waterproof	IP6 8
View angle:	120 °
Power voltage:	12V
Operation Temp.:	-20 °C ~+70 °C

Prod Model:	CM-630
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor:	Sharp CCD/Sony CCD
Color:	Black/White/Silver
Resolution:	420/480 Tvl Optional
IR Lights:	9PCS
Voltage:	12/24V Optional
Connector:	RCA/Aviation Optional
Power: 200mA:	200mA
Car Make:	Excavator, Crane, Refus, Truck, Bus, Concrete Mixe
Interface:	RCA
Waterproof Grade:	IP68
Definition:	480TV Lines/560/600 TV Lines Optional
Chip:	Sharp CCD/Sony CCD
