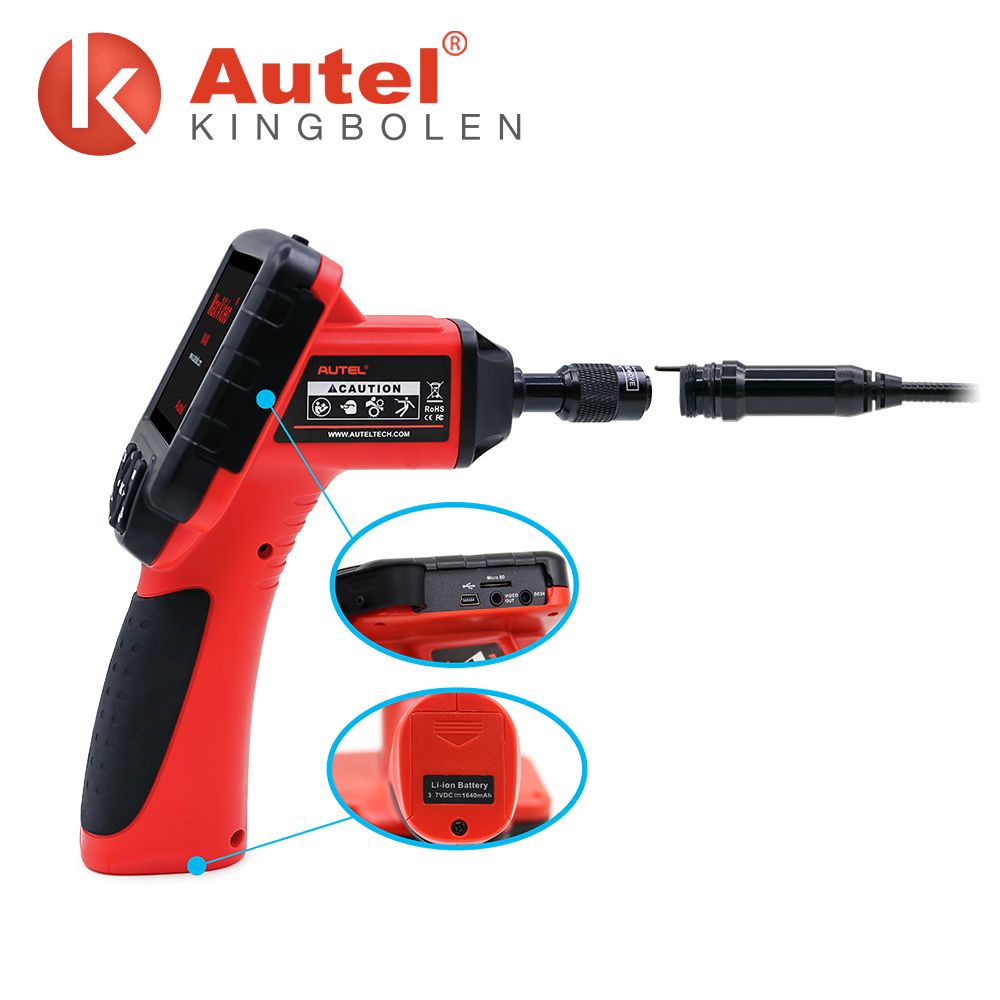

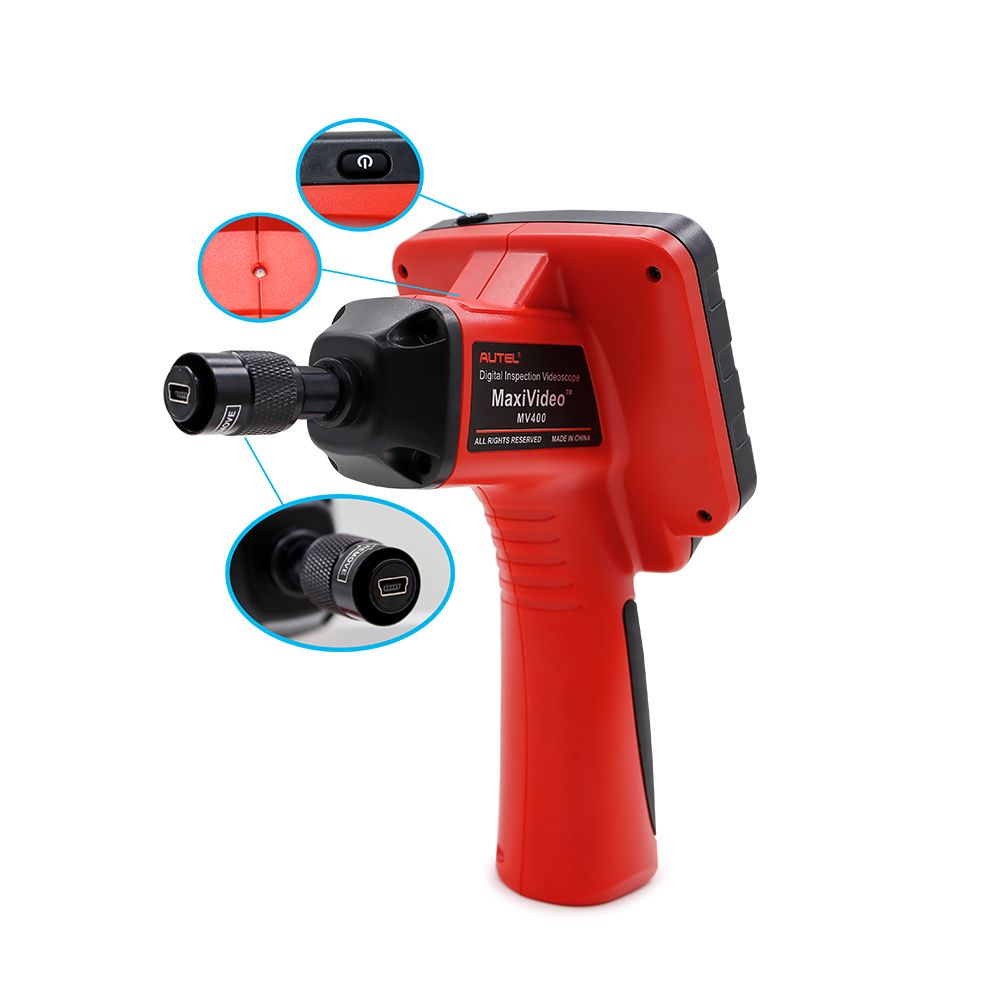

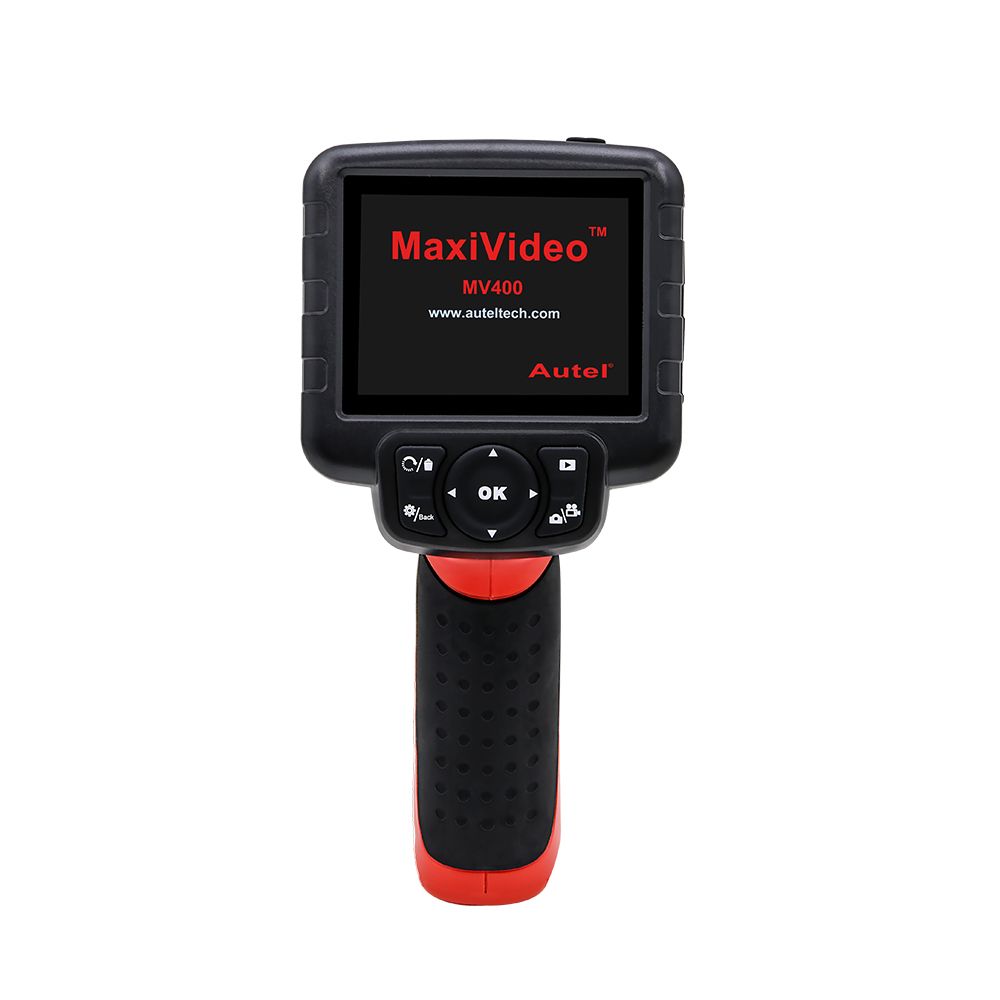

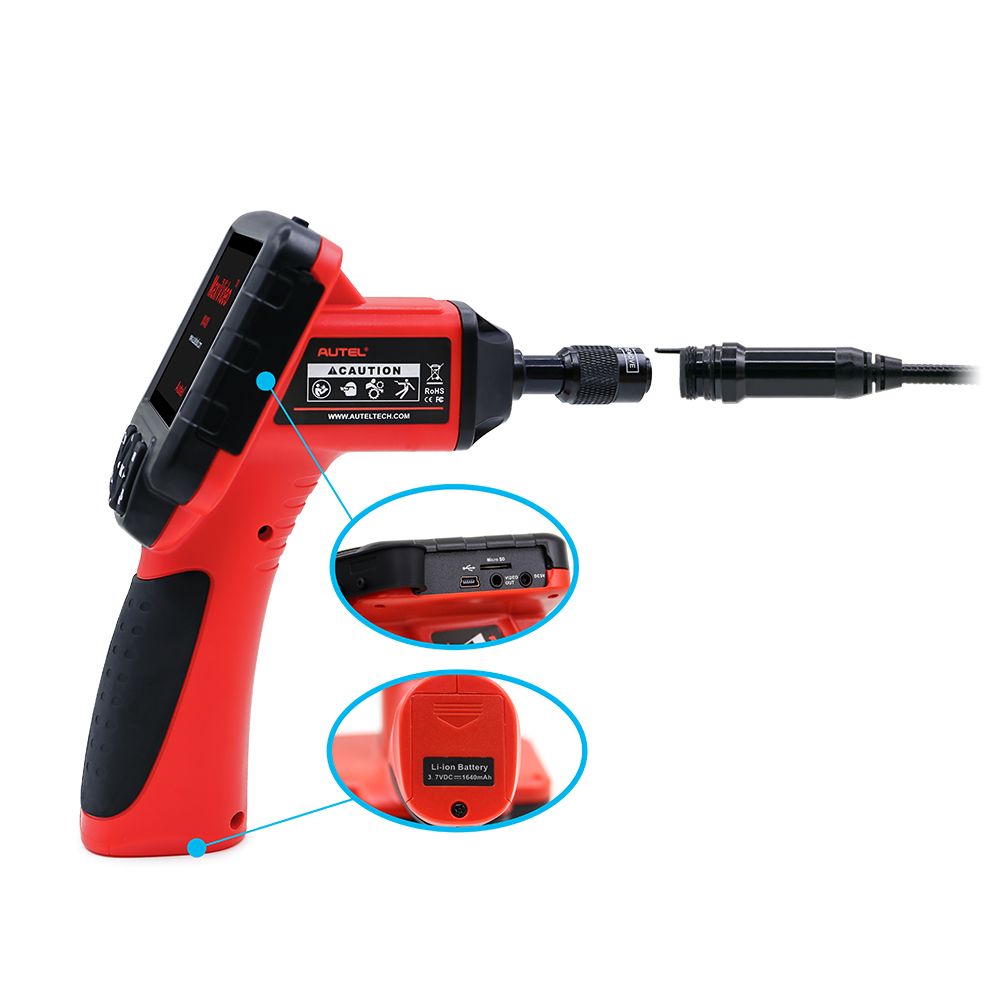

Autel Maxivideo MV400 digital videoscope with 8.5mm diameter imager head
This premier Autel MaxiVideo MV400 digital videoscope is an ideal tool for examining difficult- to- reach areas normally hidden from sight. It features the ability to record digital still images and MPEG2 or MPEG1 videos either on its internal flash memory or on the removable Micro SD Card (Optional). The ergonomic tool not only features a 3.5â€⊃3; full color LCD screen, auto focus and viewing capacity as close as 1â€⊃3; with crystal clear output, but also offers the capability to stream digital video directly to a PC. The Multipurpose Videoscope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.
Features
Records and plays back still images and video clips3.5'' high resolution full color LCD display (320×240)Easy-to-use, multi-language interfaceWide camera angle for images with 640×480 resolutionWith optional removable Micro SD cards, saves images and videos to take with anywhereOn-screen horizontal/vertical reverse5x digital zoom for increased viewingMini USB connector for uploading images and videos to a computerNarrow probe diameter available in either 8.5mm(0.33â€⊃3;) or 5.5mm(0.22â€⊃3;) and fits most spark plug holesWhite LED to illuminate the inspection area, with illumination controlViews objects as close as 1â€⊃3;Oil and scratch resistant tempered glass lens1M (39.4â€⊃3;) semi-rigid, but flexible watertight shaftBuilt-in rechargeable Li-ion battery with up to 3-4 hours of continuous useErgonomic and durable tool housingOne-year limited warranty Specifications
Recommended useIndoorOptimal viewing Distance3/8'' to 12'' (0.95cm to 30cm) with 8.5mm diameter imager headImage captureJPG images (640×480) AVI videos (320 x 240)Screen type display3.5'' TFT LCDDisplay resolution320 x 240Power supplyBuilt-in rechargeable lithium-ion battery pack (3.7V/1640 mAh)Tested battery life3-4 hours of continuous useDimensions199 x 100 x 178mm (7.83â€⊃3; x 3.94â€⊃3; x 7.0â€⊃3;)Recording mediumMicro SD card (Micro SD card is optional and not included)Imager head5.5mm (0.22â€⊃3;) is optional.WaterproofImager head and cable to 3m (10â€⊃2;)Additonal portsUSB, video out (TV-out) portOperating temp.Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C)Storage temp.-4°F to 158°F (-20°C to 70°C)Video outputRCATV outNTSC, PAL

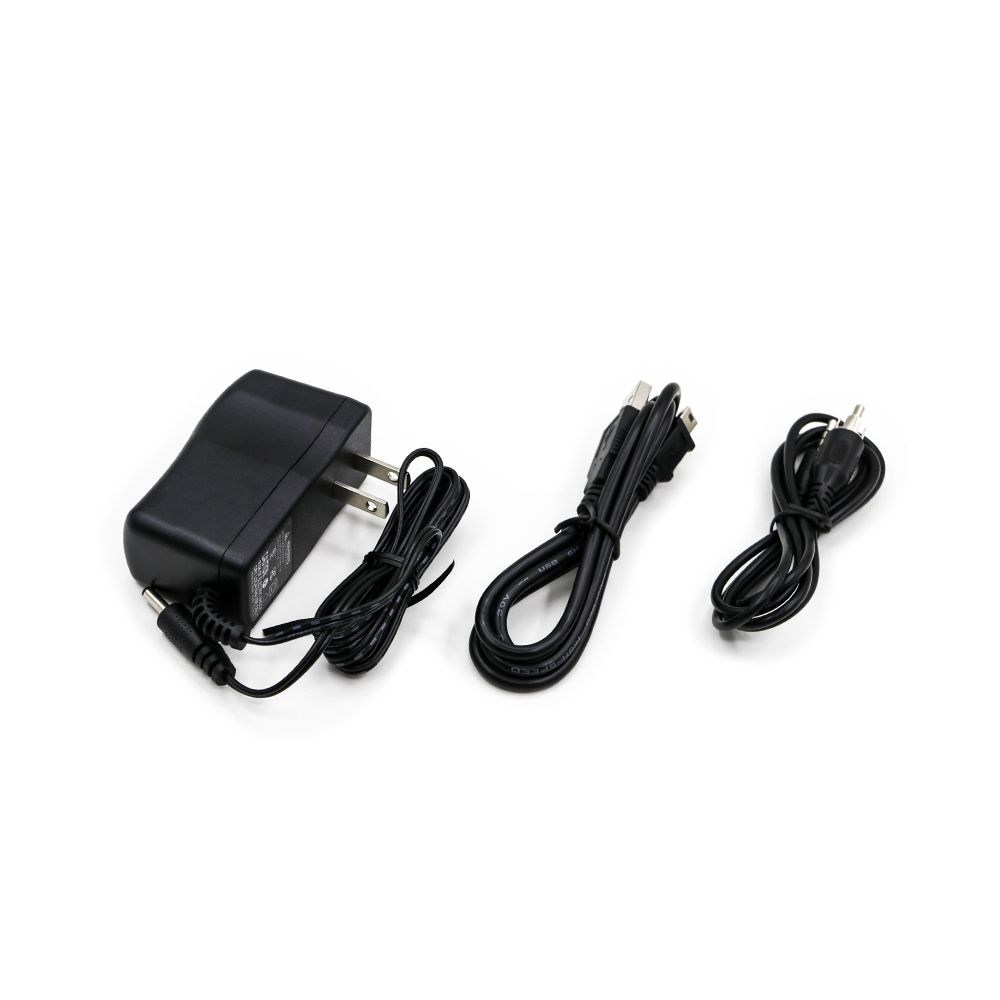

Accessories1 x User’s manual1 x Protective carrying case1 x Imager head and cable (8.5mm is standard)1 x Magnet ,hook and mirror (optional)1 x Charger 1 x USB cable1 x Video out-cable ( TV-out cable)
Accessories
1 x User’s manual
1 x Protective carrying case
1 x Imager head and cable (8.5mm is standard)
1 x Magnet ,hook and mirror (optional)
1 x Charger
1 x USB cable
1 x Video out-cable ( TV-out cable)
