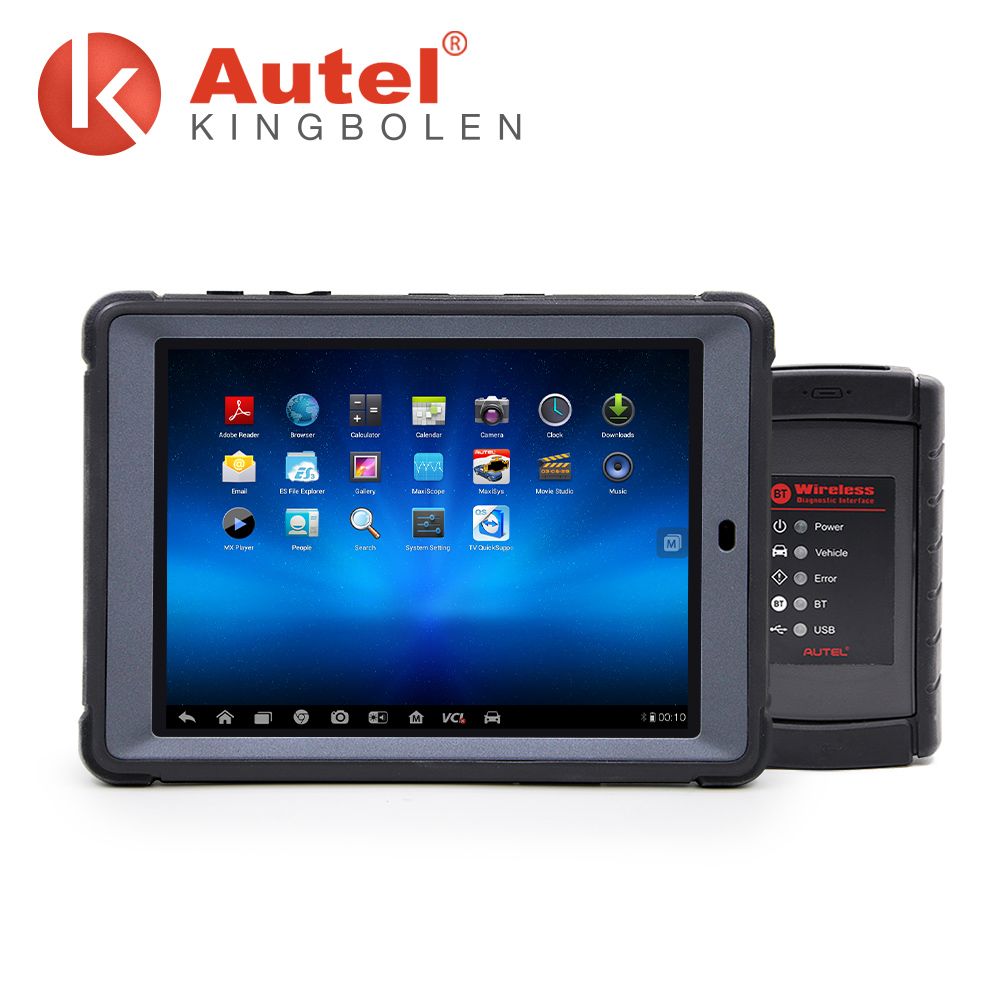

Autel MaxiSys Mini MS905 Automotive Diagnostic and Analysis System with LED Touch Display
The MaxiSys Mini MS905 is the ideal solution to manage your repair jobs in one mobile and smarter wireless tool. MaxiSys Mini MS905 has been developed for customers looking for a tool with ultra mobility and modern design while still delivering ultimate performance.
Language: English ONLY

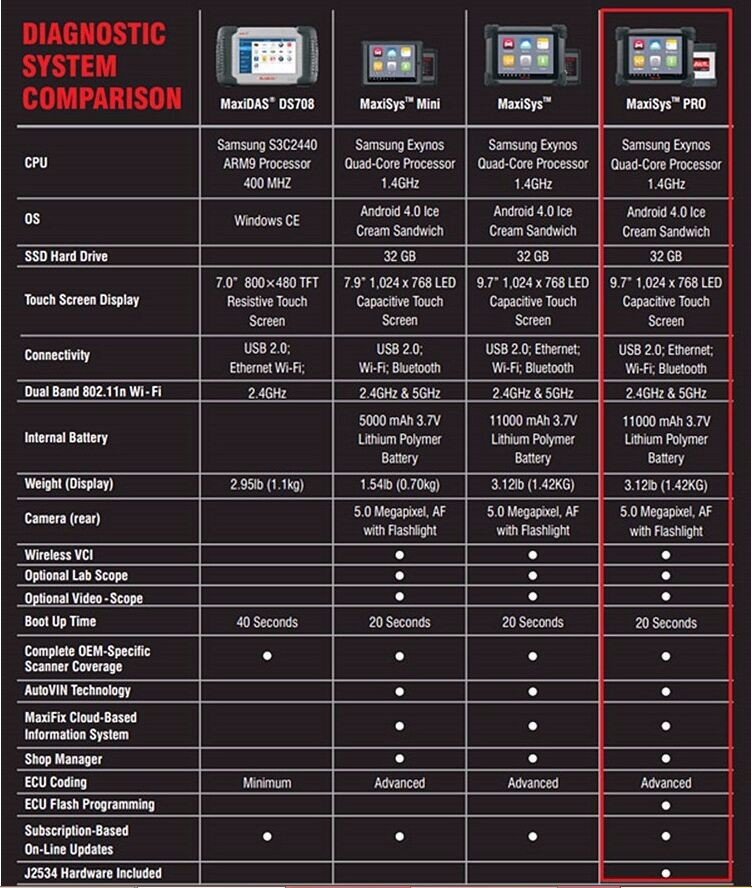

Comparison between MS905, MS908P and MS908
Autel MaxiSys Mini MS905 Features and Function:
1 . 7.9" 1,024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
2 . Extraordinarily powerful Cortex-A9 quad-core processor
3 . Internal reliable and fast 32GB Solid State Drive for better performance
4 . Built-in 5-megapixel rear camera with autofocus and flashlight
5 . Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
6 . Unique shop tough ergonomic design features strong rubber protection and housing;
7 . Built-in rechargeable lithium-ion battery for up to 5 hours of continuous operation
8 . USB, audio and auxiliary ports make it easy to connect accessories
9 . The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth
10. Open source Android Operating System for fast boot-up and multitasking
11. Easy and intuitive navigation makes finding what you need simple and fast
12. Extensive vehicle coverage for more than 80 vehicle makes from US, Asian and European
13. Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
14. Displays live data in text, graph, analog and digital gauge for easy data review and analysis
15. Configures display options, sets triggers, records and playbacks results with one touch
16. Records and playbacks live data to pinpoint troubles of sensors and components
17. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
18. Remote technical support for convenient demonstration, training and increased customer satisfaction
19. Prints out recorded data anytime and anywhere with Wi-Fi technology
20. Automatic Wi-Fi updates available in new software releases
Autel MaxiSys Mini MS905 Hardware
1) Extraordinarily powerful Cortex-A9 quad-core processor
2) 7.9" 1,024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
3) Internal reliable and fast 32GB Solid State Drive for better performance
4) Built-in 5-megapixel rear camera with autofocus and flashlight
5) Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
6) Unique shop tough ergonomic design features strong rubber protection and housing;
7) Built-in rechargeable lithium-ion battery for up to 5 hours of continuous operation
8) USB, audio and auxiliary ports make it easy to connect accessories
9) The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth
MaxiSys Mini Software:
1.Open source Android Operating System for fast boot-up and multitasking
2.Easy and intuitive navigation makes finding what you need simple and fast
3.Extensive vehicle coverage for more than 80 vehicle makes from US, Asian and European
4.Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
5.Displays live data in text, graph, analog and digital gauge for easy data review and analysis
6.Configures display options, sets triggers, records and playbacks results with one touch
7.Records and playbacks live data to pinpoint troubles of sensors and components
8.Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
9.Remote technical support for convenient demonstration, training and increased customer satisfaction
10.Prints out recorded data anytime and anywhere with Wi-Fi technology
Automatic Wi-Fi updates available in new software releases
Autel MaxiSys Mini MS905 Specification:
Operating System: AndroidTM 4.0, Ice Cream Sandwich
Processor: Samsung Exynos Quad-Core Processor 1.4GHz
Memory: 2GB RAM & 32GB On-board Memory
Display: 7.9" LED capacitive touch screen with 1024x768P resolution
Connectivity: Ethernet: RJ45 Ethernet Connection Cellular: 3G/4G module: WCDMA
Camera (rear): Rear-facing, 5.0 Mexgapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack
Power and Battery: 5000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power
Power Consumption: 3.9 W
Input Voltage: 12 V (9-24 V)
Operating Temperature: -10 to 55 C (14 to 131 F)
Storage Temperature: -20 to 70 C (-4 to 158 F)
Housing: Strong plastic housing with protective rubber boot
Dimensions (W x H x D): 221 mm (8.7") x 160 mm (6.3") x 20 mm (0.78")
Weight: NW: 0.67 kg (1.48 lb), MaxiSys Mini GW: 8.0 kg (17.6 lb)
Packing list:
1. Main part
MaxiSys Mini Main unit
MaxiSys Mini Case
Quick reference guide
Lighter Fuse
Main cable

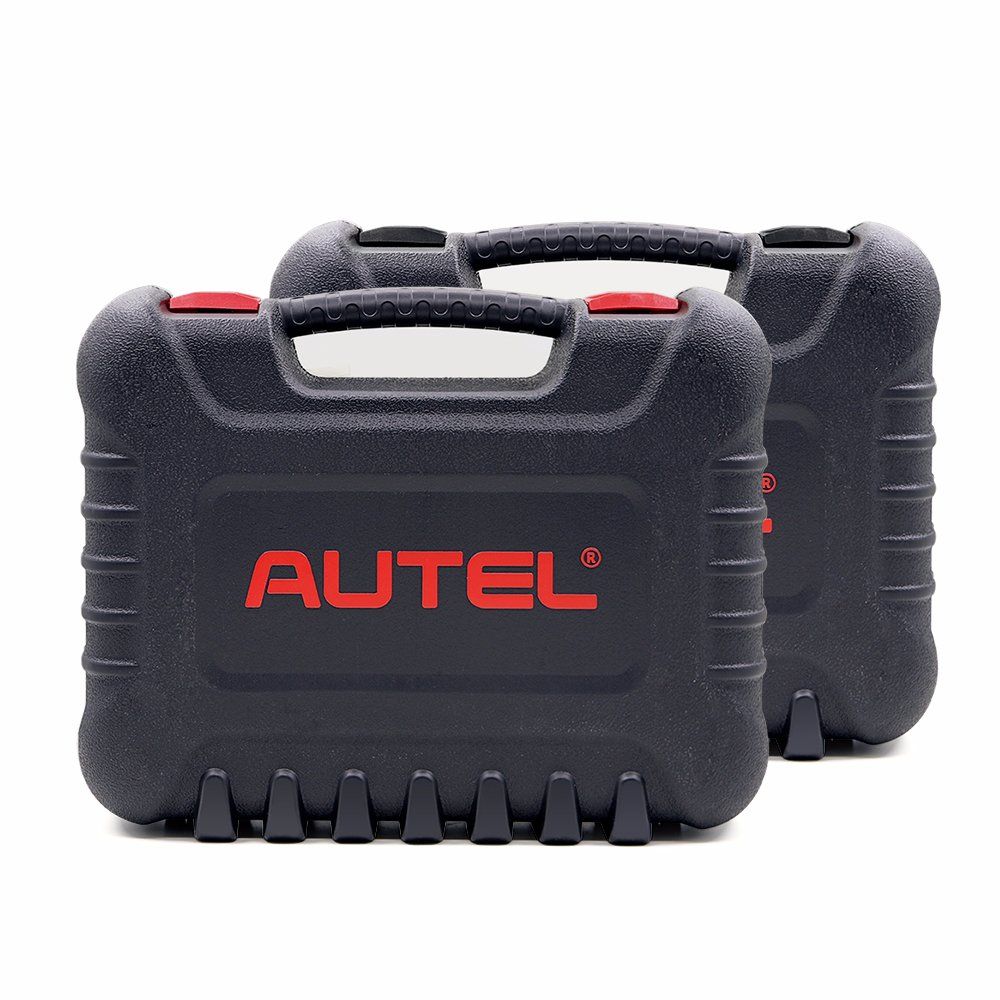

Carry case
USB Cable
User's Manual
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Wireless Diagnostic Interface
Capacitive Stylus Pen
Soft Cloth
Packing List
Mini USB Cable

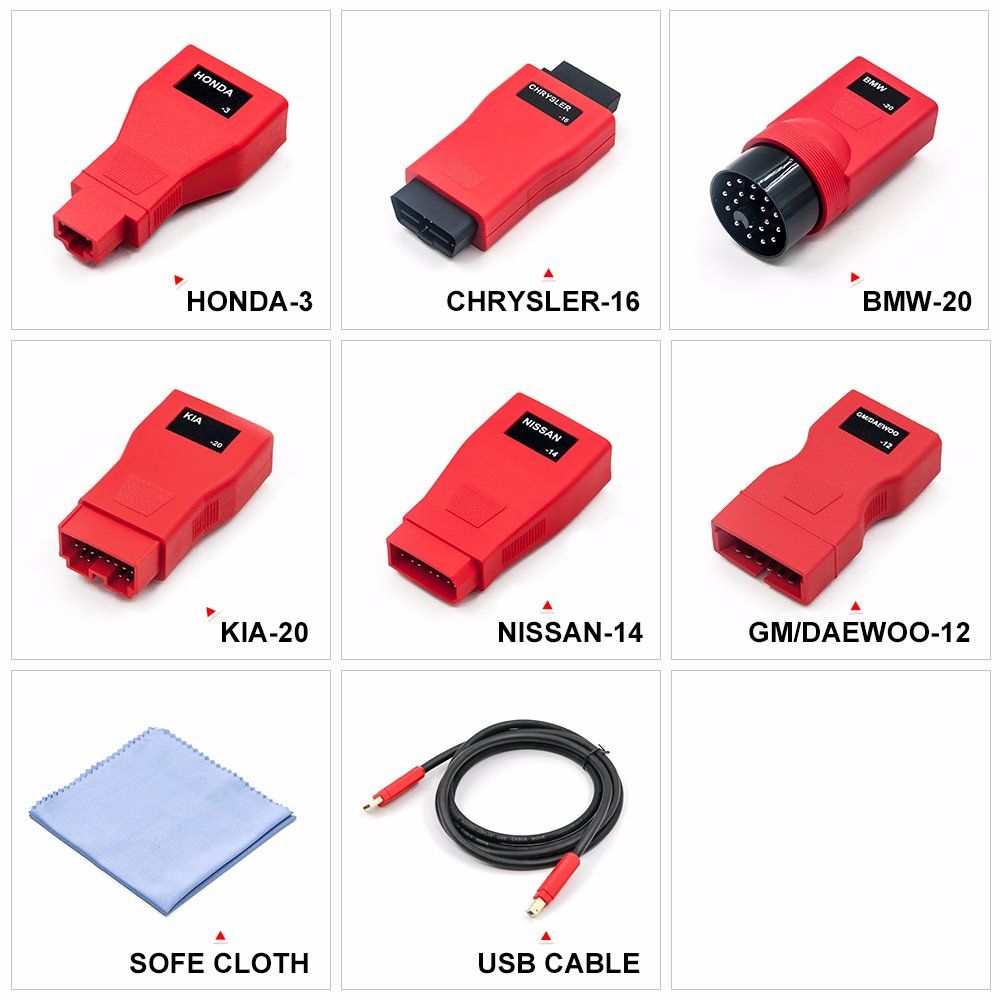

2. Adaptor
for G-M/Daew-oo-12 adaptor
for PSA-2 adaptor
for F-iat-3 adaptor
for Au-di-2+2 adaptor
for B-M-W-20 adaptor
for Ben-z-38 adaptor
for K-ia-20 adaptor
for Mitsu-bishi/Hyu-ndai-12+16 adaptor
for Nis-san-14 adaptor
for Ho-nda-3 adaptor
for Ch-rysler-16 adaptor
for Ben-z-14 adaptor
