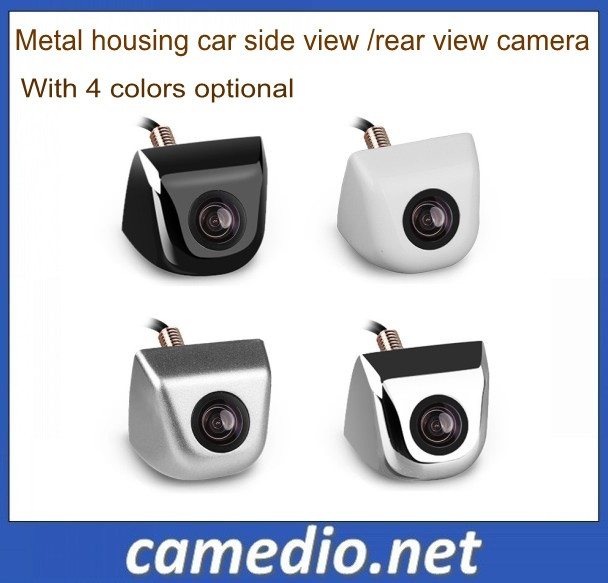

1) HD universal fit korean style Car Side view Rearview reversing camera waterproof 100% metal housing
2) Wide viewing angles ,high quality image
3)both suit for rear view and side mirror view (mirror image without parking lines), parking distance lines on/off switch available
4)waterproof and day/night vision .
5)Image sensors optional: PC1030 CMOS, PC1089 CCD level
Specification:
Image sensor:Color CMOS
TV system:NTSC/PAL
Effective pixels:658 x 462 Pixels/628 x 586 Pixels
Sensing area:5.961 x 4.276mm
Horizontal resolution:480TVL
Shutter speed:1/60-20us
Minimum illumination:0.2Lux/ F1.8=1.2 (0 Lux with Led)
Lens Angle:170°
White balance:Auto
Color:Black
Waterproof:IP67-IP68
Video output:1.0Vp-p, 75ohm
Current Consumption:No More 300mA
Power supply:DC 12V
Operating Temperature:-20°C~ 60°C, RH95% Max.
Storage temperature:-30°C ~ 60°C, RH95% Max.
Video cable length:6m
Power supply cable length:1.5m
Main features:
1, Universal Rearview Backup Camera
2, 170 Degree wide viewing angle

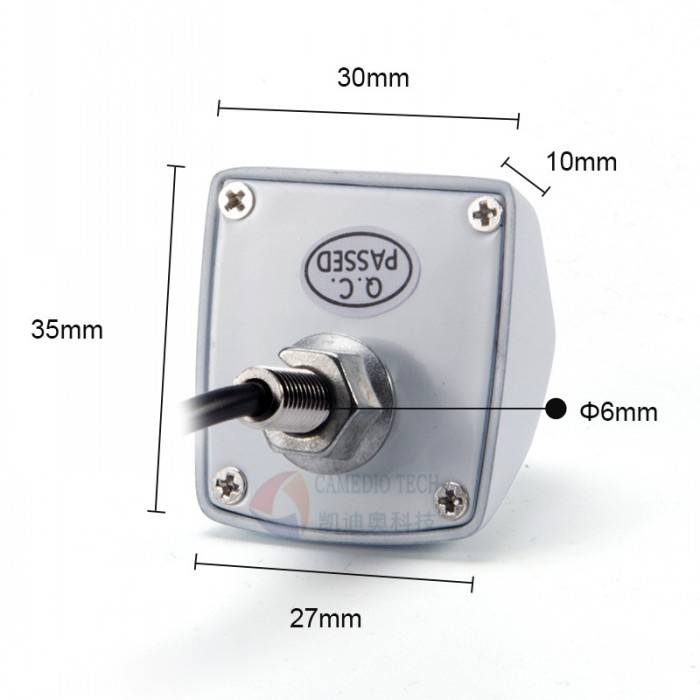

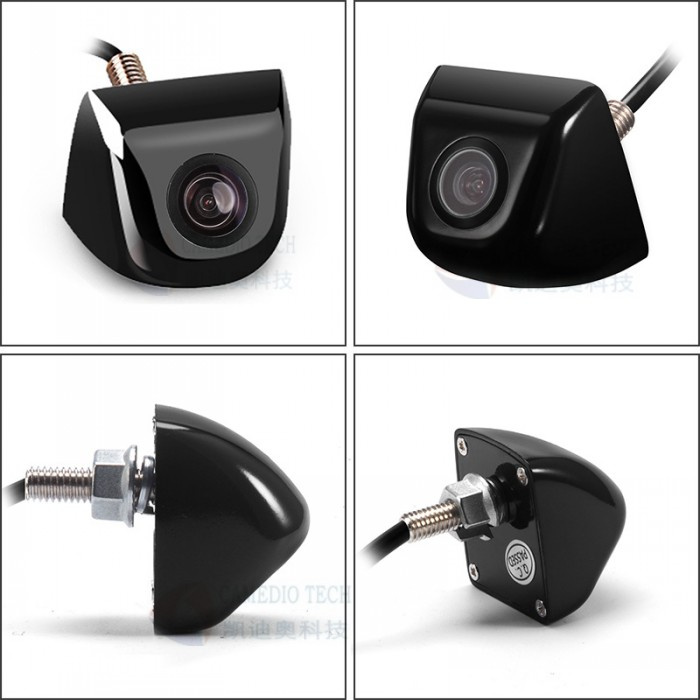

3, Die cast Metal housing
4, Small and compact design
5, Completely waterproof housing
6, Metal anti-theft bracket

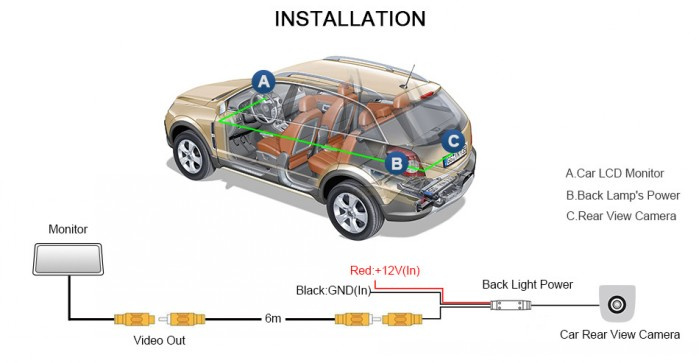

7, Simple installation for installers
8, Low light sensitivity fo 0.5 Lux
9, Mirror image for rear view /side view

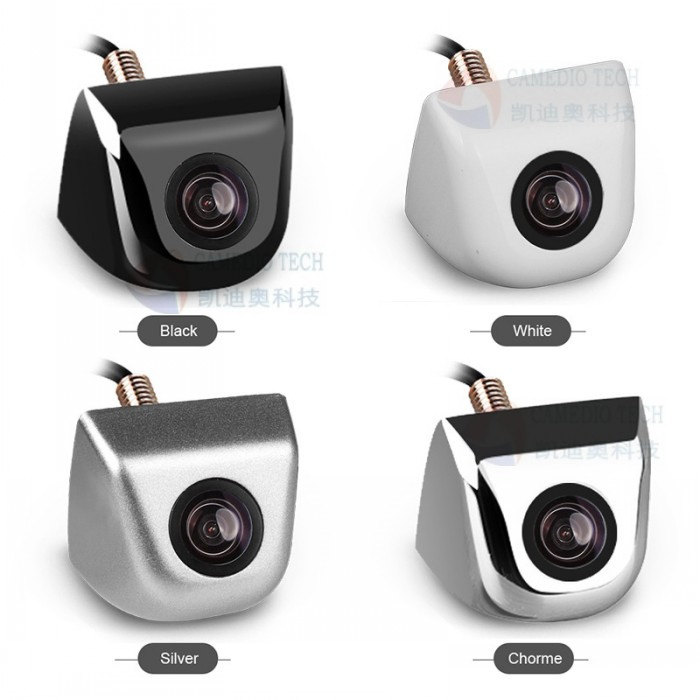

10,Color: Black
11,Requires a 12V DC power supply

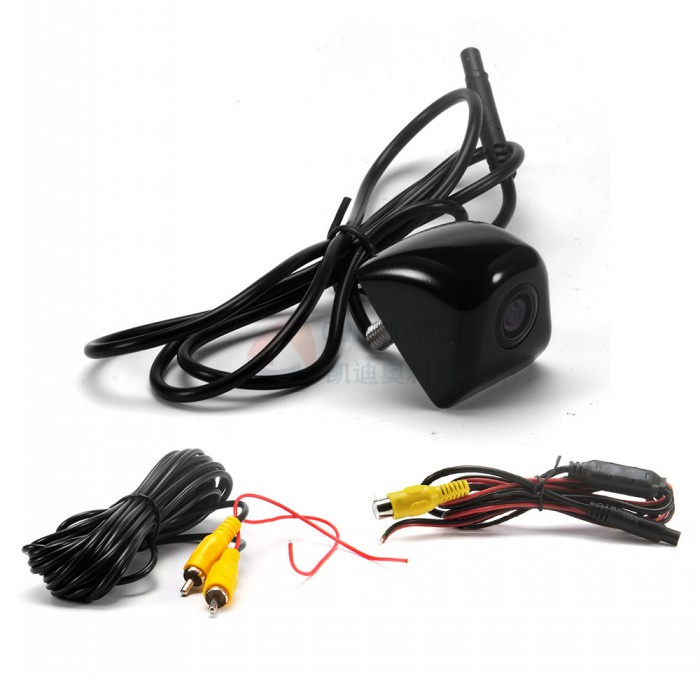

Package Includes:1 x Color Car Rear View Camera
1 x Video Cable (6M)
1 x Power Cable (1.5M)
1 x User's manual
1 x Installation AccessoriesSpecifications for different image devices:Car Rear View Camera |
Chip | PC7080 | 1409 | PC1058 | MCCD |
Optical format | 1/4 inch | 1/4 inch | 1/3 inch | 1/2 inch |
Resolution | 480TVL | 800TVL | 750TVL | 650TVL |
Effective pixels array | 648*488 | 1024*720 | 960*576 | 768*582 |
Horizontal angle | 100 deg. | 120 deg. | 120 deg. | 130 deg. |
Lens | 2G2P | 6G | 2G3P | 6G |
Waterproof | IP67 |
Output format | PAL or NTSC |
Connector | RCA/4PIN DIN optional |
CE&FCC | Approved |
Working Voltage | DC 12V |
Working Tem./Hum. | -20°C~70°C, RH.95% MAX. |
Storage Tem./Hum. | -30°C~80°C, RH 95% MAX. |
OEM/ODM | Accepted |
