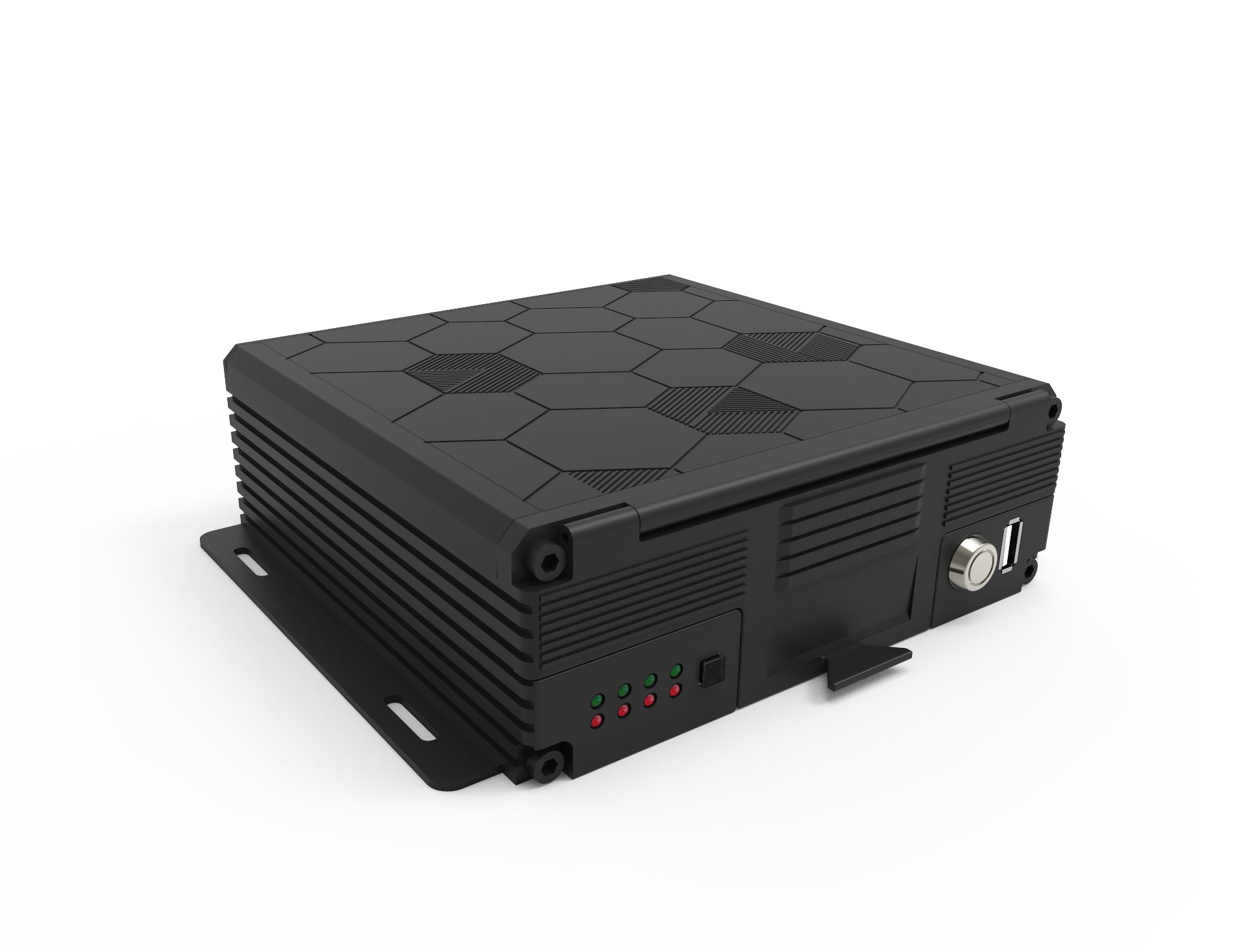

Mobile DVR, Car DVR, CCTV DVR
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

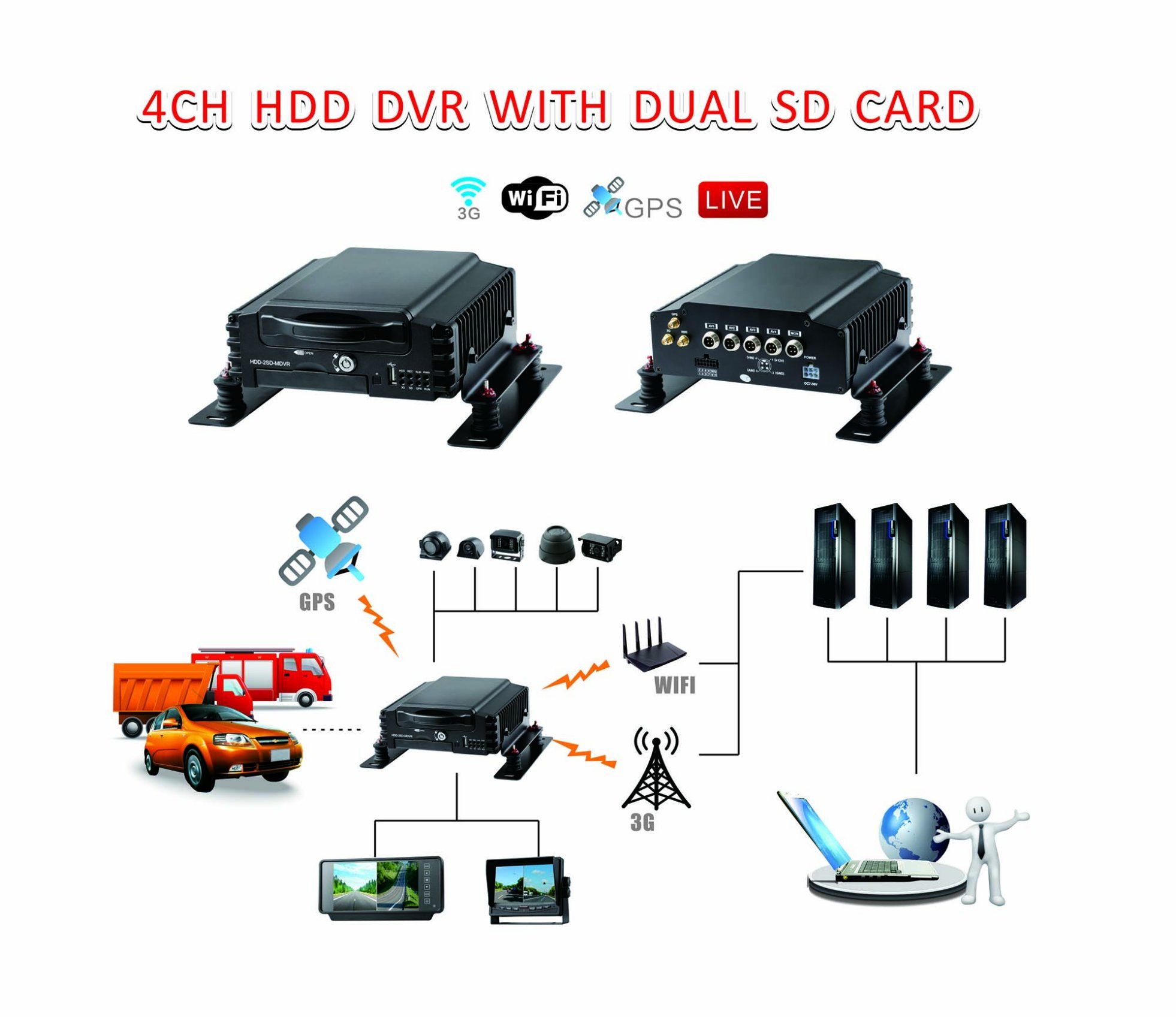

8CH ,4CH HD mobile DVR

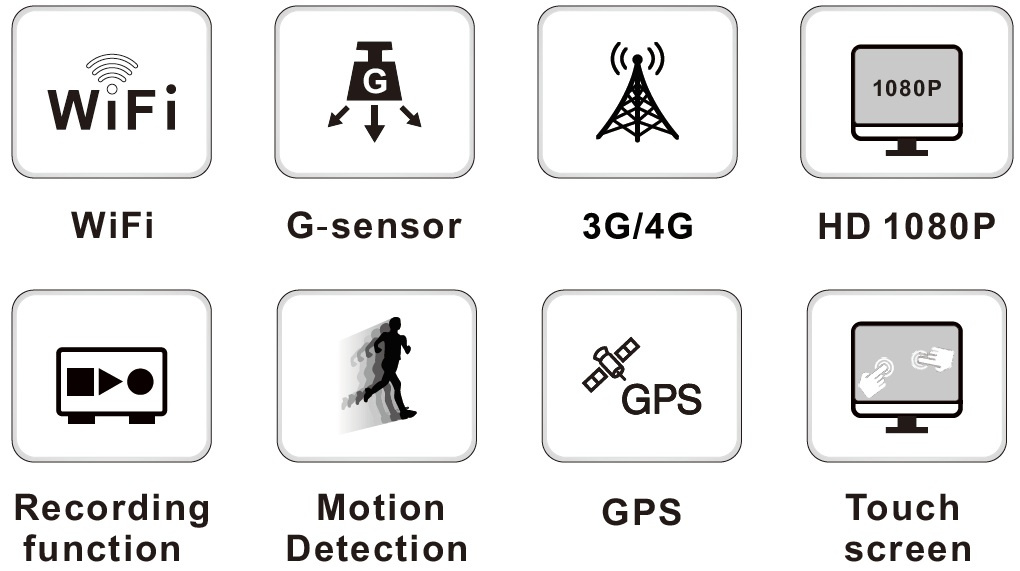

Ÿ Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity Ÿ 8CH AV Inputs with AHD 1080N/720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output Ÿ 8CH local recording with 1080N resolution in real time Power: Ÿ Professional In-Vehicle power design, Linear power IC 8-32V DC Wide Voltage Range Ÿ Multi protection circuits like under-voltage, short, reversed plug-in Ÿ Smart power management system, shutdown under low voltage, low consumption Data Storage: Ÿ Special file management system to encrypt and protect the data Ÿ Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive Ÿ Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage Ÿ Support 2.5 inch HDD/SSD, maximum 2TB Ÿ Support SD card storage, maximum 256GB Ÿ Support hard disk heating Transmission Interface: Ÿ Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA Ÿ Support GPS/BD optional, high sensitivity, fast positioning Ÿ Support wireless download by WiFi, 802.11b/g/n, 2.4GHz
|
|
Technical parameter: |
Item | Device parameter | Performance |
System | Main processor | Hi3520DV300 |
Operating system | Embedded Linux OS |
Operating language | Chinese/English |
Operating interface | GUI, support mouse |
Password security | User password/Admin password |
Audio & Video | Video standard | PAL/NTSC |
Video compression | H.264 |
Image resolution | 1080N/720P/960H/D1/CIF |
Playback quality | 1080N/720P/960H/D1/CIF |
Compound mode | A variety of ways |
Image display | Single/split/QUAD display optional |
Audio Compression | G.726 |
Audio recording | Audio & Video synchronized recording |
Recording & Playback | Recording mode | Manual/Alarm |
Video bit rate | Full frame 4096Mbps,6 classes image quality optional |
Audio bit rate | 8KB/s |
Storage media | SD card + HDD/SSD storage |
Video inquiry | Inquiry by channel/Recording type |
Local playback | Playback by file |
Firmware upgrading | Upgrading mode | Manual/Automatical/Remote |
Upgrading method | USB disk/Wireless network/SD card |
Interface | AV input | 8ch aviation interface |
HDD/SSD | 1 HDD/SSD (up to 2TB, support hot plug/unplug) |
SD card | 2 SDXC High speed card (up to 256GB) |
USB interface | 1 USB 2.0 (support U disk/mouse) |
Ignition input | 1 ACC signal |
UART | 1 LVTTL Level |
LED Indication | PWR/RUN |
Disk lock | 1 |
Debug port | 1 |
Function extention | GPS/BD | Support detecting antenna Plug in/Unplug/Short circuit |
3G/4G | Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE |
WIFI | 802.11b/g/n, 2.4GHz |
Others | Power input | 8~32V DC |
Power output | 5V 300mA |
Power consumption | Standby 3mA Maximum consumption 30W @12V 2.5A @24V 1.25A |
Working temperature | -25 --- 80ºC |
Storage | 1080N 1.2G/h/channel 720P 1G/h/channel 960H 750M/h/channel |
Prod Model: |
MS-587 |
SD: |
256g |
HDD: |
2t |
Resolution Max: |
1080 |
Resolution Support: |
CVBS/960h/Ahd Camera (600tvl, 1080P, 720p, D1) |
Power IC Brand: |
Linear |
Input Voltage: |
6-36V DC |
Interface: |
BNC\VGA\HDIM |
Compression Format: |
H.264 |
Certification: |
E-MARK |
Warranty Time: |
18 Monthes |
Brand: |
Mingshang |
Mingshang International Group has its head office in the Shenzhen China and consists of Shenzhen mingshang industrial co, Ltd, Mingzong technology co, Ltd and Mingshang high technology(huizhou) co, Ltd
Found in 2003, Mingshang has produced excellence car visual safety solutions to the worldwide vehicles markets, is the one of China's leading suoopliers of backup camera system, Rear view camera system, mobile DVR and so on.
MINGSHANG is one of China's leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for
- Commercial and School Buse
- RV's and Motorhomes.
- Cargo and Delivery Vans.
- Trucks and Trailers.
Products:
1. Trailer camera system
2. Forklift camera system
3. HD heavy duty camera system in wired and digital wireless
4. Mobile DVR
5. Wireless hitch camera system---for trailer, horsebox, caravan, forklift, Boat
6. Recordering 4CH wireless camera system
MINGSHANG has over 14 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.
MINGSHANG is proudly to server Ford, GMC, YUTONG BUS, KINGLONG, and Dometic (Waeco).
MINGSHANG certified with TS16949: 2009 & ISO9001: 2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, and E-MARK...etc.
