9-Inch 4CH Digital Wireless Monitor Wireless Rear View Camera for Trucks and Trailors

Name: 9-Inch 4CH Digital Wireless Monitor Wireless Rear View Camera for Trucks and Trailors
Brand: ibuyautoparts.com
SKU: 814843405
Availability: InStock
Rating: 5 (41 reviews)

Price:	US $ 160/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

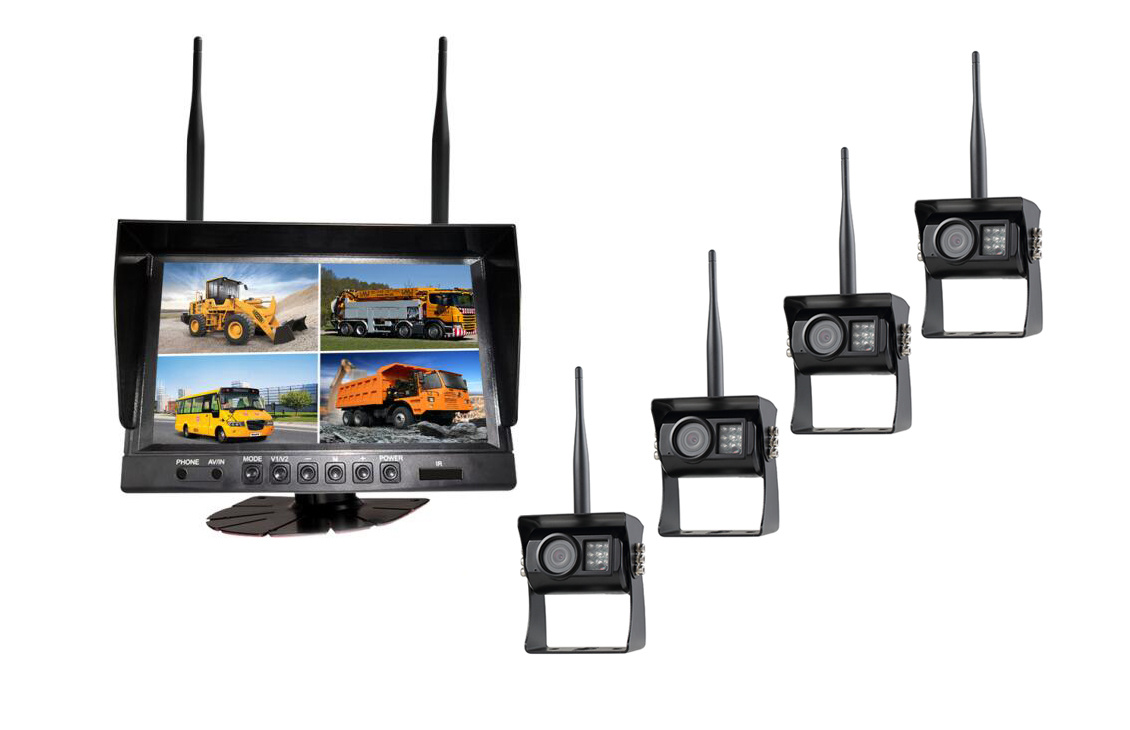

9" 4CH digital wireless camera system

Model: MS-792RSW

No interference digital signal
Frequency: 2400-2483.5MHz
Auto scanning, auto pairing
Distance: 100m ( barrier-free)
4CH video, quad screen/dual screen with three triggers
Built to withstand the shock and vibration associated with industrial applications
Dust and waterproof design, all connectors are waterproof
meet the requirements for hot, cold weather also shock and vibration
20G force for vibration an100G for shock

Spec of 9" LCD monitor:
1. Resolution: 800 X 3 (RGB) X 480
2. Contrast: 300:1
3. Pixel pitch: 0.2475 (H) X 0.2335 (V)
4. Viewing angle U: 60/D: 70 L/R:75
5. Input power: 10-15V DC
6. System: PAL and NTSC
7. Shock resistant, specifically design for mobile use
8. Picture display format: 16:9
9. The display with three video frequency input automatic/manual switcher
10. Includes flat surface/in-dash and adjustable universal mounts
11. Operation temperature: -30 to +70ºC

Specification of camera:
day and night camera

Color sensor
Waterproof: IP69K
System:
NTSC: 510x492
PAL: 500X582
Resolution: 540 TV Lines
Minimum light: 0lux (LED on, 18 pieces IR)
Electron shutter: 1/100,000(s), on/off
S/N ratio, more than 48dB
Video output: 1Vp-p 75Ω
Vibrations resistant, especial design for mobile use
120 degrees
Operating voltage: 10-32V DC

Prod Model:	MS-792RSW

Mingshang International Group has its head office in the Shenzhen China and consists of Shenzhen mingshang industrial co, Ltd, Mingzong technology co, Ltd and Mingshang high technology(huizhou) co, Ltd

Found in 2003, Mingshang has produced excellence car visual safety solutions to the worldwide vehicles markets, is the one of China's leading suoopliers of backup camera system, Rear view camera system, mobile DVR and so on.

MINGSHANG is one of China's leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for

- Commercial and School Buse

- RV's and Motorhomes.

- Cargo and Delivery Vans.

- Trucks and Trailers.

Products:

1. Trailer camera system

2. Forklift camera system

3. HD heavy duty camera system in wired and digital wireless

4. Mobile DVR

5. Wireless hitch camera system---for trailer, horsebox, caravan, forklift, Boat

6. Recordering 4CH wireless camera system

MINGSHANG has over 14 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.

MINGSHANG is proudly to server Ford, GMC, YUTONG BUS, KINGLONG, and Dometic (Waeco).

MINGSHANG certified with TS16949: 2009 & ISO9001: 2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, and E-MARK...etc.
