high pressure automatic rollover car washing machine systems manufacture factory
Qingdao Risense Mechatronics Co., Ltd.
Since Jan 1st, 2010, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on.Risense rollover car wash machine is equipped with new-generation car model detection technology, perfect-angled side brush technology, profiling air-dry technology and complete vertical lifting of top brush, which is featured as combination of many ways of car washing, fast speed and low power consumption.
Main features: 1. PLC electronic control system can easy to operate and maintenance.
2. Hot-dip galvanized steel frame can keep the whole machine stable and long life use.
3. Three brushes(one bursh of vertical lift, two big side brush).
4. Double swing blower for drying system.
5. High pressure water washing, shampoo washing, waxing and dryer.
6. Inclinable side brush strengthens cleaning ability around the car body.
7. The dovetail foam brush make the car washing more quiet and clean.
8. The motor IP67 make the machine work well on the water condition.
9. High quality control system, motor and pump from Japan can keep the machine running with great performance.
10. Fully automatic rolles over and easy to install, operate and maintain.
11. With one-site installation and operate training for free and long time quality guarantee to whole car wash.
Specification ..................
Model | CF-330 | CF-320 |
Machine dimension | 2.51x3.6x3.15m | 2.51x3.6x3.15m |
Assembling range | 11x3.7x3.3m | 11x3.7x3.3m |
Available size for car | 5.3x2.2x.2.1m | 5.3x2.2x.2.1m |
Available car to wash | car/jeep/coach within 10 seats | car/jeep/coach within 10 seats |
Main voltage | 380v 3phase 50HZ | 380v 3phase 50HZ |
Total power | 11kw | 11kw |
Water supply | DN25mm water flow rate≥100L/min | DN25mm water flow rate≥100L/min |
Air pressure | 0.75-0.9MPa Air flow rate≥0.1m³/min | 0.75-0.9MPa Air flow rate≥0.1m³/min |
Water consumption | 72L/car | 72L/car |
Shampoo consumption | 7ml/car | 7ml/car |
Water Wax consumption | 12ml/car | / |
Washing time | 4'45''/car | 2'45''/car |
Car wash capacity | 20-25cars/hour | 20-25cars/hour |
Dry system | 1 set | / |
High pressure system | 1 set | / |
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.

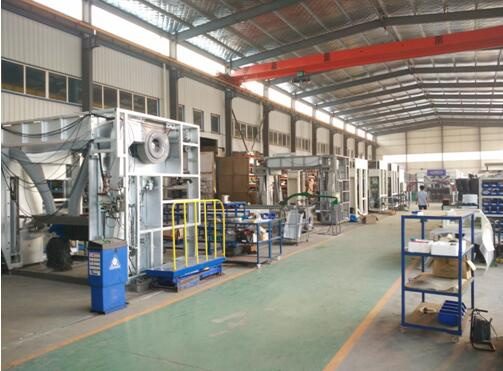

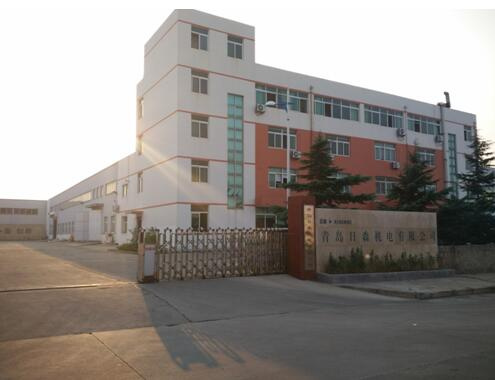

Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
