Mirror Monitor Backup Camera Systems for Vehicle
| Price: |
US $ 90-130/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

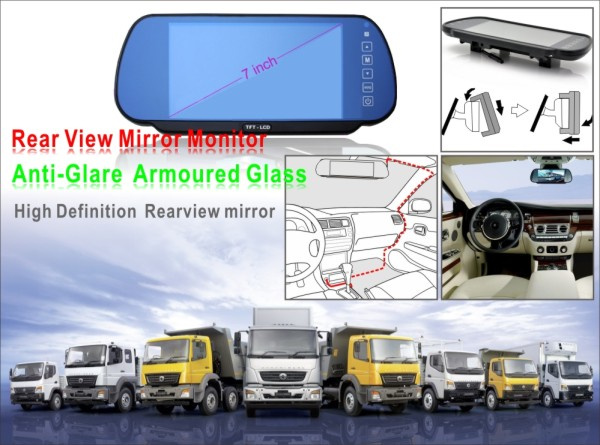

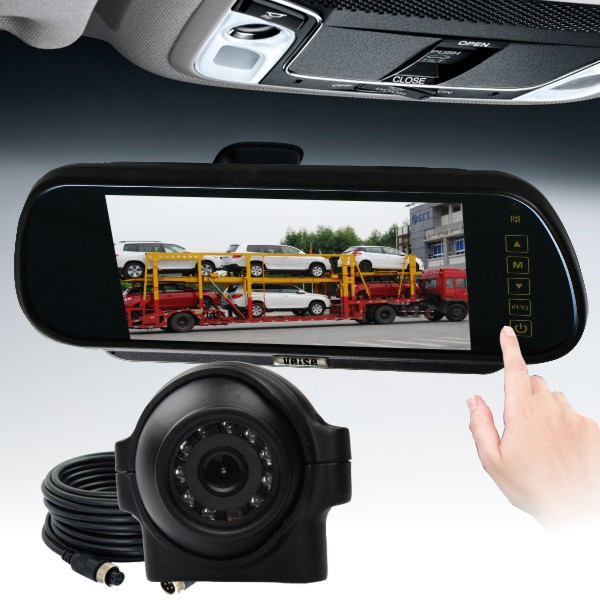

Rearview Mirror Monitor Backup Camera Systems7"anti glare high reflective ultra digital rear-view mirror display (Model SP-7088C)
SD Menu Function Separately Set Each Camera Mirror/Normal image , Reversing Image Delay Time ,Trigger priority
Video Inputs 2 CH Video
Display Resolution 800RGB(H) X 480(V) dot
Color System PAL/NTSC (AUTO)
Brightness (cd/m2): 400
Contrast ratio 500:1
Load Dump DC14+87V(Td400mS) 5pulses
Operating temperature -20ºC to +70ºC
Storage temperature -30ºC to +80ºC
Operating Voltage DC11-32V
External dimensions (L x W x T) (249.5 x 108 x 39mm)
Weight Approx: 400g
Aluminum Shell Waterproof IR Color Camera(MODEL:DF-8053)
Image Type: 1/3 inch Color CCD
Horizontal Resolution:600TV Lines
Effective pixel:NTSC:768(H)×494(V) PAL:768(H)x582(V)
Usable Illumination : 0Lux ( Built in 10pcs IR for Picture Support in the Dark)
Free viewing angle: 130°

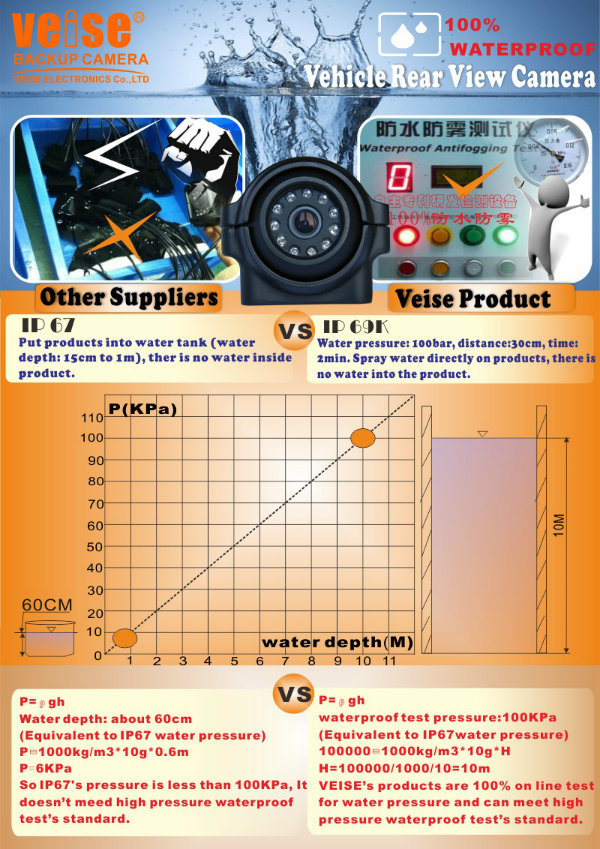

Waterproof: IP69K
Shockproof: 10G
Video Output:1.0Vp-p75Ω
Power supply:DC12V from Reversing Monitor
Dimensions: 55(L) x 63(W) x 74(H)mm
Product Accessories
An instruction manual,Electrical Connecting Cable 15m , Auto cigarette lighter
| Prod Model: |
DF-7088C0511 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contrast Ratio: |
500:1 |
| Operating Temperature: |
-20oc to +70oc |
| Storage Temperature: |
-30oc to +80oc |
| Brightness (CD/M2): |
400 |
| Mirror Type: |
Flat Mirror |
| Position: |
Inside |
| Controlling Type: |
Electrical |
| View Angle: |
120?? |
| Mirror Material: |
ABS |
| Pixel: |
300Million |
| Color: |
RGB |
| Certification: |
ECE |
| Size: |
7" |
| Brand: |
Veise |
The story behind Veise
Veise is the specialist in camera and monitor systems for heavy equipment, commercial vehicles, cranes, lift trucks, maritime applications, emergency vehicles, railway applications, municipal vehicles, and airport vehicles. All over the world we broaden the horizons of drivers, operators, captains and machinists, with increased safety, efficiency and comfort as the aim.
Veise has over 20 years of experience in designing and developing certified vision solutions for eliminating blind spots around vehicles, machines and ships. Veise has grown into an international company at lightning speed, product sales to Europe and the United States, Japan and other regions.
Why Veise?
Veise keeps matters in its own hands
Vision is our mission
Quality
Vision solutions for many market segments.
From design to development and from production to service: Veise keeps matters in its own hands, and that makes us unique. We can produce 30000sets of monitors and 40000 sets of camera per month, because our assembly steps are rather simple. OEM and ODM services are also available.
Veise team
The Veise team consists of over 100 members of staff who are committed to providing you with the best camera and monitor solutions. In our optimized production halls we assemble cameras, monitors, cables and connectors, , switchers, mounting products, interfaces, controls and power supplies.
Vision is our mission
For every situation, Veise brings a vision solution to the market. This is a segment that is developing to become one of the largest global markets in the field of accessories, bolstered by legal regulations relating to visual solutions. Within this market, we wish to be the partner of choice. Our promise? More safety and efficiency, improved ergonomics and comfort, and certified quality.
Mission
Vision is our mission. Veise wants to provide end users with optimum vision; To do so all activities are crucial. From development and production to delivery and service. This results in enthusiastic customers who strengthen our image in the market through word-of-mouth advertising.
Quality
Veise develops and produces vision systems and related solutions in accordance with strict quality requirements, and has the ISO 9001: 2008 certificate. ISO 9001 enables Veise to safeguard its processes even more effectively and to continue intensifying the focus on quality and deliveries. This enables us to serve our customers even more effectively and to work on further developing the market. In addition to ISO 9001, Veise has also implemented ISO/TS 16949: 2009, which is the quality certificate in the automotive industry. TUV Rheinland Quality Assurance has certified Veise's quality system.
Veise wants to stabilize its processes as much as possible, and manages them through statistic monitoring. In doing so, we are continuously improving performance in respect of our customers. The entire organization constantly works on improving processes and products. We achieve this through an integrated approach (quality, health, safety, sustainability and environment) and, in doing so, use the 'automotive core tools' such as 8D, FMEA, SPC, MSA, APQP and PPAP. And we also got the certificates of MA, IP69K, EMC, FCC, RoHS and E-MARK.
Consideration of the environment
Care for health & safety and the environment is an important value within our operational management. In the following Environment, Health & Safety policy statement, the directorate and the management highlight the importance of these matters for Veise
Veise works in a safe, responsible manner that embodies respect for the environment and the health of our staff, our customers, and the community in which we are active.
In no way will we act recklessly with the environment or with the health and safety of the local area in order to increase our profits or production levels.
