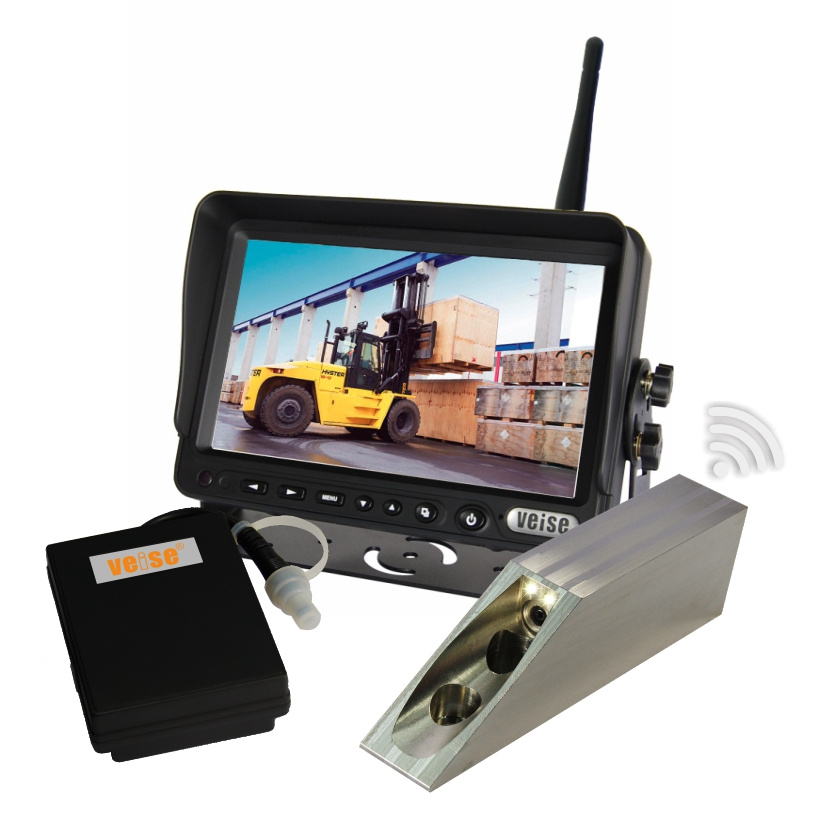

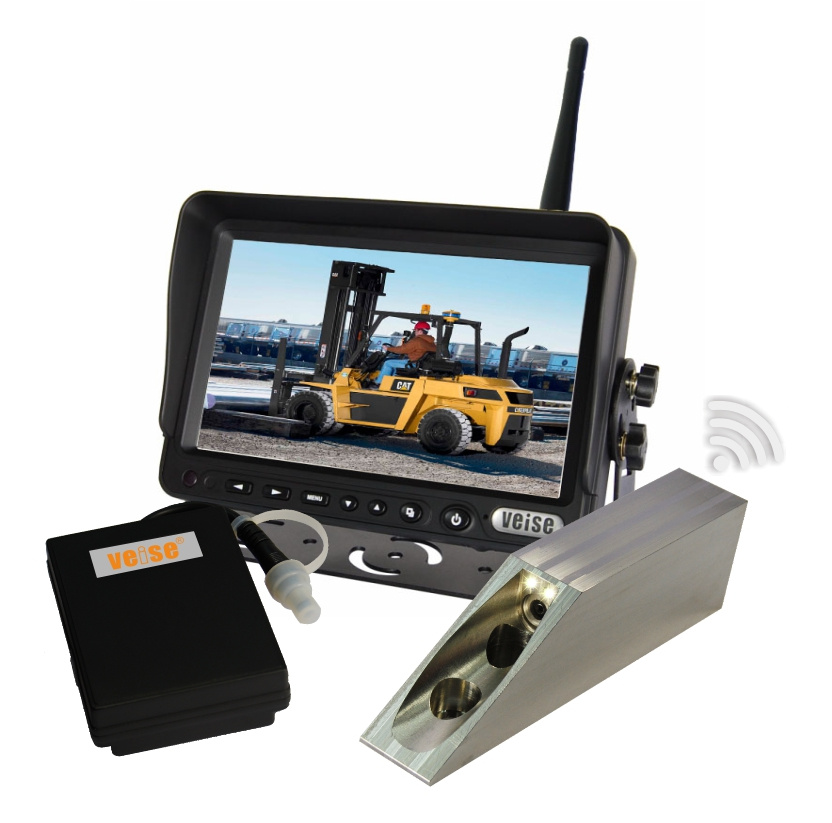

Cam Forklifts with 7 inch TFT LCD Screen for Lift Trucks(DF-723H2561-MP5V)
Veise offers camera monitor vision solutions for all reach lift trucks. Our camera systems are developed with a view to improving safety, efficiency and comfort.
The design of the warehouse lift truck together with the position of the mast, cause significant limitation to the operator's field of vision. From the cab, the operator often has poor visibility of the forks. A Veise camera monitor system gives the operator the extra pair of eyes needed, regardless of the type of warehouse lift truck and the operating conditions.
Digital Wireless Receive Monitor(Model:SP-723H2)
Built in 2 CH 2.4GHz Digital Wireless Receiver
Operation Frequency:2400 ~ 2483.5MHz
Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE)
Display Resolution: 800RGB(H) X 480(V) dot
Brightness (cd/m2): 450
Contrast ratio: 500:1
Operating temperature: -20ºC to +70ºC
Storage temperature: -30ºC to +80ºC
Free Operating Voltage: DC10~32V
Digital Wireless Waterproof IR Camera(MODEL:DF-8305ZP)
Image Type: 1/3 inch Color CMOS
Built in 2.4GHz Digital wireless transmitter
Line of Sight Range:≤50M
Horizontal Resolution:600TV Lines
Effective pixel:NTSC:960(H)X480(V);PAL:960(H)X480(V)
Usable Illumination : 0Lux ( Built in 2pcs LED's for Picture Support in the Dark)-Automatic control
Free viewing angle: 45°
Waterproof: IP67
Shockproof: 10G
Free Operating Voltage: DC5 Volts for power bank
DC12 Mobile Power (MODEL:DF-MP5V)
Type Batteries:Li-ion batteries (Panasonic original import)
Capacity:10000mA
DC Input:5V/12V(2A)
DC Output::5V(500mA)
Charging times:> 800 cycles
Charge / Discharge Interface:DC2.1 * 5.5 male
Shockproof Level:6G
Waterproof Level:IP66
Charging Working Temperature: 0 ºC to + 40ºC
Discharge Working Temperature:-20ºC to + 60 ºC
Storage Temperature:-40 ºC to + 60 ºC
Accessorie
U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*1,User's Manua,USB charging cable

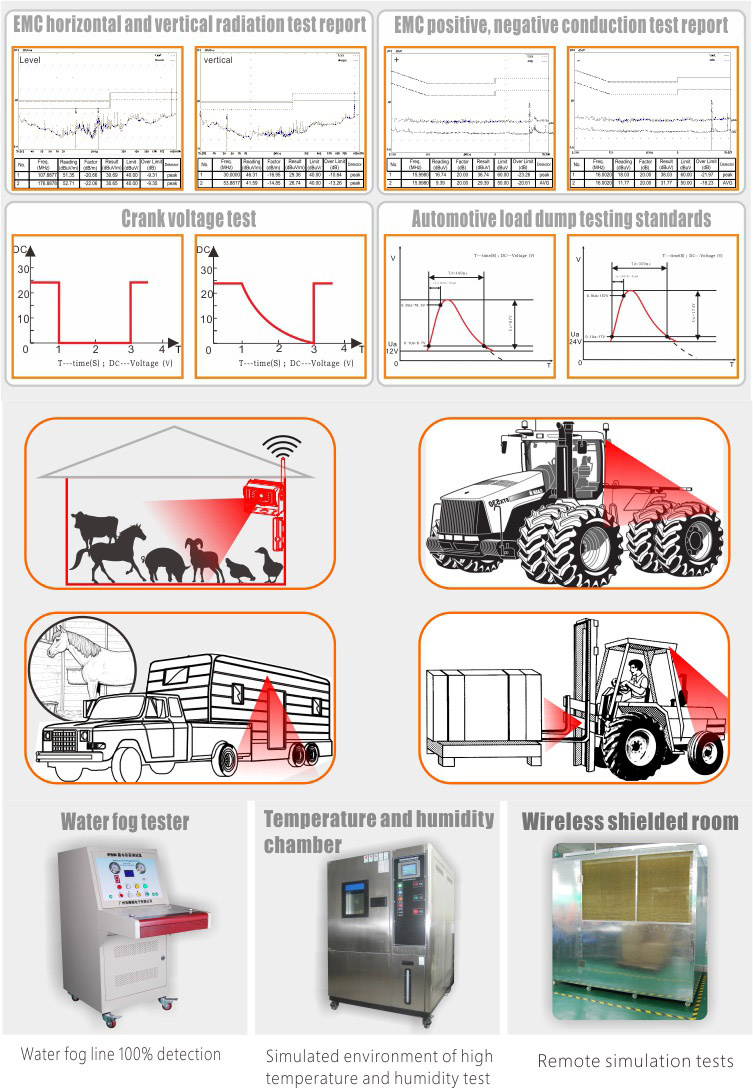

Testing Report:
EMC
1)EMC horizontal and vertical radiation test report . Standard: (RE)EN301489-1
2)EMC positive, negative conduction test report. Standard:EN55022 CE-Class B_QP
Automotive load dump testing standards
3)12V / 24V system testing .Standard: ISO7637 5a
Crank voltage test
4)Display Power / trigger input DC24V work off the rear end of 2S,Re-power to ensure product recovery work.
5)Monitor power / end trigger input DC24V, within 2S voltage down to 0V, namely to ensure that products rose after 24V restoration work.
6)Monitor power / end trigger input DC24V, 1mS intervals to switch five times to ensure product recovery work.
Monitor power / end trigger input DC24V, after the interval to 500mS switch 5 times to ensure product recovery work.
Services:1, Reply your inquiry in 24 working hours.
2, Customized design is available, OEM and ODM are welcomed.
3, Deliver the goods to our customer all over the world with speed and precision.
4, Offer customer the lowest price with high quality Camera and Monitor.
5, Well-trained and experienced staff to answer all of your inquires in fluent English.
6, Protection of your sales area, ideas of design and all your private information.

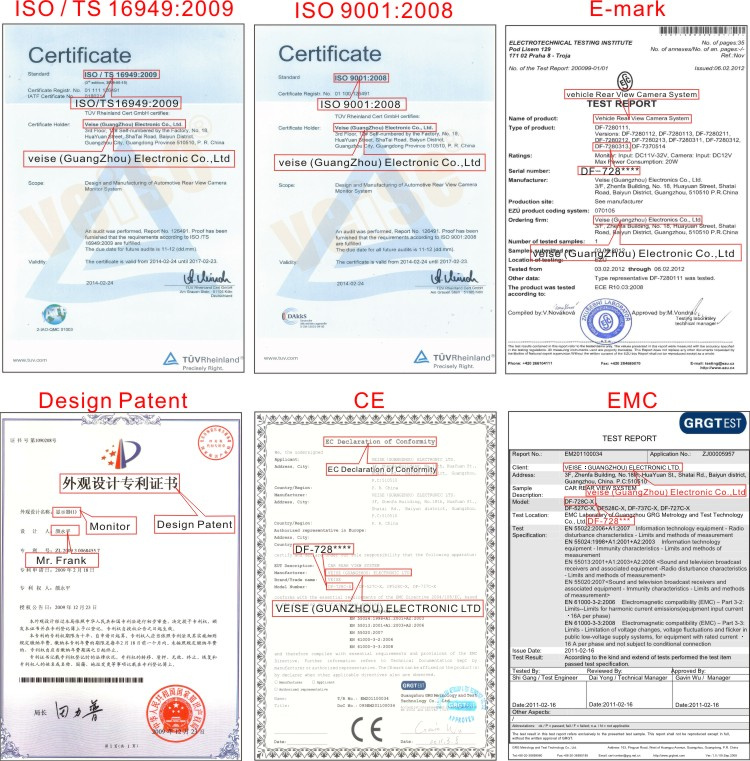

Certificates:
FAQ:
1.Are you a trading company or factory?
Answer: We are factory in Guangzhou.
2.What's the warranty of your products?
Answer: Monitor:2 years; Camera:1 year.
3.What's the payment term?
Answer: T/T,Western Union and L/C are available.
4.How can I place the order?
Answer:Please send us an inquiry,confirm your preferable models,our sales shall send you a proforma invoice.After receiving your payment,we will arrange to get goods ready and ship out.
