Prod Model: |
24-8.5 24-10.00 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Yellow |
Material: |
Steel |
Type: |
Rim |
Drive Wheel: |
4WD |
Certification: |
DOT |
Wheel Hub Diameter: |
24 |
Finishing: |
Painting |
Wheel Accessories: |
O-Ring |
Wheel Hub Brand: |
Oasisland |
Product Description

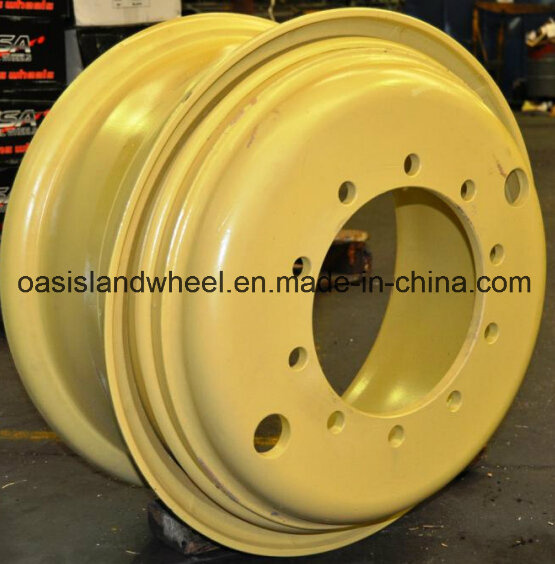

Mining truck wheel (24-8.5 24-10.00) for heavy duty haul trainFeature of our OTR Wheelwheel for construction industries fully utilize high strength low alloy (HSLA) steel. Heat treatment formed material is used for critical components on multi piece wheel. Auto butt-welding is widely used on rim, ring and other circular parts;
All circumferential weld seams are inspected by nondestructive inspection to ensure zero defect.
Specifications: 10 x 25 3-piece Tubeless Wheel
8.5 x 24 3-Piece Tube/Tubeless Type Wheel
Suitable for Heavy Applications
Wheel Size | Recommend Tire Size | Specification (mm) |
A | B | G | D | d | C | H |
8.5-24 | 12.00-24/8.5 | 216 | 25 | 45.5 | 616 | 609.6 | 464 | 22 |
We can make different Spec according to client's request
3 Piece OTR Steel Wheel Rim |
Dia | Size | Fitted Tyre | Dia | Size | Fitted Tyre |
20" | 20-8.00/2.0 | 11.00-20 |
25" | 25-8.50/1.5 | 13.00-25 |
20-8.50/1.7 | 12.00-20 | 25-10.00/1.5 | 14.00-25 |
20-10.00/1.7 | 14.00-20 | 25-12.00/1.3 | 15.5-25 |
20-13.00/1.0 | 16/70-20 | 25-14.00/1.5 | 17.5-25 |
21" | 21-17.00/2.0 | 20.5-21 | 25-17.00/1.7 | 20.5-25 |
21-18.00/1.7 | 24.00-21 | 25-17.00/2.0 | 20.5-25 |
22'' | 22-17.00/2.0 | 20.5-22 | 25-19.5/2.5 | 23.5-25 |
23" | 23-11.00/1.5 | 14.00-23 | 25-22.00/3.0 | 26.5-25 |
23-18.00/2.0 | 24.00-23 | 25-25.00/3.5 | 29.5-25 |
24" | 24-8.50/2.0 | 12.00-24 | 26" | 26-20.00/1.1 | 23.1-26 |
24-8.50/1.7 | 12.00-24 | | | |
24-10.00/1.7 | 14.00-24 | | | |
24-10.00/2.0 | 14.00-24 | | | |
5 Piece OTR Steel Wheel Rim |
Dia | Size | Fitted Tyre | Dia | Size | Fitted Tyre |
25'' | 25-10.00/1.5 | 14.00-25 | 45'' | 45-36.00/4.5 | 45/65R45 |
25-11.25/2.0 | 16.00-25 |
49" | 49-17.00/3.5 | 24.00-49 |
25-13.00/2.5 | 18.00-25 | 49-19.50/4.0 | 27.00-49 |
25-14.00/1.5 | 17.5-25 |
51" | 51-22.00/3.0 | 30.00R51 |
25-15.00/3.0 | 21.00R25 | 51-24.00/5.0 | 33.00R51 |
25-17.00/2.0 | 20.5-25 | 51-26.00/5.0 | 36.00R51 |
25-19.00/2.5 | 23.5R25 | 51-40.00/4.5 | 50/65R51 |
25-19.50/3.0 | 23.5-25 |
57" | 57-27.00/6.0 | 37.00R57 |
25-22.00/3.0 | 26.5-25 | 57-29.00/6.0 | 40.00R57 |
25-25.00/3.5 | 29.5-25 | 57-32.00/5.0 | 44/80R57 |
29'' | 29-24.00/3.0 | 775/65R29 | 57-32.00/6.0 | 46/90R57 |
29-25.00/3.5 | 29.5R29 | 57-36.00/6.0 | 50/80R57 |
29-27.00/3.5 | 33.25R29 | 57-44.00/5.0 | 55/80R57 |
33'' | 33-13.00/2.5 | 18.00-33 | 57-44.00/6.0 | 55/80R57 |
33-28.00/3.5 | 35/65R33 | 57-47.00/5.0 | 60/85R57 |
35'' | 35-15.00/3.0 | 21.00-35 | 57-47.00/6.0 | 60/80-57 |
35-17.00/3.5 | 24.00-35 |
63" | 63-41.00/5.0 | 55/80-63 |
39'' | 39-32.00/4.5 | 40/65-39 | 63-44.00/5.0 | 58/80-63 |
Heavy Duty Split Construction Wheel |
21'' | 21-11.25/2.0 | 16.00-21 |
25'' | 25-11.00/1.5 | 1350*380 |
21-17.00/2.0 | 13.00*530-533 | 25-19.5/2.5 | 23.5-25 |
Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials
All products we supply will be with quality and guarantee...
For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.
For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.
Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
