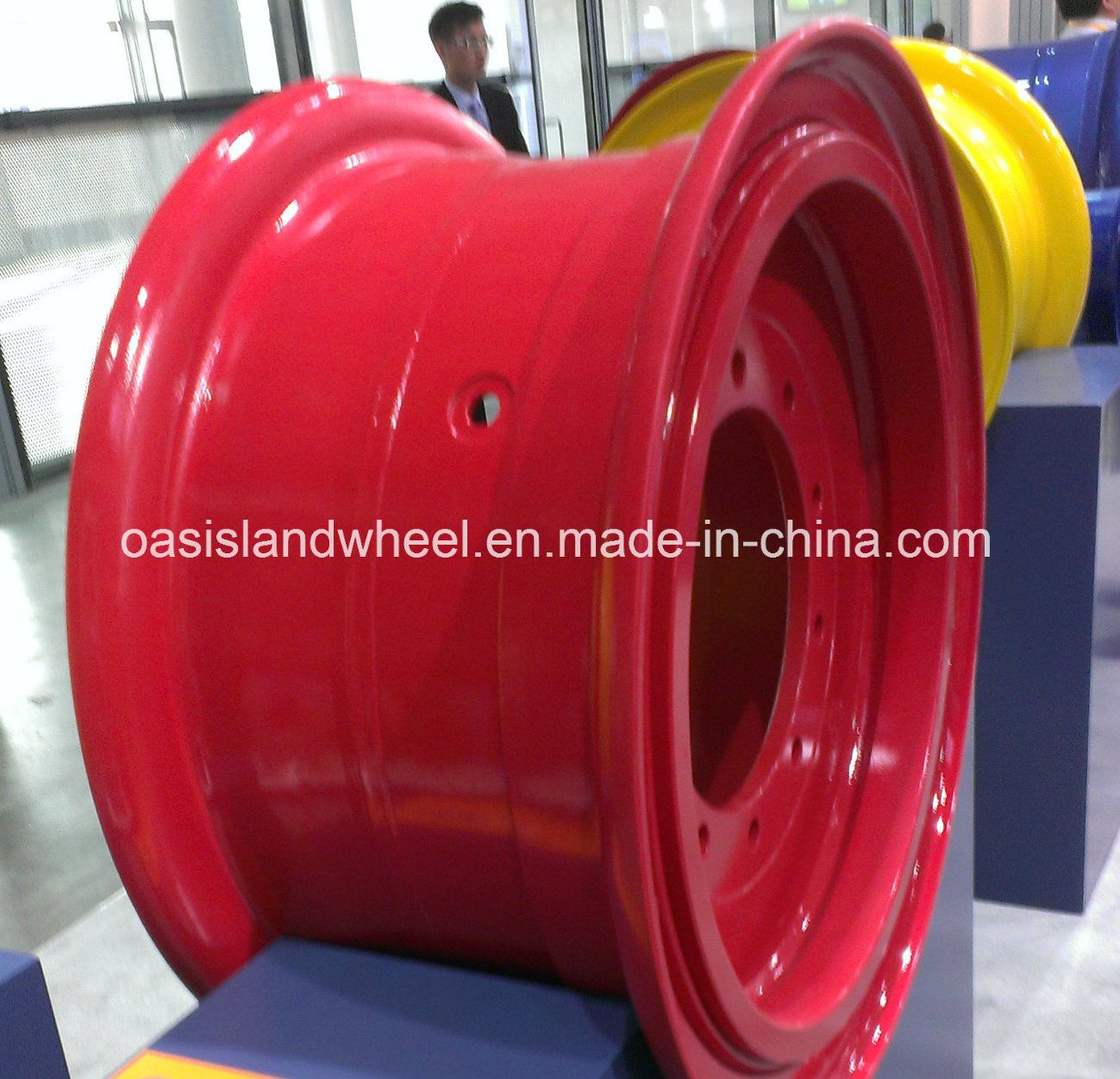

Dump Wheel Loader Wheel Rim/Earthmover Wheel (35-17.00/3.5)

Name: Dump Wheel Loader Wheel Rim/Earthmover Wheel (35-17.00/3.5)
Brand: ibuyautoparts.com
SKU: 828041735
Availability: InStock
Rating: 4.8 (108 reviews)

Price:	US $ 1000-5000/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Dump Wheel Loader Wheel Rim/Earthmover Wheel (35-17.00/3.5)

Specification:

Dia	Rim Size	Fitted Tyre	Bolt Hole		PC Dia	Center Hole Dia	Offset/ET
Dia	Rim Size	Fitted Tyre	No.	Dia.	PC Dia	Center Hole Dia	Offset/ET
35"	35-15.00/3.0	21.00-35	WITHOUT DISC A=25 B=774 C=824
	35-15.00/3.0	21.00-35	DOUBLE DISC A=467 B=290
	35-15.00/3.0	21.00-35	12	32	710	659	110.5
	35-15.00/3.0	21.00-35	14	36	704.85	644.7	44.8
	35-15.00/3.0	21.00-35	16	22	400	350	-11
	35-17.00/3.5	24.00-35	12	32	710	659	156
	35-17.00/3.5	24.00-35	WITHOUT DISC A=45 B=795 C=825
	35-22.00/3.5		23	24	483	431	268
	35-22.00/3.5		WITHOUT DISC A=40 B=495 C=826

Wheel Size	Tire	DIMENSIONS mm
Wheel Size	Tire	A	B	C	D	E	F	G
63X36.00/5.0	53/80R63	914.4	190.5	127	1600.2		600.1
63X41.00/5.0	55/80R63	1041.6	192	127	1600.2		661.8
63X44.00/5.0	58/80R63	1117.6	190.6	127	1600.2		701.8

We can supply kinds of OTR Wheel rims from 15" to 63", including 3-piece tye and 5-piece type.
Application:
Earthmover
Loader
Port Equipment
Handling equipment
Grader
Under-Mining Equipment
We also can make according to your request, you can tell us your Moldel of equipment, and Specification of rims you need. We will design for you
Hope we will have a nice cooperation soon!

More sizes we can offer:

Rim Dia.(In)	Wheel Size
25	25×10.00/1.5
	25×11.25/2.0
	25×13.00/2.5
	25×14.00/1.5
	25×15.00/3.0
	25×17.00/2.0
	25×19.50/2.5
	25×22.00/3.0
	25×25.00/3.5
	25×24.00/3.0
29	29×17.00/3.5
	29×22.00/3.0
	29×24.00/3.0
	29×24.00/3.5
	29×25.00/3.5
33	33×13.00/2.5
	33×17.00/3.5
	33×28.00/3.5
	33×28.00/4.0
	33×22.00/4.0
	33×32.00/4.5
35	35×15.00/3.0
	35×17.00/3.5
	35×27.00/3.5
	35×31.00/4.0
	35×27.00/3.5
	35×31.00/4.0
39	39×28.00/4.0
	39×32.00/4.0
	39×32.00/4.5
	39×28.00/4.0
	39×32.00/4.0
	39×32.00/4.5
45	45×36.00/4.5
45	45×36.00/4.5
49	49×15.00/3.0
	49×17.00/3.5
	49×19.50/4.0
	49×22.00/3.5
	49×17.00/3.5
	49×19.50/4.0
51	51×22.00/4.5
	51×24.00/5.0
	51×26.00/5.0
	51×40.00/4.5
57	57×27.00/6.0
	57×29.00/6.0
	57×32.00/5.0
	57×32.00/6.0
	57×32.00/6.5
	57×34.00/6.0
	57×36.00/6.0
	57×44.00/5.0
	57×44.00/6.0
	57×47.00/5.0
	57×47.00/6.0

Prod Model:	35-17.00/3.5
Painting:	Cat Yellow
Material:	Steel
Type:	Rim
Drive Wheel:	4WD
Certification:	DOT
Wheel Hub Diameter:	35inch
Finishing:	Painting
Wheel Accessories:	Lock Ring / Side Ring
Wheel Hub Brand:	Oasisland

Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials

All products we supply will be with quality and guarantee...

For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.

For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.

Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
