Semi-automatic MIG gas shielded welder

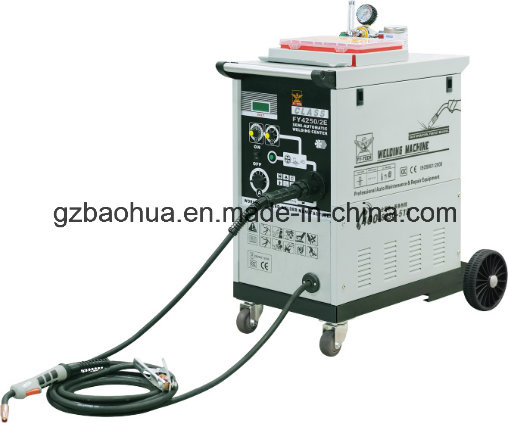

MIG Semi-Automatic gas shielded welder

Description:

The MIG semi-automatic gas shielded welding machines are suitable for all positions and for the highspeed welding of sheet metals and medium plates. These units are mainly used in the welding of ferrous metallic materials such as low carbon steel, low alloy steel, high strength low alloy steels, stainless steels, iron and nickel. With a one piece design, Pulse Width Modulation (PWM) electronic speed control provides an effective, smooth and steady wire feed during the welding process. Adjustable welding and interval times are specifically designed for easy and flexible spot welding of sheet metal. Extensively used in the welding and field operation of steel construction, oil pipelines, car production, shipyards and industrial installations.

Features:

Voltage auto-detect function

Welding gun test function

Digital display

Multi-bridge rectifier

Wire feeder with two-roll dual drive system

Complete with heated regulator

Adjustable dynamic arc characteristic

Good forming capability and quality weld appearance

Specifications:

Model	FY-4250/2E
Input voltage	AC 230-400V Single-phase or 3-phase
Frequency	50/60Hz
Rated maximum supply current	16.8A
Maximum effective supply current	12.5A
Output current/voltage	35A/17V-250A/26.5V
No-load voltage	20-37V
Welding current range	35-250A
Duty cycle	35%
Insulation grade	F
Weldable wire	Low carbon Steel Solid Wireφ0.8-1.0mm
Type	All-in-one
Voltage regulation range	6 steps or 10 Steps
Dimensions	880 x 470 x 890mm
Weight	82KG

Prod Model:	FY-4250/2E
Demension:	880 X 470 X 890mm
Weight:	82kg
Voltage:	AC 230-400V Single-Phase or 3-Phase, 220V 380V 50
Certification:	ISO9001:2000
Usage:	Welding
After-Sales Service Provided:	Overseas Service Center Available
