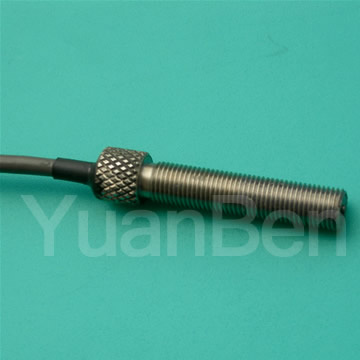

Magnetic Pick-up Gear Tooth Speed Sensor - The Mevs Series

Name: Magnetic Pick-up Gear Tooth Speed Sensor - The Mevs Series
Brand: ibuyautoparts.com
SKU: 641301885
Availability: InStock
Rating: 4.6 (127 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

The sensor is industrial-grade senor, also named magnetic pick-up or passive speed sensor. As a ferrous object approaches the tip of the pole piece, the magnetic field increases and decreases as the object move away from the pole piece, the snap or the rapid change in the magnetic field induces, an AC voltage signal in the coil, with an ideal target and matching sensor.

Item	Parameter	Remark
Model	MEVS-A-0.5-A-500
Product Code	MEVS-08
Main Material	Stainless Steel
Internal Resistance	1.7Kohm±15%
Electrical Inductance	400mH±20%
Load Resistance	100KOhm min
Output Channel	Signal Channel
Sensing Distance	0.5mm max
Measuring Range (Response Frequency)	0-20KHz
Output Mode	sine wave
Signal Amplitude(P-P)	VOL≥0.3V	Interval 0.5mm,50Times/minute
Protection Type	Reverse polarity protection
Insulation Resistance	50MOhm min
Electrical Connection	UL2902/24#(grey)	Shielded sheathed wire
Strength of Extension	5kg	Between wire and housing
Service Life	3Years
Ambient Temperature	0-75ºC
Humidity	90% max
Mechanical Vibration	7g	f=20-400Hz, each direction
Mechanical Shock	10g/16ms	1000times,each direction
Protection Grade	IP65
ESD Protection	4.5KV
Electrical Field Disturbance	200V/m
Installation and Usage	Mounting Thread	M12×1 mounting thread with 2 locknuts
	Measuring Gear (Min.)	Dia. 124,2M,60 tooth, low carbon steel material
	Mounting Direction	Sensor axis vertical to gear normal

Prod Model:	MEVS-A-3-1-6-1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tape:	Magnetic Pick-up Sensor
Type:	Gearbox
Material:	Steel
Certification:	CE
Automatic:	Automatic
Standard:	Standard
Condition:	New

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
