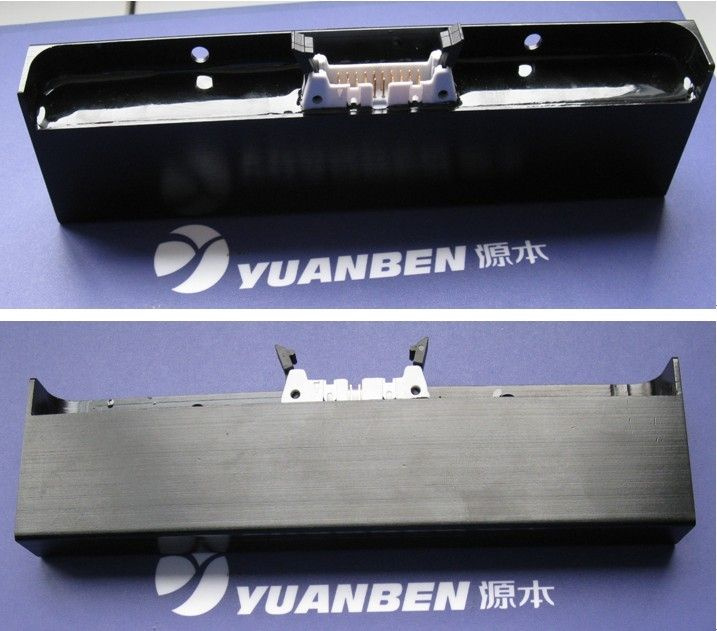

Magnetic Guidance Sensor for Agv Mgs-H16

Name: Magnetic Guidance Sensor for Agv Mgs-H16
Brand: ibuyautoparts.com
SKU: 705145695
Availability: InStock
Rating: 4.8 (107 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

MGS-H16 is a 16 bits multiple switching output type guide sensor for magnetic tape navigation AGV. Built-in 16 bits magnetic switches formed a line in every 10mm pitch detect magnetic flux from a magnetic guide tape. The correlation between MGS-H16 and a magnetic guide tape can be recognized by output ON/OFF parallel bit pattern.

Items
Contents
Power supply
DC+5 to +30V; Ripple 2% max.
Power consumption
35mA max. (at DC+24V)

70mA max. (at DC+12V)

75mA max. (at DC+5V)
Operating Temperature
From -10 to +60degree c
Operation Humidity
From 35% to 95%RH (no condensation)
Storage Temperature
From -30 to +80degree
Storage Humidity
From 35% to 95%RH (no condensation)
Target
MGT-50 -25 series magneticguide tape
Operation Air gap
From 25 to 30mm (with MGT-50-25)
Sensitivity
N-pole; 6mT and over/ S-pole; 6mT and over
Output

Element
16 bits
Pitch
10mm at even intervals
Logic
Normally open
Circuit
NPN open collector (DC30V, 50mA max. )
Residual voltage
2V max. (at 50mA)
Response
1ms

Prod Model:	MGS-H16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Aluminum

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
