Technical parameters:
Rim diameter:10"-28"
Max. wheel diameter:1100 mm
Tire width:3"-15"
Working pressure:8~10bar
Voltage:380V/220V/110V
Power:1.0kw/1.5kw
Machine weight:436kg Application range:
Applicable for changing car tyres whose flatness ratio is relatively small and rim diameter is between 10"-28".
Product features:

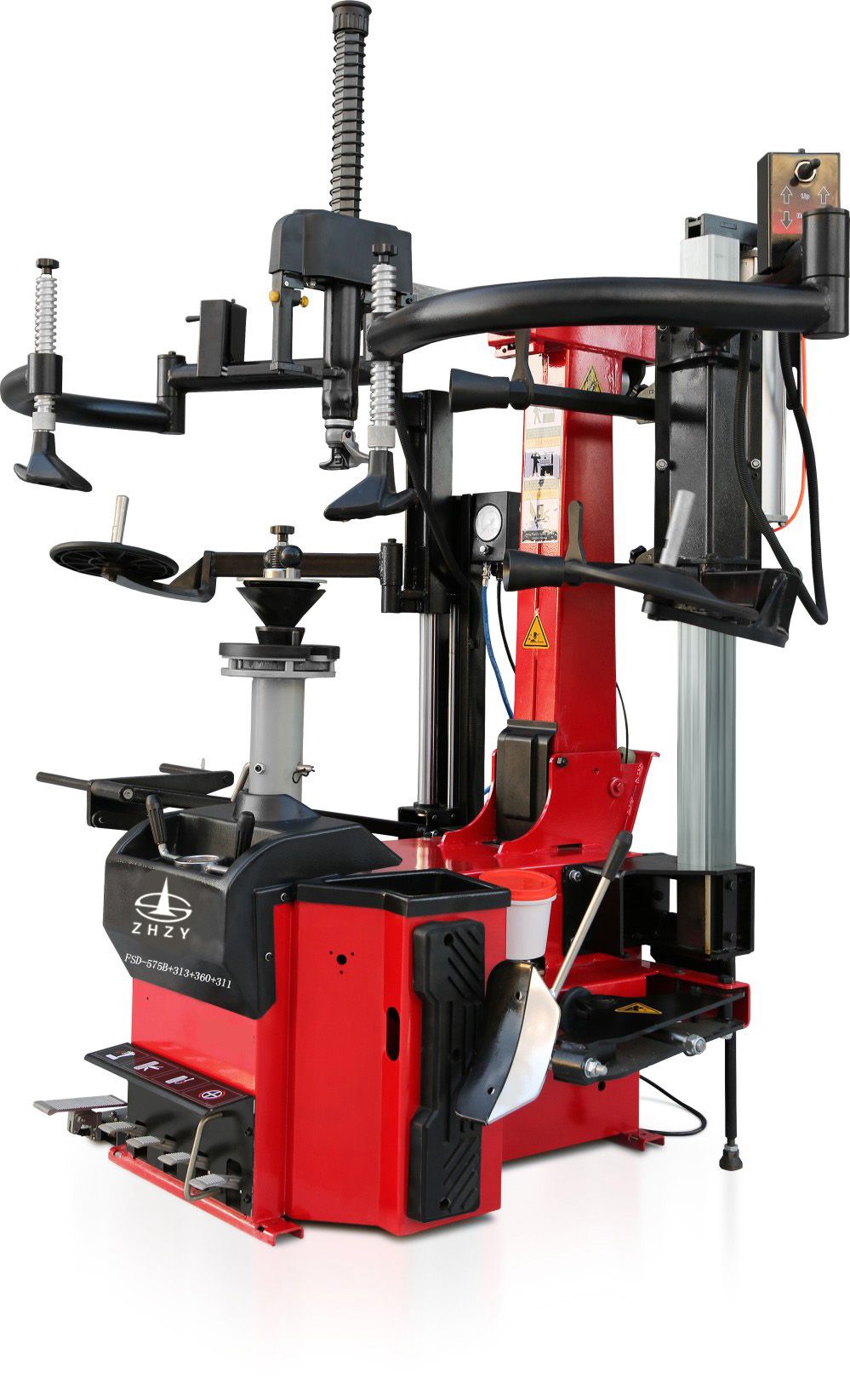

This machine is an electrical integration automatic tire changer, with a claw hook head (hook head auto flip, auto advance and retreat); automatic swing-arm assisting device; pneumatic automatic locking device; pressing-wheel mechanical compression variable angle device; left side also equipped with an axis positioning device, enabling side-arm no gap, no swing, removing tire with ease.
Machine functions:
1.Professional designed claw hook head feature has quick-change hook pad, hook pad made of high-strength wear-resistant nylon, not to hurt the wheels and wear-resistant, no crowbar, when dismantling tires, not to hurt the tires, rims.
2.On the left, it is equipped with automatic lift tire rack, can automatically put the tires on the chuck.
3.Shovel wheel rotation rolling tire, diameter of bead breaker cylinder 160mm, a super-large cylinder, is the largest diameter vertical pressing-tire cylinder in this industry.
4.The pneumatic automatic chuck disc, can make tires automatic clamping.
5.The body dignified, thick plate, rigid super.
Machine quality:
This product gained Europe CE certification. |
4.Replaceable swinging arm pressing head can fix position automatically.
5.Adjusting mobile slider to be suitable for different rim ranges.
6.The motion structure of the four automatic alignment gripping jaws on the turnplate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
7.The once forming mobile slider and the design of processing machinery structure made it not easy to deformation.
8.The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.
9.the round working turnplate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.
10.The tools touching rim directly like changing working head,jaws,crwobar and spade are all equipped with protector,these protectors ensure no hurt to the rim.
11.It has good personal presentation,thick steel plate and super strong rigidness. Machine quality:
This product gained Europe CE certification.
