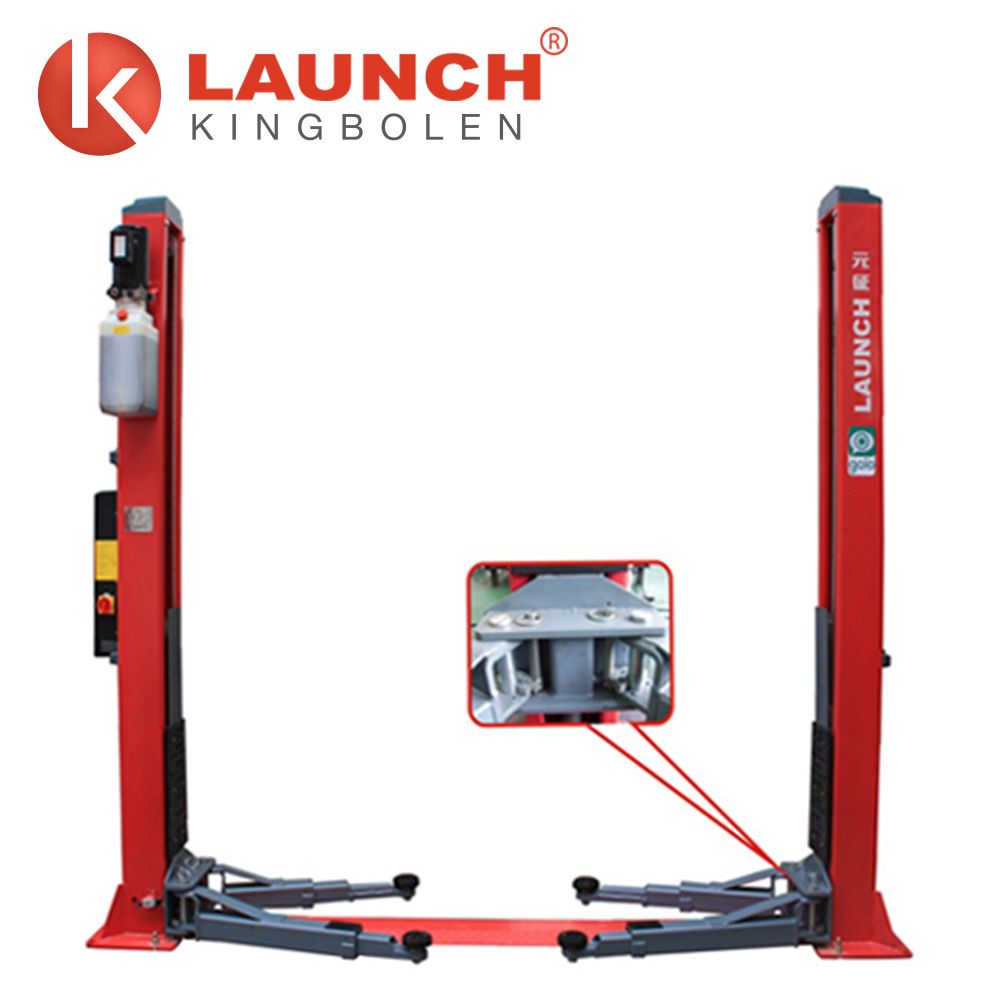

Launch Tlt240sba Luxurious Floor Plate Two Post Lift (Rated Capacity: 4.0Ton) Hydraulic Car Lift

Launch TLT240SBA Luxurious Floor Plate Two Post Lift (Rated Capacity: 4.0Ton) hydraulic car lift

Product Description
Basic parameters of the equipment:




TLT240SBA Features

Fully automatic unlocking safety device is adopted for operating only with UP/DOWN button.
The cable and oil pipe are fully concealed; with decent and elegant appearance.
Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.
24V low voltage control box(IP54 level)ensures operator's safety.
Cylinder travel limit switch effectively protects cylinder and extends its lifespan.
Emergency lowering valve can be manually operated to make lift lower safely in case power is off.
Flow-control valve is deployed to make lift slower or stop lowering for the case of oil pipe explosion ,thus protects operator's safety and vehicle not being damaged.
CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to about 250mm high from ground.
Door rubber pad protects car door from being damaged in collision.

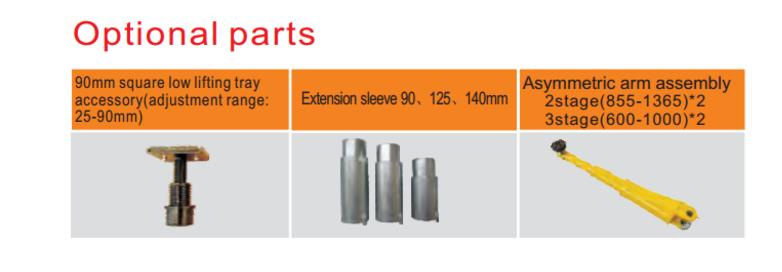

More lifting pads with different height meets the requirements for light lorries and SUVs.
Asymmetric arms are optional.
Passed 115% dynamic loading test and 150% static loading test .
CE certificated.

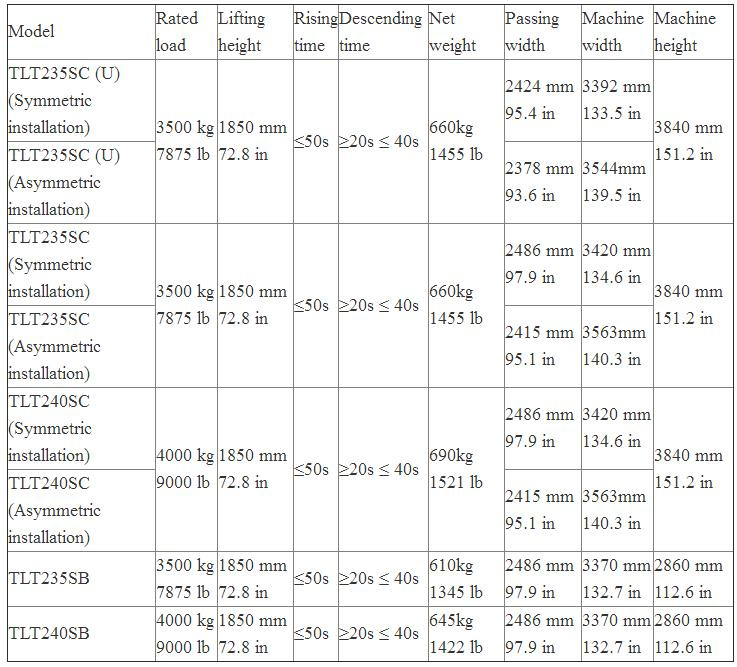

TLT240SBA Parameter


Rated load:    4000kg
Lifting height:    1850mm
Initial height:    110mm
Lifting time:    ≤50s
Lowering time:    ≥20s≤40s

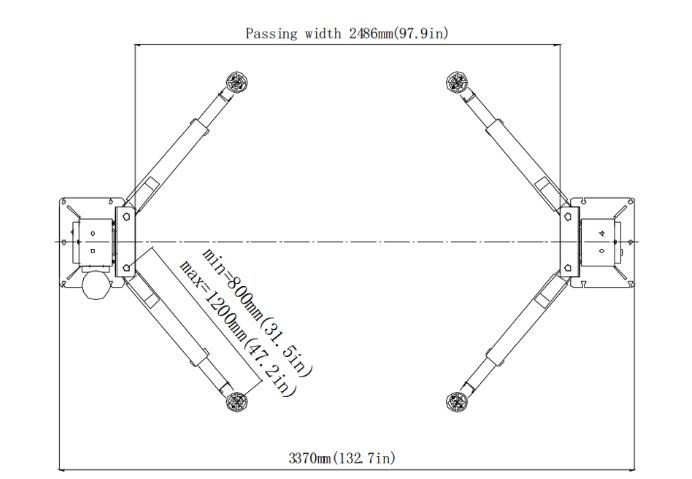

Passing width:    2486mm

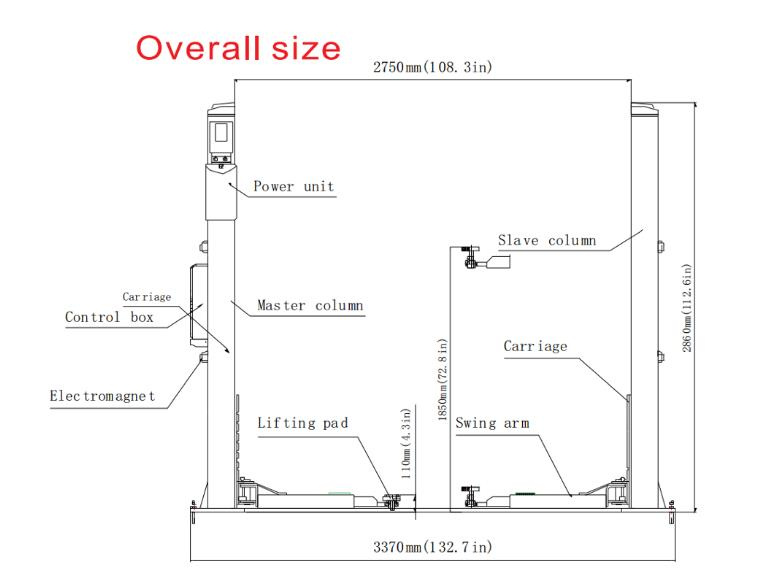

Overall width:    3370mm
Overall height:    2860mm
Motor power:    2.2kw
Motor voltage:    3 phase/380v or Single phase/220V
Working noise:    ≤75dB(A)
Working oil pressure:    16M Pa
