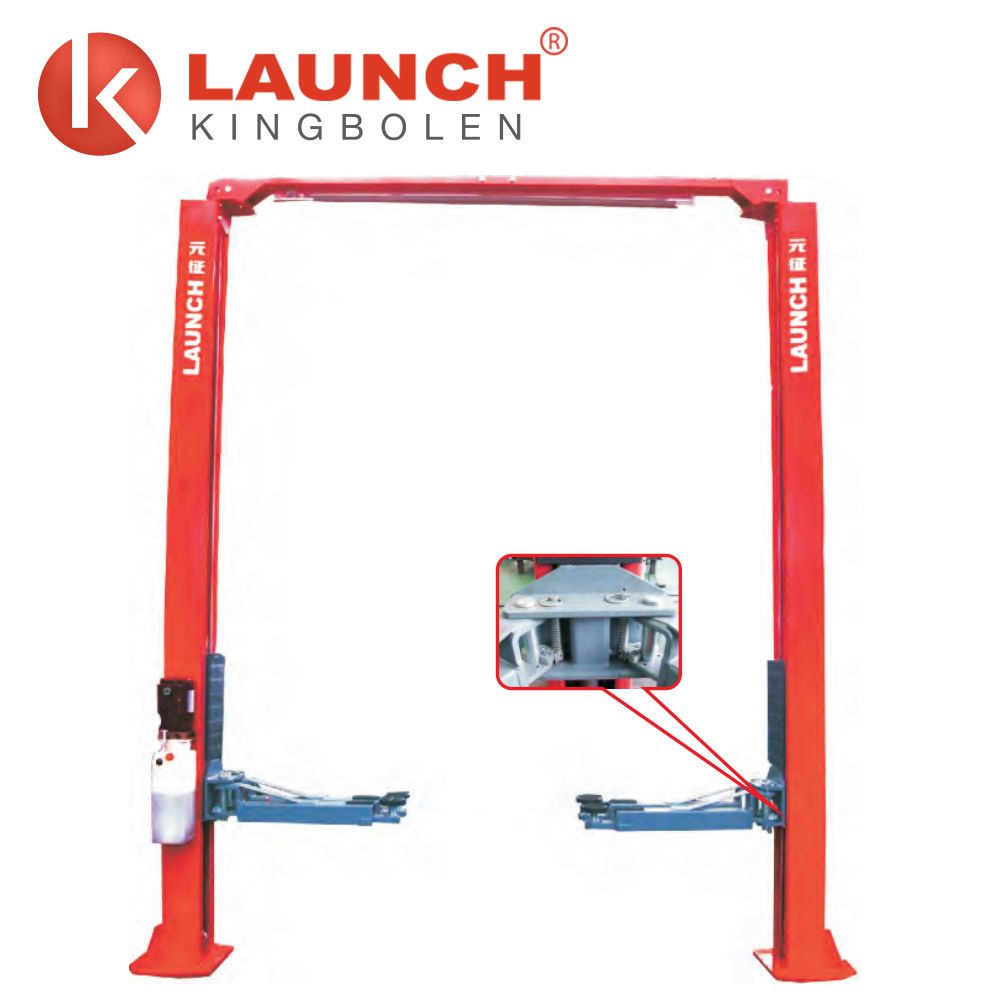

Launch Tlt240sc Economical Clear Floor Two Post Lift (Rated Capacity: 4.0Ton) Car Lift Portable

Launch TLT240SC Economical Clear Floor Two Post Lift (Rated Capacity: 4.0Ton) car lift portable

Product Description
Basic parameters of the equipment:







TLT240SC Features

Bilateral manual safety unlocking system.
The cable and oil pipe are fully concealed; with decent and elegant appearance.
Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
24V low voltage control box(IP54 level)ensures operator's safety.
24V cylinder travel limit switch effectively protects cylinder and extends its lifespan.
Door rubber pad protects car door from being damaged in collision.
More lifting pads with different height meets the requirements for light lorries and SUVs.
Passed 115% dynamic loading test and 150% static loading test .
CE certificated.

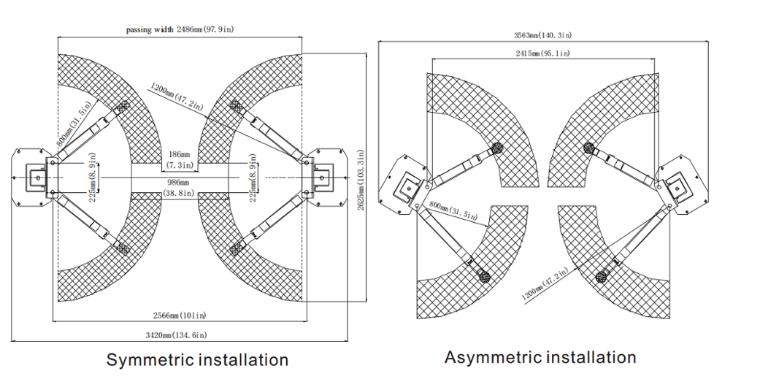

Symmetric and asymmetric installation types are optional. (For SC model)

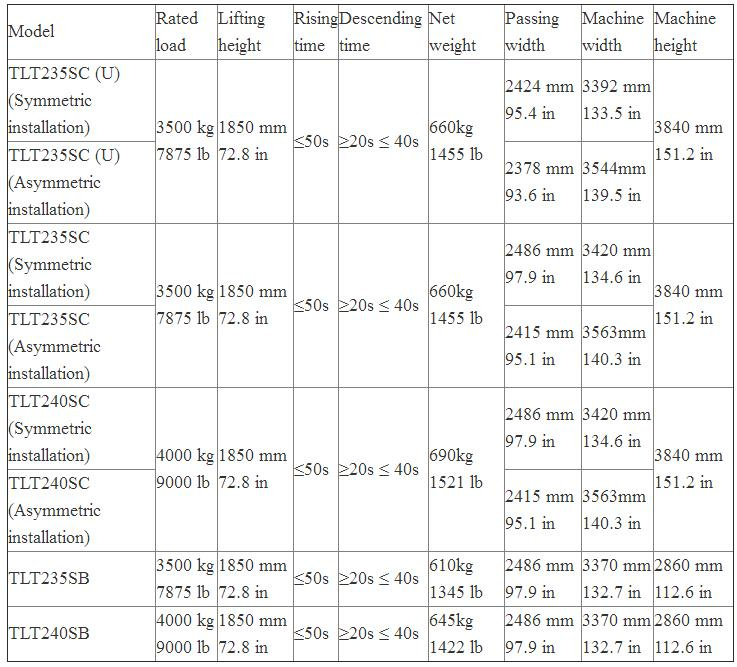

TLT240SC Parameter


Rated load:    4000kg
Lifting height:    1850mm
Initial height:    110mm
Lifting time:    ≤50s
Lowering time:    ≥20s≤40s
Passing width:    2486mm
Overall width:    3370mm
Overall height:    2860mm
Motor power:    2.2kw
Motor voltage:    3 phase/380v or Single phase/220V
Working noise:    ≤75dB(A)
Working oil pressure:    16M Pa
