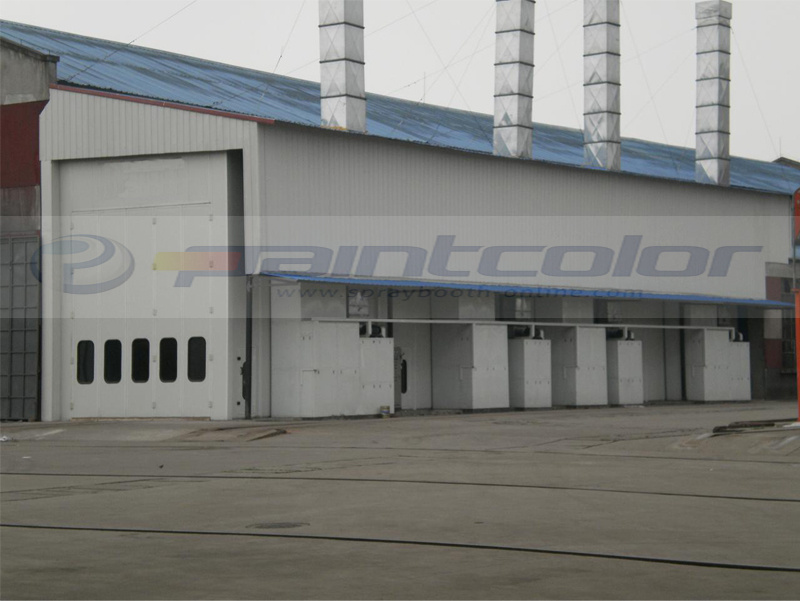

Large Vehicle Paint Spray Booth 20m X 6m X 6m

Name: Large Vehicle Paint Spray Booth 20m X 6m X 6m
Brand: ibuyautoparts.com
SKU: 699900642
Availability: InStock
Rating: 4.3 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Paintcolor Spray Booth Bus and Large Painting Booth

Inner size: 20m X 6m X 6m

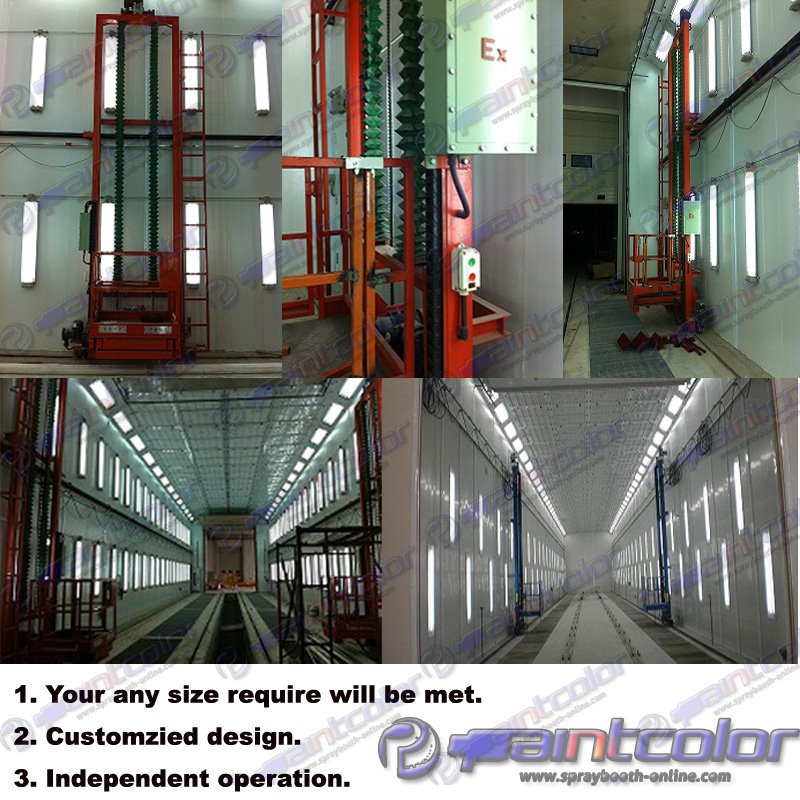

Any booth size request can be met!!!

Paintcolor company quantifies the production of standard spray booth; at the same time, "one-to-one" service is our important and special sale method and service. For different countries and the special requirements of different customers, we make the design and produce the booth based on the size of the site, the workpiece, the type of paint and the budget level. It really 100% stands on your point to solve all the problems. Paintcolor is the one specialty spray booth manufacturer you can not miss.

Specification

technical parameter	External Dimensions(L×W×H)	20156×7906×6800	structure parameter	wallboard thickness(mm)	75
	Internal Dimensions(L×W×H)	20000×6000×6000		wallboard steel plate thickness(mm)	0.5
	entrance door width(mm)	5200		core material	EPS
	entrance door height(mm)	5200		body framework	square steel tube+angle steel
	load inside wind speed(m/s)	≥0.25		support mesh material	square steel tube
	noisy(dB)	≤85		cabinet material	square steel tube+galvanized sheet
	total power(kw)	72		grid	30*5flatiron
	the highest temperature(ºC)	80	illumination parameter	top illumination	36W×104
	dust content	1.4mg/m³		bottom illumination	36W×64
burner parameter	diesel burner style no.	RG5S		tube brand	Philips
	the biggest heat(kcal/h)	260000		illumination(Lux)	≥800
	oil consumption(m3/h)	18~33	exhaust parameter	exhaust pipe dimension(mm)	900×900
	heat exchanger material	stainless steel		exhaust pipe material(mm)	galvanized sheet
	set	3		exhaust pipe height	straight pipe(18m)+3 elbows
inhaling ventilator patameter	inhaling ventilator style	YDW-5.6M	device parameter	device	CE standard
	blower capacity(m³/h)	21500	device parameter	device	CE standard
	power(KW)	7.5	color	selected: white/orange/ blue
	set	6	paint processing mode	dry processing mode: glass fiber cotton filtering and active carbon
exhaust ventilator patameter	exhaust style	4-81-6.3E	paint processing mode
	blower capacity(m³/h)	38000	voltage	380V/3PH/50Hz
	power(KW)	15	total power	105kw
	set	3	total power	105kw

Prod Model:	PC-LSB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty Time:	2 Years
Service Time:	Lifelong Maintenance
Color:	White or Blue
Voltage Requires:	380V/3p, 220V/3p Or220V/1p
Paint Mist Treatment:	Dry-type
Heating Mode:	Diesel
Airflow Direction:	Fully Undershot-type
Certification:	CE
Condition:	New
Type:	Large Spray Booth

Guangzhou Paintcolor Mechanical Equipment Co., Ltd. Started in 1999 and was established in 2005. It's an enterprises engaged in the field of surface treatment technology and focused on painting and coating equipment research, development, production and sales. The company is located in China's most developed industrial areas Guangzhou City, Guangdong Province. It takes 20mins to Guangzhou Baiyun International Airport. The new company Foshan Paintcolor Trade Co., Ltd was established in 2017. It's an independent sale center; Elaborate product promotion for better customer experience and service support.

Our main products includes paint booth, car spray booth, industrial paint booth, powder spray booth, auto shower testing booth, sheet metal machines, reciprocating machine, cyclone powder recovery system, powder gun, and powder coating line. Products have SGS and CE certificate.

The company has consistently adhered to the excellent staff, advanced technology and sophisticated equipment, and strict implementation of quality management system ISO900I. With "accurate, reliable, professional" the spirit of the production and service faith, the company has grown in strength and won the customers trust in the past ten years. Currently our products are sold throughout the country 34 provinces, autonomous regions and municipalities, and exported to the United States, Russia, Germany, Ghana, Indonesia and other countries.

We actively participate in industry exchanges and outreach activities. In the long process of development, we have established long-term good relations of cooperation with many large domestic manufacturers, based on our perfect product quality, good performance, and leading technology.

We have confidence to face the future challenge as we do 'customer first, service first'. If you are finding the cooperator-reducing costs, improving quality and persistent service, 'Paintcolor' is one of the best choose you can't miss.
