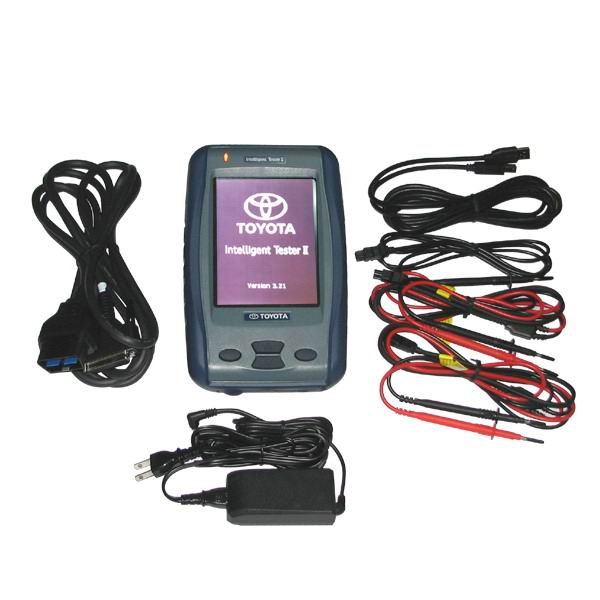

IT2 for Toyota Lexus
CAN Communication DiagnosisDST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
---Easy operation on LCD display with touch panel5.7inch full color display with touch panel assists an easier operation.
---Voltmeter and Oscilloscope Not only communication basis disgnosis [Diagnostic code, ECU data monitor, Active test], but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.
----Data recording to your PCSaved data such as data-list can be downloaded to your PC.
IT-2 Main Unit
---Items Specification Dimensions 145mm (W) X 223mm (H) X 71mm (D) Weight Approx.
---1380g Source voltage DC10-32V Power consumption Normal: 7W (12VDC), Charging: 10W (12VDC) Operation temperature 0~45C Storage temperature -10~60C LCD display 5.7-inch color STN (320X240), transparent type of 256 colors Adjustable brigthness/contrast Touch panel Input: By finger or stylus pen Key Four (up, down, two function keys) Built-in clock For a time stamp PC Communication PC card slot CFx1CH (CF standard type I, II) USB Host: 1CH,
Function:
---1CH Serial 1CH (RS-232C) Vehicle communication CAN,
---ISO9141 Back up power supply Lithium-ion battery 7.4V 1000mAh Recharge hour (at normal temperature) Approximate operating time Approx 5 hours (fully discharge to full charge) 80 minutes (normal operation) Voltage Measurement Function
---Items Specification Maximum sampling rate 250s/sec Input channel 1CH Voltage range (vertical scale) 1V/div, 2V/div, 5V/div Time range (horizontal scale) 100ms/div, 200ms/div, 10s/div Oscilloscope Function
---Items Specification Maximum sampling rate 500ks/sec Input channel 2CH Trigger functions Mode Auto, normal, single Trigger 10%, 50%, and 90% of the monitor Voltage range (vertical scale) 100mV/div, 200mV/div, 500mV/div~10V/div Time range (horizontal scale) 5us/div, 100us/div, 200us/div, ~10s/div (
