Prod Model: |
WLD6000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
External Size: |
7000*5450*3300 |
Certification: |
CE |
Airflow Direction: |
Cross-flow Type |
Heating Mode: |
Electric |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Substrate: |
EPS |
Brand: |
Weilongda |
Product Description

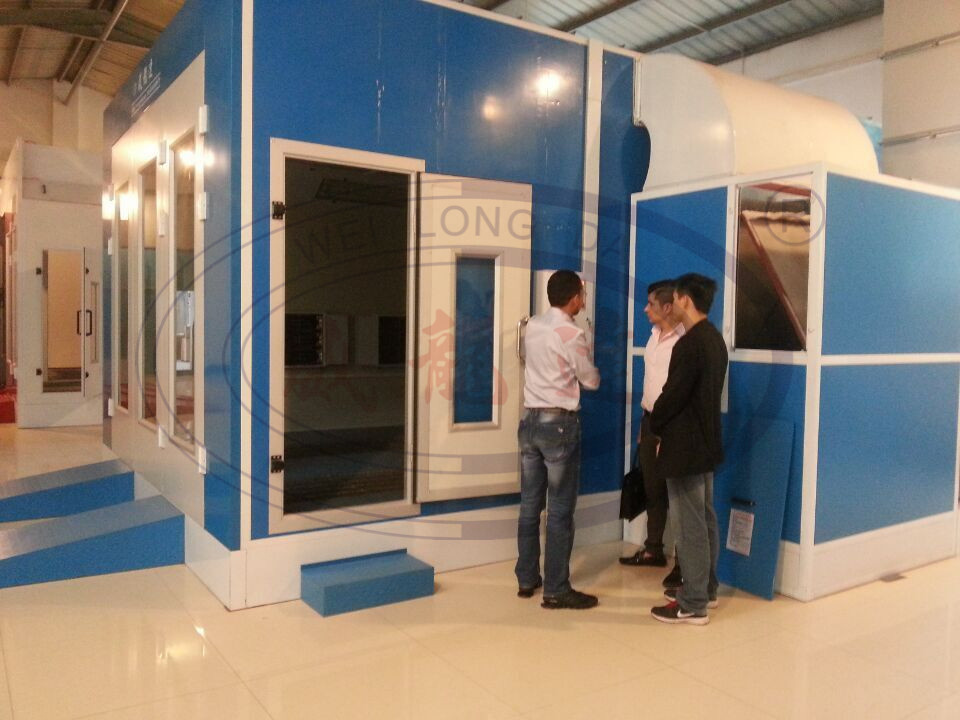

WLD6000 Infrared Lamp Heating Spray Booth
External Size | L7000×W5450×H3250(mm) | Air Flow | 24000m³/h |
Internal Size | L6900×W3900×H2600(mm) | Air Speed | 0.3~0.5m/s |
Main Door Size | W3000×H2550(mm) | Fuel Consumption | 0kg/vehicle |
Total Power | 37KW | Application | Saloon Car/Jeep/Wooden/Furniture |
Wallboard | 50mm EPS, foam density is 14kg/m³. 0.426mm colorful steel skin board with hot dip galvanizing, life-span can reach 20 years without rusting. It keeps a high insulation performance with a low weight. |
Door | 3 folders of front door, made of 0.8mm colorful steel skin board, with aluminum view window, size: W3000×H2550(mm). 1pc of service door, size: W800×H2000 (mm). |
Fan | 2×4KW centrifugal intake fans, introduced from Siemens technology, supply large air flow to the working environment at low noise. |
Air Pipe | Made of galvanized steel sheet, consist of 4pcs of straight pipes 750*750*1000 and 1pc of elbow. |
Air Purification | Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter captures granules larger than 5μm. The air cleanliness in the working environment can reach 98%. Multilayer glass fiber fixed in the air outlet. |
Infrared Lamp Heating System | Consist of 10 sets of infrared lamp cases; each set has a cover and 3 tubes, totally 30 tubes. There is a stainless steel mirror reflector for maximum heat projection efficiency. Infrared heat radiation has a feature of high penetration, efficient, no noise, and pollution free etc. Max. temperature at 80ºC. |
Control Box | Micro-soft computer control box, use high quality electronic component, the temperature and the drying time is accurately shown. Equipped with overheat, overload & short-circuited protected, safe and reliable. |
Ceiling Light | 8 units × 3pcs=24pcs of LED lamps. |
Customize---Basement: Galvanized steel sheet and square pipe construction. 2 rows of grids with floor filter and 3 rows of checkered plates, 2 pieces of ramps.
