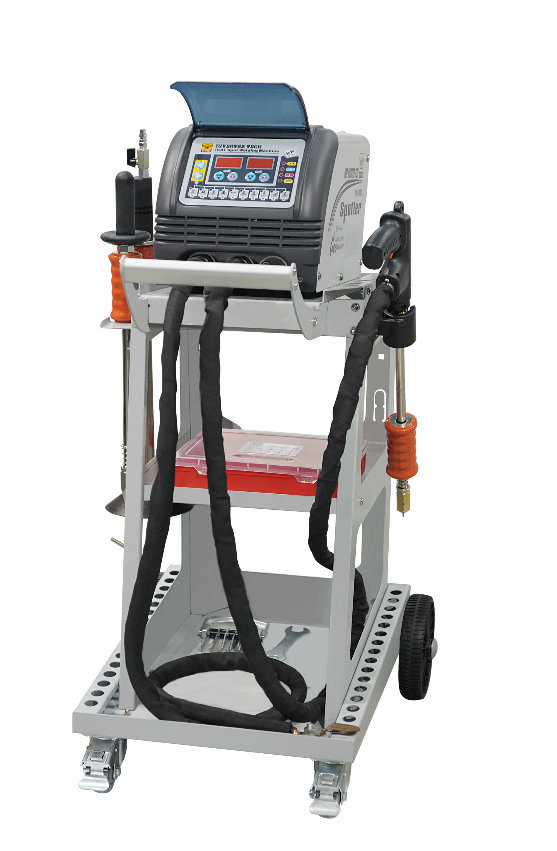

Name: IGBT Inverter Spot Welder/Spot Welding Machine IGBT Dent Puller&Pulling machine
Brand: ibuyautoparts.com
SKU: 812320345
Availability: InStock
Rating: 4.3 (73 reviews)

Price:	US $ 1-2/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Multifunctional Resistance Spot Welder

Description

With the most advanced international IGBT inverter technology and advanced digital control technology and user friendly design, all you have to do is select the welding function corresponding to the workpiece thickness to achieve the best weld quality.
Digital control system offers greater stability of the output power.
Automatic mains voltage monitoring.
Overheat protection.
Stepless current regulation.
Designed to repair different kinds of car steels such as conventional steel, stainless steel, etc.
Various welding procedures are available such as shrinking, washer welding, dent pulling spot welding, flattening, waveform wire welding, stud welding, OT washer welding, triangle washer welding etc.
High precision time and power adjustment system.
Inverter technology with high efficiency, energy consumption can be reduced up to 50%

Technical data

Model
Input voltage:
Input power:
Input current:
Output Voltage
Max welding current:
Operation Way
One-side welding thickness:
Operation way:
Welding time
Dimensions:
Weight:

FY-88A
AC220V/AC380V 50/60Hz
6.4KVA
25A/10A
1-13V
1600A
Electronic Timer Continuously
0.8+1.2mm
Electronic timer continuously
0-99S
370x230x280mm
56kg

Specifications:

Model
Input voltage:
Input power:
Input current:
Max welding current:
Output voltage carbon rod heating:
Output voltage washer melting rate:
Output voltage butt-weld:
One-side welding thickness:
Operation way:
Weld timing range:
Welding current regulation:
Cable length:
Dimensions:
Weight:

FY9000
AC 380-440V 50/60Hz
22KVA
57A
5800A
AC6-10V
AC1-12V
AC1-13V
0.8+1.2mm
BH9000:Electronic timer continuity
0-99min
Stepless
2300+1900mm
720*600*1550mm
86kg

Accessories:

NO.	Accessories	FY-88A
NO.F001	Pneumatic vacuum cupule	1set
NO.F002	pulling hammer with hook	1set
NO.F003	Dent pulling spot hammer	1set
NO.F006	wavy wire	15pcs
NO.F007	carbon rod	5pcs
NO.F008	Spot welding electrode	1pc
NO.F009	carbon rod connector	1pc
NO.F0010	wavy wire electrode tip	1pc
NO.F0011	washer connector	1pc
NO.F0013	Triangle wash connector	--
NO.F0014	Claw	1pc
NO.F0015	Triangle washer	10pcs
NO.F0016	Stud	30pcs
NO.F0017	12mm Washer	15pcs
NO.F0017	10mm washer	15pcs
NO.F0018	Earth clamp	1pc
NO.F0019	Manual cupule	--
NO.F0030	OT Washer	20pcs

Prod Model:	FY-88A
Demension:	556582cm
Weight:	55kg
Usage:	IGBT Welder
Voltage:	220V/380V 50/60Hz
Power(W):	6.4kw
Certification:	ISO9001:2000
Warranty:	3 Years
After-Sales Service Provided:	Overseas Service Center Available
Thickness:	0.8+1.2mm
Input Power:	6.4kVA
