Qingdao Jinlibo Industry And Trade Co., Ltd. >> Hot Sells - English Type Axle 12t 14t 16t

Hot Sells - English Type Axle 12t 14t 16t

Hot Sells - English Type Axle 12t 14t 16t
Price: US $ 450-650/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

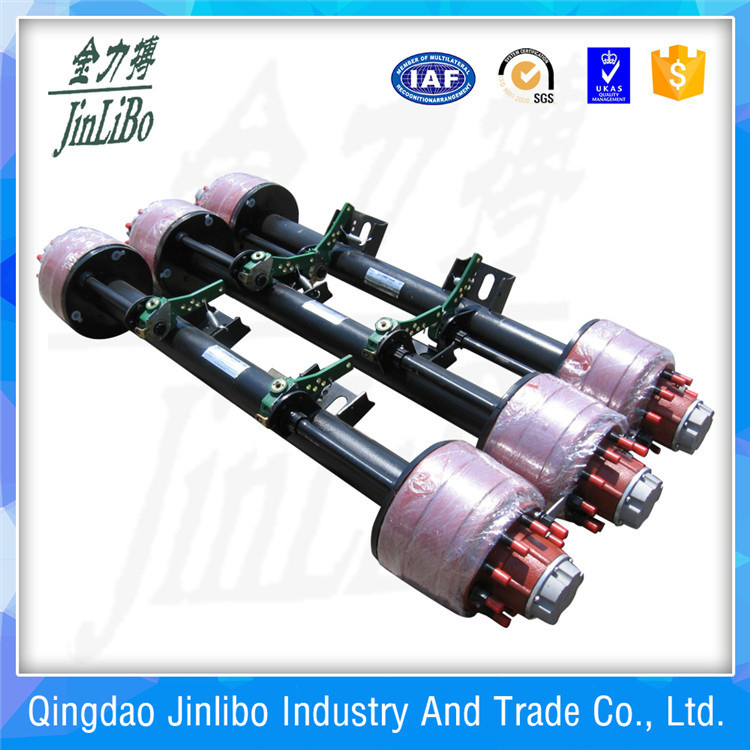

Hot sells - English type axle 12T 14T 16T
1. ourboard-drum
2.round beam or square beam
3.Mobil Grease
4.ABS and T30 brake chamber

Jin Libo semitrailer axle produced by the company, has reasonable structure, good braking quality, high-intensity, big rigidity, long life, as well as strong bearing capacity, and also passed the national authoritative department's monitor: The fatigue life reaches 1.5 million times without damage, which surpasses national standard. At present, the annul productive ability of Jin Libo semitrailer axle has surpassed ten thousands, widespread using in domestic and overseas, and selling in distant markets in Malaysia, Germany, US, Ecuador and so on.

Products features:
1.Special heat-treat,low alloy steel axle beam,it has the vitues of good synthetic
performance,strong loadabilityand lower self weight;
2.High quality alloy solid iserted spindle,through wholy heat treatment,provide
 superior fatigue capacity;
3.High performance premium non-asbstos brake linings,extend service life;
4.Easy for ABSinstallation;
5.Camshaft,maching with special seals,can ensure no entry of the grease into the brake
drum,more safety;
6.New tight fit hub cap have O rings,high property for sealing;
7.Grease lubricant is supplied by Mobil that lengthens the time of free maintenance;

8.Full range of stud fixing such as ISO,BSF,and JAP,it can meet the requirements of various wheel rims.
We have seven types of axles

  1. American type axles (Inboard type and outboard type )
  2. Germany type axles ( Wheel type and spider type )
  3. English type axles ( 8 holes, 10 holes / ISO BSF JAP )
  4. Lowbed axles / concave axles
  5. Agricultural axles ( With brake, Without brake, Stub axles )
  6. Steering axles
JLB English Trailer Axle Specification
TypeBrake Size(mm)Wheel fixingWheel StudBearingTrack Length(mm)Beam Size(mm)Max Capacity(T)
RNY1622I420*220ISO10*M22*335218248 2201491850150*15016
RNY1622B420*220BSF10*7/8''*335218248 2201491850150*15016
RNY18022I420*220ISO10*M22*335218248 2201491850φ150*1817.5
RNY1218J420*180JAP8*M20*28533213 2182481850150*15012
RNY12018J420*180JAP8*M20*28533213 2182481850φ127*1612
RNY1222J420*220JAP8*M20*28533213 2182481850150*15012
RNY1218I420*180ISO10*M22*33533213 2182481850150*15012
RNY1218B420*180BSF10*7/8''*33533213 2182481850150*15012
RNY1220I420*200ISO10*M22*33533213 2182481850150*15012
RNY1222I420*220ISO10*M22*33533213 2182481850

150*150



Q1:Are you a factory?
A:Yes,we are a factory,but not just a factory,as we have sales team,our own offices,and they
all can help the buyers and cooperative partners to decide which products are the best choices
for them,and all your requirements and inquires will be replyed in time.

Q2:What's your Delivery Time?

A:In general, the delivery time is 15-20 days.We will make the delivery as soon as possible with
the guaranted quality.

Q3:What is the convenient way to pay?
A:L/C , T/T,Unionpay,DP are accepted,and if you have a better idea , please be free sharing with us.

Q4:Which type of shipping would be better?
A:Generally,in consideration of the cheap and safe superiorities of sea transportation,we advice
to make delivery by sea.What's more, we respect your views of other transportation as well.




Prod Model: york
Braing: 518445 220149
Track Length: 1850mm
Scale: Heavy Duty
Components: Trailer Axles
Load Capacity: 16t
Qingdao Jinlibo Industry And Trade Co., Ltd. is an enterprise primarily in exporting heavy trailer parts. We can produce many kinds of semi-trailer axle and suspension system, supply various semi-trailer parts, skeleton semi-trailer, landing gear, fifth wheel, steel wheel, brake drum, hub, kingpin, brake chamber, adjustment arm, and so on.

Jin Libo semitrailer axle produced by the company, has reasonable structure, good braking quality, high-intensity, big rigidity, long life, as well as strong bearing capacity, and also passed the national authoritative department's monitor: The fatigue life reaches 1.5 million times without damage, which surpasses national standard. At present, the annul productive ability of Jin Libo semitrailer axle has surpassed ten thousands, widespread using in domestic and overseas, and selling in distant markets in Malaysia, Germany, US, Ecuador and so on.

Jin Libo axle is your wise and beneficial choice.

Our main products.

Germany type axle: 16ton 14ton 12ton

English type axle: 16ton 13ton

American type axle 16ton 13ton

Spoke axle, ZM axle, Agriculture axle, Brasilian axle, spoke half axle and axle without brake

SUSPENSION

24ton 28ton 32ton suspension, spoke suspension and 16wheel 45-100t rigid suspension, 45t 65t cross-core suspension. And machinery suspension(3axle and 4axle)

Product characteristics:

1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.

2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability

3. High performance premiun non-asbestos brake linings, extend service life

4. Easy fir ABS installation

5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety

6. New tight fit hub cap have O rings, high property for sealing

7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance

8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
