Product Description

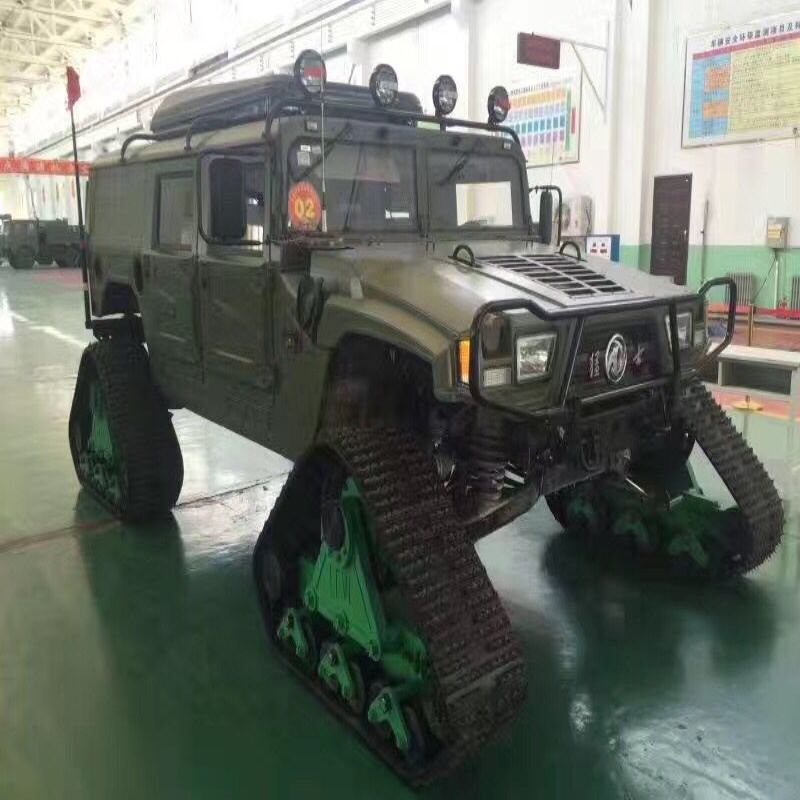

rubber track system for trucks
Truck and heavy duty vehilce
Especially for snow
Short outside lug for High speed on road
Max speed 50km/h on road
Rubber tracks system
Exclusive Anti-toque System-----------------------Rubber Torsion-Anti Torque
Freame Construction-------------------------------- Steel
Weight-------------------------------------------------180kg
Spec(L,W,H)----1445mm X (400mm optional) X890mm
Type of Vehicel---------------------------------------Heavy Duty 4X4Vehicles,off road vehicle, and others
Net weight-----------------------------------------------180kg
Internal Suspension----------------------------------Ft.-Concentric Pivot W/Independent Offset Rocker Arm(for easy steering)
Track Width------------------------------------------400mm
Track Style-------------------------------------------All-Terrain Self-Cleaning
Track material----------------------------------------Rubber with Internal Composite Rods/Cord
Recommended Operating Temperature-----------(-60°C to +55°C)
Ground Contact Length:
(Hard Surface)-----------------------------------41 in.min.(1,040 mm min.)
(Soft Surface)------------------------------------59 in.max.(1,500 mm max.)
Ground Contact Surface Area----------------------2,624 sq.in.min.(16,900 sq.cm min.)
3,776 sq.in.max.(24,360 sq.cm max.)
Ground Pressure-------------------------------------1.4 to 2.8 psi(.0.1 to .0.2 Nm)
Wheel material-------------------------------------UHMW and Rubber
Paint----------------------------------------------------Silver-standard . Other colour-"optional"
Wheel-------------(double shielded & Sealed bearing)
Anti-overturn system available
PERFORMANCE
Recommended Max. speed----------------------50km/h
Terrain----------------------------------------------All Terrain Including Hard Surface
Maximum Distance Off Road------------------Indefinite
Side Slope Capacity------------------------------68%
Shanghai Puyi Industrial Co., Ltd is one of the rubber material supplier in China, and rubber tracks factory in Shanghai, China.
We mainly deal with all kinds of rubber tracks and sell to all over the world!
Rubber tracks complete specifications, advanced technology, reliable quality, can be widely used in construction machinery, agricultural machinery, and snow: Caterpillar, bulldozer, excavator, asphalt paver, (mini) harvester, snow blower, snow, wheelchair, robots, etc. Product quality qualified rate of more than 99.7%.
Its products are exported to Europe, America, Australia and southeast Asia, won the domestic and foreign user' S consistent high praise!
At the same time, we can provide you with other rubber products, rubber tracks, rubber tire (including solid tyre and pneumatic tyre), rubber mat, rubber crawler system.
The company has solid technical strength and complete testing methods, and implement strict quality evaluation from the incoming raw material to finished product delivery. Advanced testing equipment, complete quality guarantee system and scientific management methods to ensure product quality.
We believe, not good price, strive for a good service, things should be the opposite.
Sincerely welcome customers at home and abroad to negotiate business, to create a brilliant future!
We will take the science and technology innovation as the core, continuously consolidate and expand the market, with a more spectacular. "Quality first" is our company' S most important policy.
We will strictly follow the ISO9001 international quality standard keep the same industry leading product quality, and win good reputation both at home and abroad.
In order to promote the company' S image, in the case of strong business competition, we should develop the socialist spiritual civilization construction of the socialist direction, carry forward the yu passion, innovation, integrity, cooperation, make the staff can meet the needs of new aera.
Our company supplys different kinds of Rubber products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
