Blue Color Rubber Track System for Romania Customers1. Wide used on ATV/SUV/snowmobileehicles/trucks as wheels
2. Easy for vehicles to run on hill land, mud road, sand ground...
Rubber track system Material: Rubber/ UHMW-PE
Application: All terrainason
Warranty: 12 months

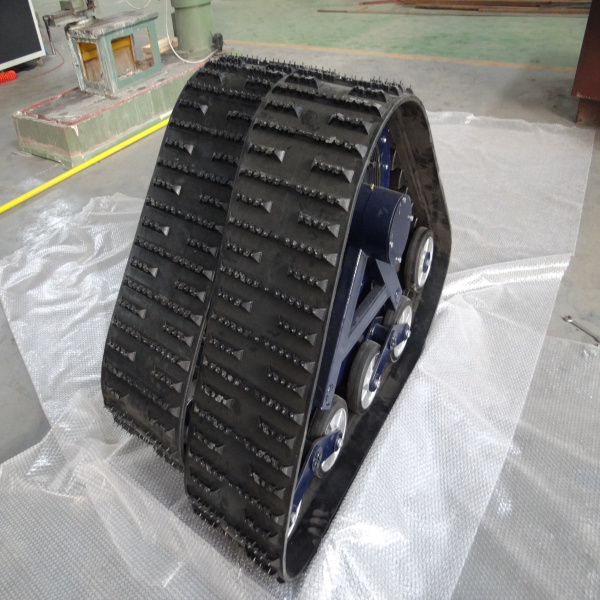

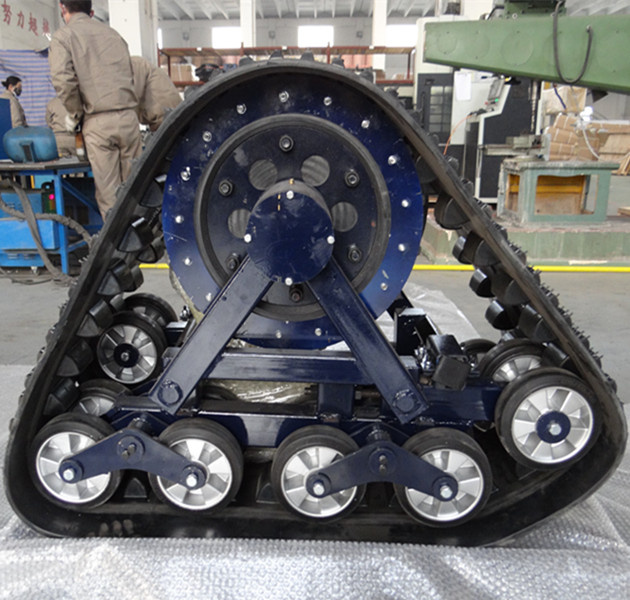

The rubber track system is mainly composed of the rubber track, triangular frame,
driving wheels,Supporting wheels, guide pulley as well as connecting plated device...
It's an integrated mechanical assembly which can make your car run well at all terrain whatever
is Snow, mud, sand, loose surface, even hill terrain...
We can also design the mounting hole according to your wheel bolt pattern so that you can
Install it on your car directly without using complicated tools...
The features and advantages of the rubber track system:1. The track system is light weight building, using lightweight wheels and structural steel frame or
Aluminum frame, that keep the track units durable, without sacrificing performance.
2. Our track system is all season tracks, molded rubber composite design provides
additional stability.
The track is designed without perforated openings, preventing debris from entering through the
Track. Specially designed internal drive lugs continually work on sand, snow, mud out of the
track,Keeping Track and framework clear of debris.
WORKSHOP:
Specification:N/M
| Model: | PY-320 | Length: | 1110mm |
| Packing: | Simple/Cardboard Box/Iron Frame | Width: | 320mm |
| Height: | 810mm |
| Material: | Alufer | Net Weight: | 100KG |
| Ground Contact Length: | 850mm | Load bearing: | 3T |
| Sprocket Center Distance to the Ground: | 555mm |
| Links for Rubber Track: | 33 |
| Applicable Type of Vehicles: | Off-road vehicles/pickup truck/3.0 tons of the following vehicles |
| The highest speed limit requirements: | 50km/H |
| Remarks: a set of includes four separate assembly;The size of the form of three high for a single assembly. | For off-road product, but do not represent can pass any terrain, you like take care of your car, please take care of this product |
Case:
Caution: First, please take good care of our goods, like taking good care of your vehicle; Second, the installation of this product, this is normal that response surface friction coefficient increases, there will be the vehicle is coasting distance plummeted;so the shift need to turnafter express speed to 3000 rpm, rapid shift. Third, when you install the product driving off-road and complex road conditions, please first in 30 kilometers, traffic is a good location to ensure driving skilled and products running in. Four, 100 kilometers exercise mileage, speed should not more than 30 km / h; Five, after mounting assembly recommends a maximum speed of the vehicle is 50Km / h. Six, in the 100 km run-in period, to be checked once every 10 kilometers tension, such as crawler loose, please tighten the tensioner; Seven, do not speeding, overloading driving, press the product model assembled vehicles equipped; Eight,Track do not contaminated with oil and corrosive liquids; Nine, is prohibited beyond product temperature and environments; Ten, please clean out the outer tread Track stones and other impurities in when not in use; Eleven,Do not use a metal weapon damage crawler; Twelve, Non-supporting non-flame retardant crawler traveling in the fire; Thirteen, small speed when turning Do not more than 5 km / h; Fourteen, non-static pivot turn; Fifteen, check the connection plate screws and other parts of the screw is loose, the installation is close, if loose, please fasten in time; Sixteen, when not used for long, put the product stored in a cool environment. Details:Shipping Marks: TerRes-QColor: OrangeConnection plate data:1 - 12mm2 - 139,7mm (6x139,7 polt pattern adapter )3 - 110mm4 - 180mm (this is just my one of customers' reference information) Customer Notes: 1, due to the Buyer before and after the installation is not anti-turn device, causing the product, damage to the vehicle,Seller shall not be liable.2, install the product, greatly enhanced by the performance of the vehicle, but does not mean the vehicle can travel any road unconditional situation, there are still certain restrictions by. Specific conditions of use, please contact me OK. We will have to provide the material before and after the turn.
