High Resolution Waterproof Eyeball Mini Universal Car Rear&Side View Camera with Super Wide Viewing Angle

Name: High Resolution Waterproof Eyeball Mini Universal Car Rear&Side View Camera with Super Wide Viewing Angle
Brand: ibuyautoparts.com
SKU: 693767632
Availability: InStock
Rating: 4.8 (26 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

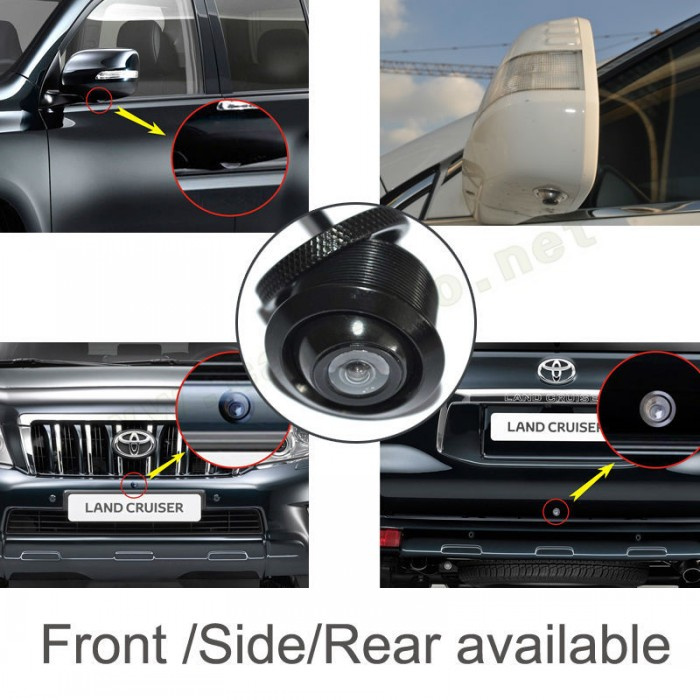

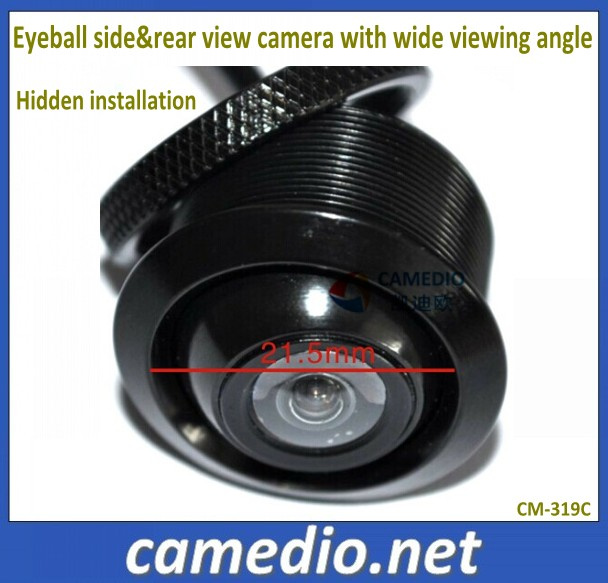

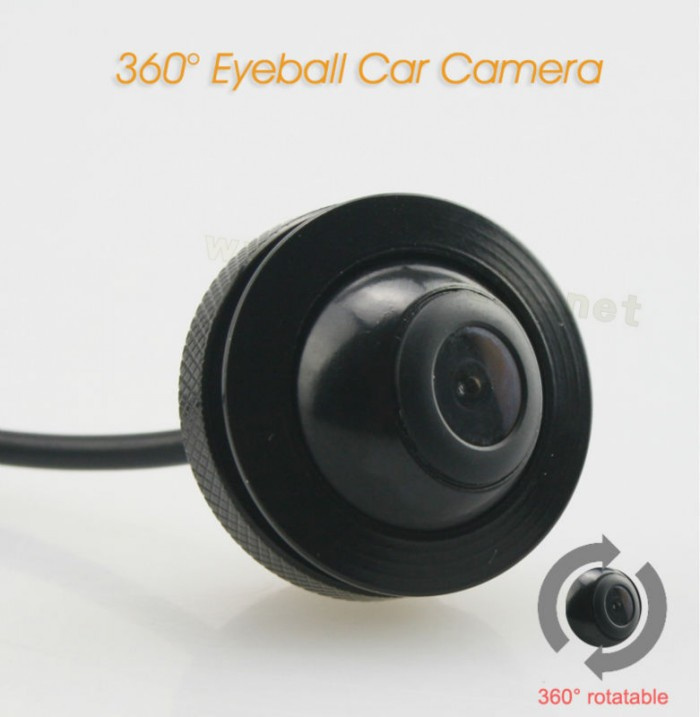

High qulity universal car camera with cmos image sensor fit for rearview&side view

Feature:
1. Super wide angle(170 degrees)
2. Waterproof camera for long-term outdoor usage
3. Smaller size and embedded design for more convenient installation
4. The emb mini universal night vision car reversing camera edded camera is designed for car rear view system
5. Two size for your selection.

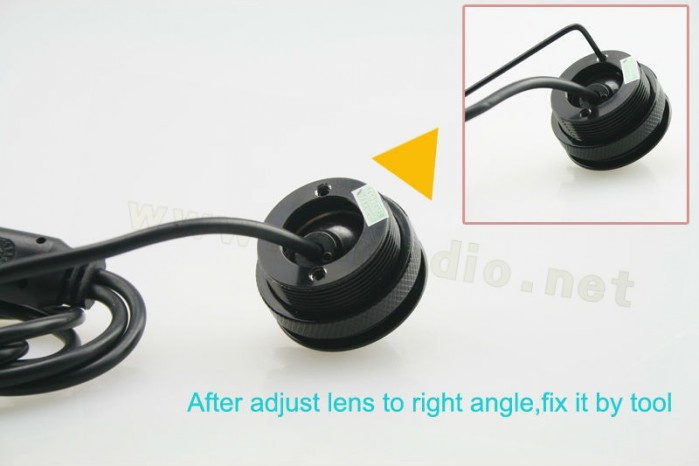

6. Spiral and Slot design can be exchange for dual usage.
7. Elegant and small size design
8. Great for hidden installation
9. CCD and CMOS sensor for fitting various markets.

Detailed parameters:
Image sensor: PC1089 (CCD) / PC7070
Signal System: N/P
Horizontal Resolution(TV lines): 520 / 480 TV lines
Effective Pixels: 628*582 pixels /510*492 pixels
Lens viewing angle: 170 degrees
Horizontal viewing angle: 130~140 degrees
IP Rating: IP67
Video Output: 1.0Vp-p, 75 ohm
Current Consumption: 130-150 ma
AGC & BLC: Auto
S/N ratio: Better than 48dB(AGC-OFF)
Shutter speed: 1/50(1/60)-1/100, 000sec
Minimum Illumination: 0.4Lux/F1.2
Power Supply(DC): 12V(or DC12V)
Operating Temperature(Deg. C): -20+75(RH95% Max. )
Storage Temperature(Deg. C): -30~+85(RH95% Max. )

Special Function(1): Car reversing distance reference sign(optional)

Special Function(2): Mirror image and original image(optional)

Accessories:
AV cable 6 meters, 1.5 meters DC line, Manual.

Packaging:
* Neutral white box packaging.
* Full Packaged (can be customized). Any demands can be met with.

Prod Model:	CM-319C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor Available:	PC1030/PC7070/Mt9V136/PC1089
Camera Degree:	170 Degree
Waterproof:	Yes
TV System:	PAL/NTSC
Minimum Illumination:	0.1lux
Pixels:	682*504
Resolution:	420tvl/480 Tvl/520tvl Optional
Interface:	RCA
Chip:	CMOS
Waterproof Grade:	IP68
Definition:	480TV Lines

Shenzhen Camedio Technology Co., Ltd. Is a professtional manufacturer of Car electronical products, which is located in Shenzhen, the center of electronic products in China. Our mainly products include car camera, car monitor, 2.4GHz Wireless system, rear view camera, parking sensor, rear view system etc.

Camedio Tech has been in these business lines for about 5 years and established long business relationship with regular customers from Asia, America, Europe, Middle-east, Africa and other regions. Up to now, Our company has been dedicated to the development, design and production of a wide rang of standard and customized car electronics.

We are always trying our best to benefit our customers and to provide our customers with quality products and best service, we have professional teams of designing, production and QC. Many of them are skillful and experienced engineers. We have the competitive price based on high quality and with an excellent after sales service and a series of warranty service to benefit our customers, all those make us won good reputation and respect in the domestic and oversea markets.

"Quality, Reputation and Service come First" is the key to Camedio success. The trust of customer at home and abroad has been gained for the reliable performance and smart design of the product of company.

Welcome for your valuable inquiry and visiting our company at any time!
