Heavy duty ultrasonic cleaning equipment, car cleaning machine for car parts, carburator, engine
Why stand over a pan of solvent and breathe fumes while you scrub? Let our machines do the work for you - and get every nook and cranny scrubbed clean.
These ultrasonic systems are designed for the serious professional who needs to degrease metal parts quickly and effectively. We offer two configurations, and will be happy to put together a specially sized system with accessories to suit your needs. Ultrasonic cleaning is perfect for carburators, engine and other intricate metal parts, because it can reach into the tiniest openings and blind
Ultrasonic cleaning is primarily an aqueous tank system that uses ultrasonic energy to remove dirt, grease, oil, And baked-on carbon from parts. Contaminants such as paint, rust, glued-on gaskets, and heavy layers of bakedonCarbon can also be removed by ultrasonic cleaning but require more aggressive chemistries. Unlike someOther cleaning processes, ultrasonic cleaning will not damage intricate, lightweight, or easily damaged parts. Parts that have a tendency to tightly nest will shadow each other, reducing cleaning efficiency.
How it Works
Ultrasonic cleaning works by producing sound waves in liquids. The waves consist of both high- and low-pressureFronts. The low-pressure fronts are small enough to cause bubbles to form. The high-pressure fronts cause the bubblesTo collapse. The expanding and collapsing bubbles loosen contaminants on the part surface and the chemical cleanersEither dissolve or segregate the free contaminants.
As with sound waves in air, ultrasonic sound waves can be varied by both frequency (pitch) and amplitude (power). Higher frequencies will produce smaller bubbles and lower frequencies will produce larger bubbles. Larger bubblesWill typically dislodge large particles and smaller bubbles small particles. Typical industrial systems are either 28kHz or 40 kHz, which can handle the particle sizes in the range of normal automotive cleaning. Ultrasonic cleaningSystems with a much higher frequency are used in the computer industry where tiny particles need to be removed.
Configuration of Equipment
The most basic piece of equipment for ultrasonic cleaning is a stainless steel tank with an ultrasonicTransducer and power supply (frequency generator), and is usually referred to as a benchtop unit. MoreAdvanced units may include features such as heating, filtration, mechanical agitation, rotating baskets, Ultrasonic power controls, oil skimmers, water level controls, and frequency modulators to improveSolution degassing.
No More Solvents!
A carburetor remanufacturer formerly used manual solvents parts washers to clean Carburetors. This was a very labor-intensive operation, requiring a technician to spend between 15-20 minutes per carburetor. In many cases, the carburetor then required additional cleaning in a DIP tank containing caustic soda, followed by a hot water rinse.
Application:
They deep clean to remove dirt, grease, waxes, and oils used from Switches, Gears, Nozzles, Relays and motors, Bearings, Sieves, Metal, Ironware, plastic parts and assemblies.
They will be good servers for yours and make the procedure more smoothly!
Remark:
1. Tank size and other functions can be custom made
2. Customer logo is acceptable
3. Packing by wooden case
4. Lead time is negotiable according to qty. And custom made requirements
Model: Skymen™ |
JTS-1012 |

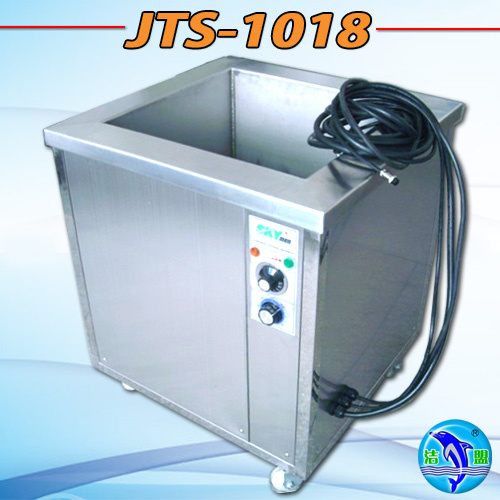

JTS-1018 |
JTS-1024 |
JTS-1030 |
JTS-1036 |
JTS-1072 |
TANK'S WORKING DIMENSION
(mm) |
L1 |
355 |
406 |
500 |
500 |
500 |
720 |
|
W1 |
305 |
305 |
355 |
406 |
460 |
680 |
H1 |
355 |
460 |
500 |
500 |
550 |
620 |
OVERALL DIMENSION (mm) |
L2 |
535 |
586 |
680 |
710 |
710 |
940 |
W2 |
485 |
485 |
535 |
586 |
640 |
860 |
H2 |
750 |
680 |
720 |
720 |
770 |
850 |
TANK'S TOTAL CAPACITY |
38L |
56L |
88L |
101L |
126L |
303L |
TANK'S MATERIAL |
SUS304/SUS316L |
IN-TANK SURFACE FINISHING |
Hard-Cr Plating Treatment (20+ microns) |
HOUSING'S MATERIAL |
SUS304/SUS316L |
ULTRASONIC FREQUENCY* |
28kHz / 40kHz |
ULTRASONIC TRANSDUCER |
12 |
18 |
24 |
30 |
36 |
72 |
ULTRASONIC OUTPUT POWER (MAX.) |
600W |
900W |
1200W |
1500W |
1800W |
3600W |
ELECTRONIC GENERATOR |
KG600 |
KG900 |
KG1200 |
KG1500 |
KG1800 |
KG3600 |
Build-in |
Separate |
HEATER'S (HOT PLATE) POWER |
1.5kW |
3kW |
4.5kW |
9KW |
CLEANING Machine
POWER REQUIREMENT |
AC 220V / 240V
AC 380V, 3 phase
AC 415V, 3 phase |
GENERATOR’S POWER REQUIREMENT |
---- |
AC 220V / 240V, 1, 13AMP |
NEW PRODUCT
68kHz / 80kHz / 120kHz are also available |
Skymen Cleaning Equipment Shenzhen Co., Ltd. is a manufacturer all types ultrasonic cleaner from China. Our product include bench-top ultrasonic cleaners, mini household smart ultrasonic jewelry cleaner, industrial large tank ultrasonic cleaning machine, and submersible ultrasonic transducer pack system. Capacity from 0.6L to 5000L or even more bigger. With powerful transducer and qualified design circuit control to reach very good cleaning result. Mainly used in car part cleaning, tools cleanig, fruit&vegetable cleaning, hardware cleaning, commercial kitchen cleaning, etc...We also do OEM&ODM business for ultrasonic cleaner dealers and agents. And we sincerely welcome overseas ultrasonic cleaner distributers and wholesalors to establish business relationship.
Quality control:
1. Raw Material Inspection:
QC and engineers would make strict inspection of the raw material step by step to ensure quality product.
2. Sales Checking:
We salesman would also check the production process to ensure machine 100% according to the sample.
3.100% product inspection:
100% products checking during production, Each unit would be under testing at least 4hours before packed.
4. We always try to do perfect:
Everyone in Skymen would try best to solve problems together with you.
