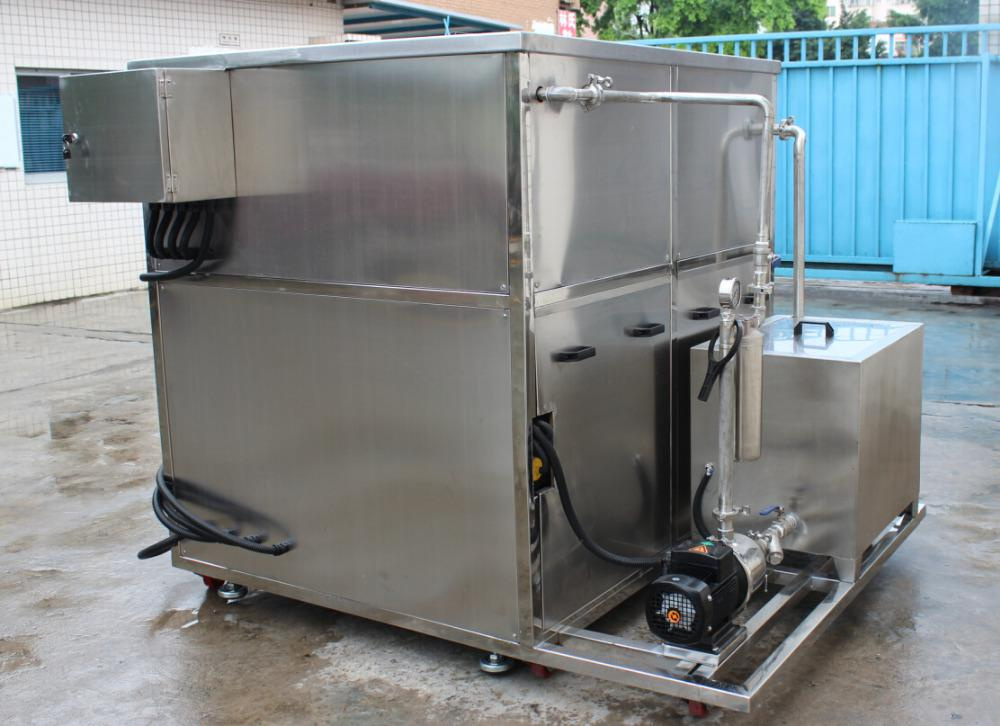

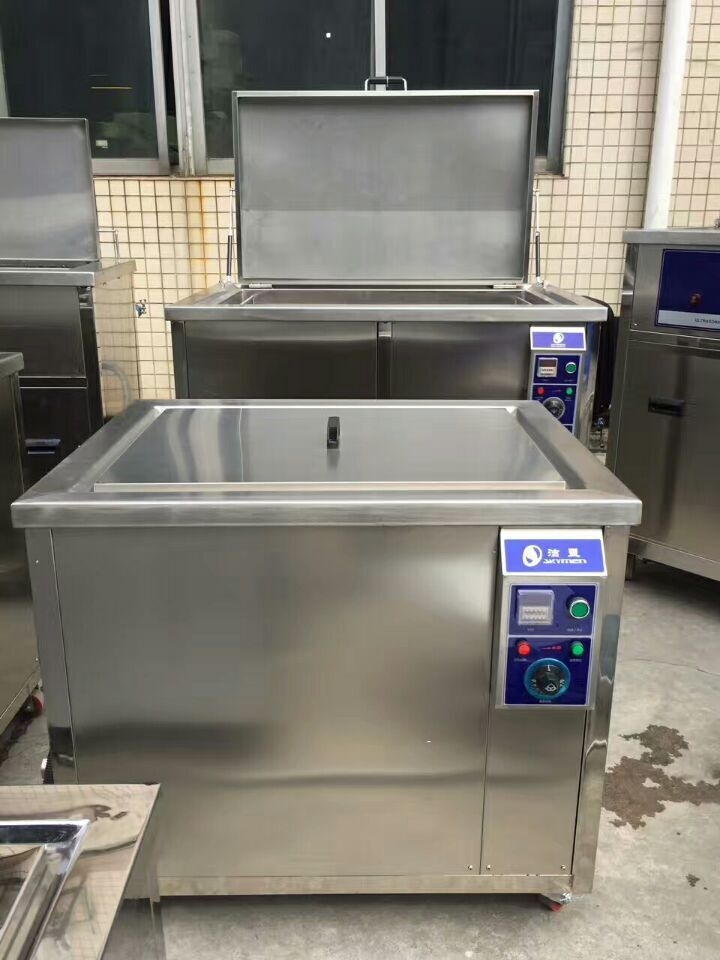

480Volt 3 Phases 450Liters or 118gallons Ultrasonic Musical Instrument Cleaner
Application:
SKYMEN specifically designed to clean the internals and externals of a ultrasonic cleaning machines are used by many manufacturers to clean injection moulds, dies and tools. ,fast and effectively. With the unique cleaning techniques this machine incorporates one large higvehicle radiators, industrial compressor radiator and hydraulic coolersh powered cleaning tank . Generators control , and pump and filtration system. Best cleaning the ultimate ultrasonic cleaner for vehicle radiators,
Specification for Brass Musical Instrument cleaning :
tank size | 1210x610x610mmmm |
capacity | 450liter |
ultrasonic power | 4500W |
heating power | 12kw |
ultrasonic frequency | 40khz |
material | SUS304/316L |
warranty time | 1 year |
Competitive Advantage:
- Material : SUS304/316L with 2mm thickness
- 15 years experience engineer will design the machine for you
- Filtration System: for heavy duty oil removing, cycle cleaning solvent, prevent second polution and better cleaning effects.
- PCB Board: manufactured by Skymen factory, more stable
Skymen JTS Series:
Skymen Model No. | JTS-1030 | JTS-1036 | JTS-1060 | JTS-1072 | JTS-1108 | JTS-1144 |
TANK DIMENSION(mm) | 500x406x500 | 500x460x550 | 700x650x650 | 1000x600x600 | 1000x900x600 | 1200x1000x800 |
OVERALL DIMENSION(mm) | 680x586x850 | 680x640x900 | 900x850x1000 | 1200x800x950 | 1240x1140x950 | 1440x1240x1150 |
MAX. CAPACITY | 101L | 126L | 295L | 360L | 540L | 960L |
CONSTRUCTION CASE | SUS 304 (MIRROR SHINING IMAGE AVAILABLE) |
CONSTRUCTION TANK | SUS 304 / 316L |
ULTRASONIC POWER(MAX.) | 1500W | 1800W | 3000W | 3600W | 5400W | 7200W |
ULTRASONIC FREQUENCY | 28kHz/40kHz/68kHz/80kHz/120kHz |
MAX. HEATING TEMP. | 20~80C ADJUSTABLE |
HEATING POWER | 3KW | 4.5KW | 6KW | 9KW | 12KW | 24KW |
TIMER | 0~30min adjustable |
DRAIN | ¾" VALVE |
LID & BASKET | TAKE-OFF / STRUT LID; SUS 304 |
CLEANING TANK'S POWER REQUIREMENT | AC220V/380V/415V/440V. 3 |
GENERATOR'S POWER REQUIREMENT | AC110V/ 220V / 240V, 1 |
GENERATOR | WITH SWEEP MODE AND REMOTE CONTROL |
FEATURES | MULTI-DIRECTION CASTORS WITH BRAKE; 1 YEAR WARRANTY |
Optional | FILTRATION SYSTEM (PUMP, SUS FILTER, OIL CATCH CAN) |
Skymen 3 stage unit (multi-tank) ultrasonic cleaner machine
Industry | Cleaning objects |
jewelry | Jewelry, diamond, gold, silver products, |
machinery | Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools |
electronics | PCB board, electronic parts, TV parts, computer parts |
Auto industry | engine parts, gear box, shock absorber, auto nozzle, cylinder, valve |
Dental& Medical | dental tools, medical tools, injector, surgery tools, dropper, glass container |
Plating& painting | polishing parts, SUS cutter, tableware, plating |
Food industry | Oven tray, boiler, bottles, bottle cap, filters |
Optical& watch maker | optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand |
textile | spinneret plate, rubber parts, plastic molds, toy |
others | seal, flapper, coins, pottery, bank card, IGBT |
FAQ:
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
Q: What cleaning solution should I use?
A:A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
Q: Is rinsing after cleaning cycles?
A: Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.
Skymen Cleaning Equipment Shenzhen Co., Ltd., which engaged in ultrasonic cleaner field for more than 10 years. Our main products are ultrasonic cleaner with different capacity.
Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality product and after sales services is available from us.
Not only standard ultrasonic cleaner, any non-standard can be design by our engineer.
Suggestion and drawing is professional for you.
Welcome to visit our factory, provide your precious guidance and conduct business negotiation.

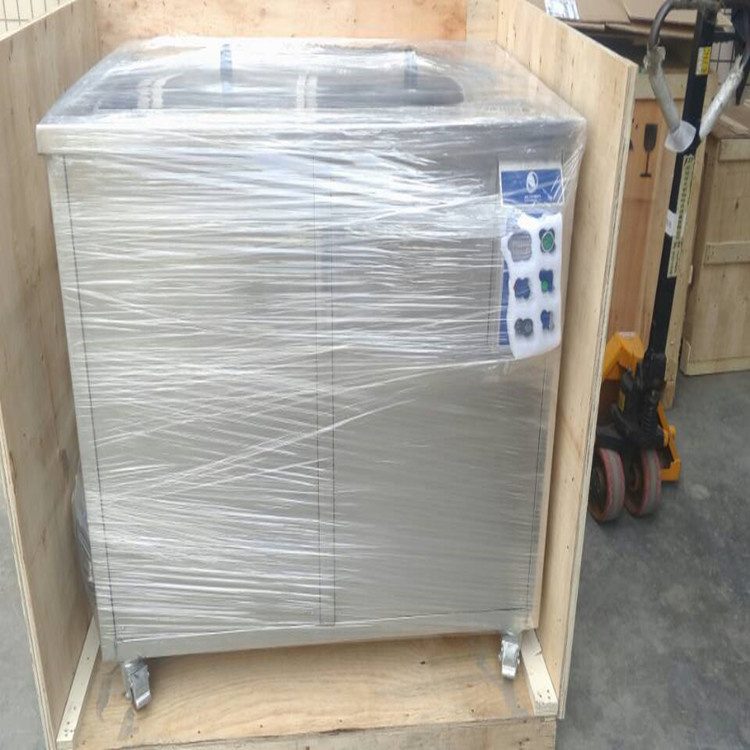

8. Package and Delivery
It will be packed by a wood case with shipping standard.
Pictures attached:
Delivery: it will be sent 20days after your payment.
9.Company Profile
Skymen is the leading manufacturer of ultrasonic cleaner for 10 years. We are offering kinds of specifications and types of ultrasonic cleaners.In North America, the U.S., Canada, Europe and Britain, France, Belgium, Germany, Spain, Japan, China and Asia are selling.
We manufacture products include household ultrasonic cleaners, desktop cleaning machine, small medical ultrasonic cleaners, electronic ironware cleaning machine, jewelry ultrasonic cleaners, ultrasonic vibration plate, etc, we also provide custom service, can offer different specifications according to the customer demand of ultrasonic cleaners.
Company headquarters is located in Asia's financial center Hong Kong, factory set up in shenzhen, China, the geographical position is superior, the beautiful environment, convenient transportation. The company for global customers to provide quality ultrasonic cleaning machine series products, diverse styles and specification complete, the quality is reliable, the price is reasonable, welcome to contact with us, sincere cooperation with you!
10.Certification
ISO certificate:
CE,RoHS,FCC
High Tech Company Certificate
Skymen Cleaning Equipment Shenzhen Co., Ltd. is a manufacturer all types ultrasonic cleaner from China. Our product include bench-top ultrasonic cleaners, mini household smart ultrasonic jewelry cleaner, industrial large tank ultrasonic cleaning machine, and submersible ultrasonic transducer pack system. Capacity from 0.6L to 5000L or even more bigger. With powerful transducer and qualified design circuit control to reach very good cleaning result. Mainly used in car part cleaning, tools cleanig, fruit&vegetable cleaning, hardware cleaning, commercial kitchen cleaning, etc...We also do OEM&ODM business for ultrasonic cleaner dealers and agents. And we sincerely welcome overseas ultrasonic cleaner distributers and wholesalors to establish business relationship.
Quality control:
1. Raw Material Inspection:
QC and engineers would make strict inspection of the raw material step by step to ensure quality product.
2. Sales Checking:
We salesman would also check the production process to ensure machine 100% according to the sample.
3.100% product inspection:
100% products checking during production, Each unit would be under testing at least 4hours before packed.
4. We always try to do perfect:
Everyone in Skymen would try best to solve problems together with you.
