Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd. >> Heavy-Duty Brake Shoe Riveting Machine

Heavy-Duty Brake Shoe Riveting Machine

Heavy-Duty Brake Shoe Riveting Machine
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: QM-24B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: Pneumatic
Max Rivet Diameter: 10mm
Air Source Pressure: 0.8-1MPa
Stroke: 35mm
Name: Heavy-Duty Brake Shoe Riveting Machine

Product Description

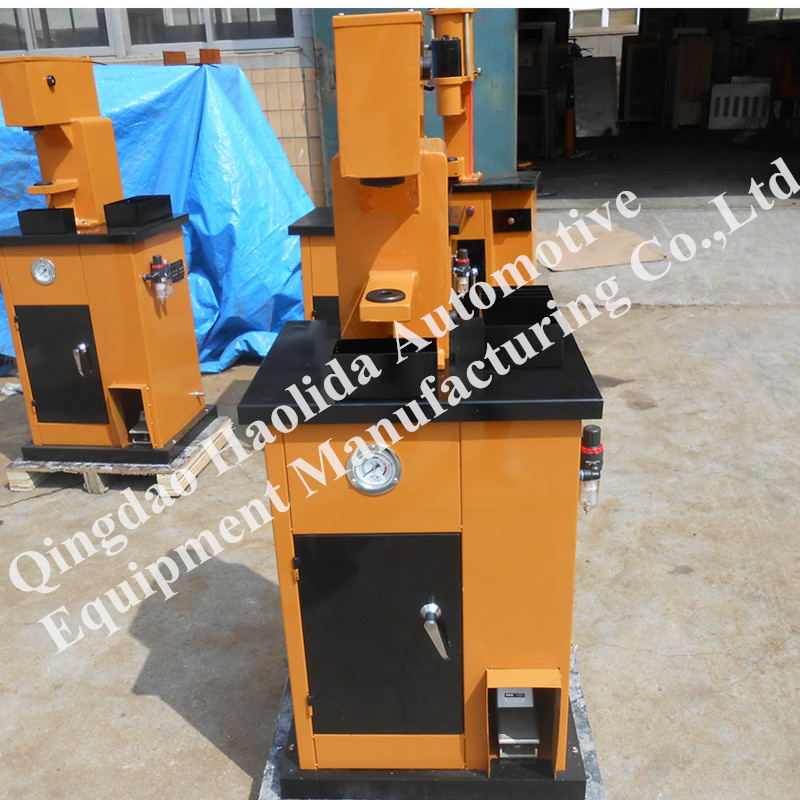

                                 Heavy-duty Brake Shoe Riveting Machine

General introduction
1.It uses compressed air as power source (air pressure is adjustable)
2.It is used for riveting rivets of all kinds of brake shoes\brake disc\brake drum\brake lining \ brake pad and other auto parts

Advantages:
1.      It uses air source, it is safe to operate
2.      It is suitable for heavy duty truck brake lingings,etc
3.      Pressure can be adjusted according to size of the rivets
4.      With oil water seperator
5.      With grease filling holes
6.      Pedal room is big
7.      With cabinet for accessories
8.      Good discount based on order quantity


Technical parameter:


Model no
QM-24B
MaterialMetal plate
PaintingHigh quality paint
ColorBlue&black
Max rivet force60KN(6T)
Working air pressure0.8-1Mpa(Adjsutable)
Suitable rivet diameter3-10mm
Stroke of the riveter40mm
Accessories:
Riveters: 6pcs, used for working on Φ3, Φ4,Φ5,Φ6,Φ8,Φ10 rivets
Puncher: 2pcs, used to remove old rivets 3mm-10mm
Others you may want to know:
MOQ1set
Warranty period12 months
Payment termT/T 100% in advance
Delivery time7 days after receiving downpayment
HS code8463900090
Packing sizesExport plywood case
N.W: 69KG
G.W: 101KG
650*550*1360mm=0.49CBM
20'' container60pcs/100pcs


Why Choose us:
1.      32 years' design,development and produce experience
2.      Professional R&D team
3.      Strict QC
4.      A good pre-sale and after-sale service
5.      Can design and make according to customer's requests

Company Introduction:
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment.
Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. We obtained tens of national patent on some related products. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.

We are located in Qingdao city, Shandong province, with convenient transportation access. Our factory is thirty minutes' drive to Qingdao airport, and two hours' drive to the loading port.

All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have passed the ISO9001-2008 international quality system authentication. We gained many honors in automobile maintenance and repair industry, we are a standing member of the China Automobile Maintenance and Repairing Equipment Trade Association, One of the ten most influential company in automobile maintenance and repair industry, we are also a designated factory by General Armament Department of CPLA.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Our sales network covers North America, South America, European, South Africa, Russia, Asia, Middle East, etc.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are also sincerely looking for steady and long-term cooperative local agents in different areas. We are looking forward to forming successful business relationships with new clients around the world in the near future.
