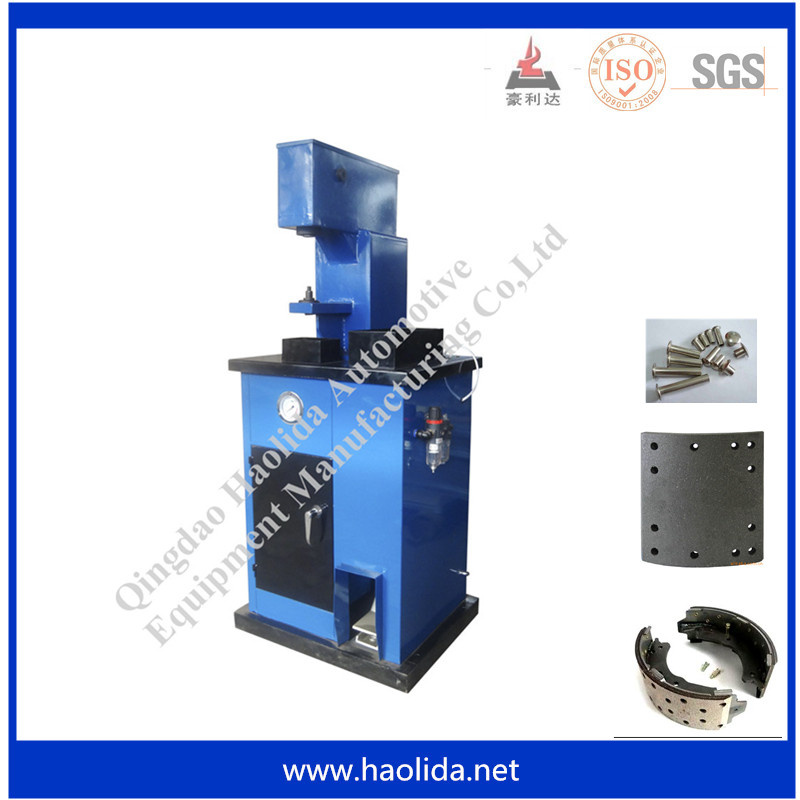

QM-24B Model Pneumatic Brake Shoe Rivet Machine
General introduction1.It uses compressed air as power source (air pressure is adjustable)2.It is used for riveting rivets of all kinds of brake shoes\brake disc\brake drum\brake lining \ brake pad and other auto parts Advantages:1. It uses air source, it is safe to operate2. It is suitable for heavy duty truck brake lingings,etc3. Pressure can be adjusted according to size of the rivets4. With oil water seperator5. With grease filling holes6. Pedal room is big7. With cabinet for accessories8. Good discount based on order quantity
Technical parameter:
| Model no | QM-24B |
| Material | Metal plate |
| Painting | High quality paint |
| Color | Blue&black |
| Max rivet force | 60KN(6T) |
| Working air pressure | 0.8-1Mpa(Adjsutable) |
| Suitable rivet diameter | 3-10mm |
| Stroke of the riveter | 40mm |

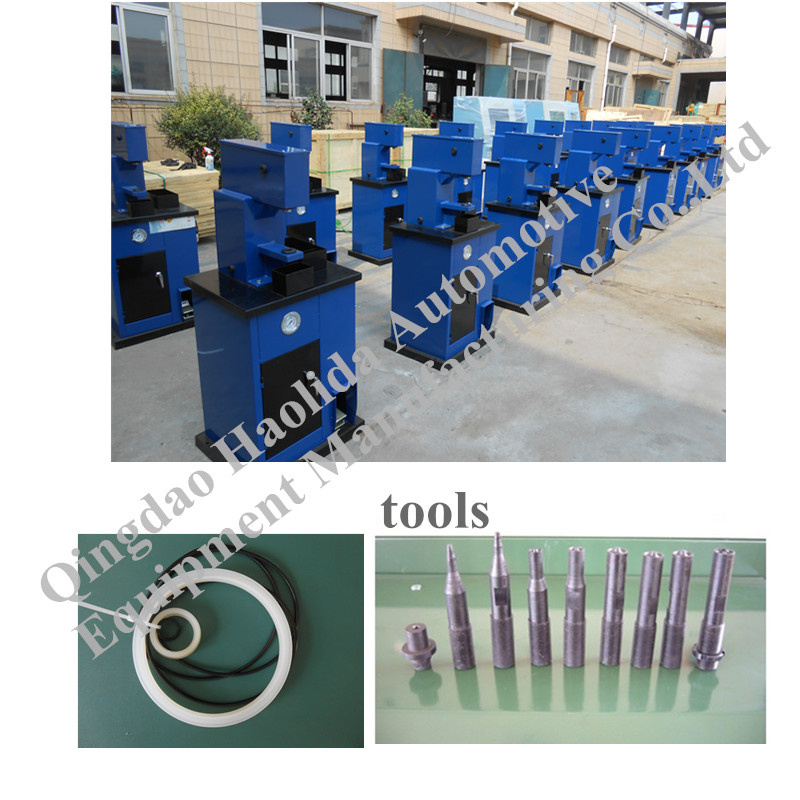

| Accessories: |
Riveters: 6pcs, used for working on Φ3, Φ4,Φ5,Φ6,Φ8,Φ10 rivets
Puncher: 2pcs, used to remove old rivets 3mm-10mm |
| Others you may want to know: |
| MOQ | 1set |
| Warranty period | 12 months |
| Payment term | T/T 100% in advance |
| Delivery time | 7 days after receiving downpayment |
| HS code | 8463900090 |
| Packing sizes | Export plywood case
N.W: 69KG
G.W: 101KG
650*550*1360mm=0.49CBM |
| 20'' container | 60pcs/100pcs |
Why Choose us:
1. 32 years' design,development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer's requests
Company Introduction:
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment.
Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. We obtained tens of national patent on some related products. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
We are located in Qingdao city, Shandong province, with convenient transportation access. Our factory is thirty minutes' drive to Qingdao airport, and two hours' drive to the loading port.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have passed the ISO9001-2008 international quality system authentication. We gained many honors in automobile maintenance and repair industry, we are a standing member of the China Automobile Maintenance and Repairing Equipment Trade Association, One of the ten most influential company in automobile maintenance and repair industry, we are also a designated factory by General Armament Department of CPLA.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Our sales network covers North America, South America, European, South Africa, Russia, Asia, Middle East, etc.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are also sincerely looking for steady and long-term cooperative local agents in different areas. We are looking forward to forming successful business relationships with new clients around the world in the near future.
