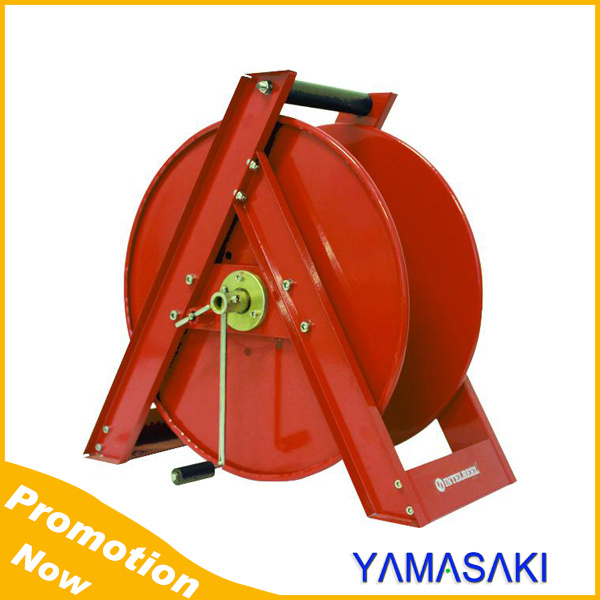

Hand Portable Light Cable Reel

Prod Model:	Series 410
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/4", 5/16", 3/8", 1/2",3/4",1"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red

Product Description

Features of  reel
C410 is a portable audio and video reels with holding the handle,
hand drive operation is very convenient; C420 is hand-driven cable reels, with the motor drive can be added to achieve
automatic retractable cable is ideal for the production job site choose.

The Specifications:

Application	Operating Voltage VAC/VDC	Operating  Current          A	cable length m(ft)	cable core	Cross-sectional area mm² mm² (SINGLE)	reel model (with cable)	reel model (without cable)
Power cable	220	10	150(492)	2	1.5	-	C410021500
Power cable	220	10	100(328)	3	1.5	-	C410031500
Power cable	220	16	100(328)	3	2.5	-	C410032500
Power cable	380	16	100(328)	4	2.5	-	C410042500
Power cable	380	16	80(262)	4	4.0	-	C410044000
Power cable	220	10	300(984)	2	1.5	-	C420021500
Power cable	220	10	200(656)	3	1.5	-	C420031500
Power cable	220	16	200(656)	3	2.5	-	C420032500
Power cable	380	16	200(656)	4	2.5	-	C420042500
Power cable	380	16	160(524)	4	4	-	C420044000

To ensure the safe use of reel, it is necessary to do:
    Will temporarily need not operation area or redundant hose or cable recycling to coil plate, this not only make
the scene becomes neat and orderly, prolong the service life of the hose or cable, but also avoid the trip may
be caused by hose or cable safety accidents.Hoses or cables in recycling, it must be under the condition of the
human assisted to slowly recover the reel, in so doing, reflected the operating personnel's professional quality,
and to a kind of hoses, cables and equipment protection.

Warning:Is strictly forbidden in the absence of human assisted by a spring's own natural retract hose or cable tension into
the roll disc, it is very dangerous, is likely to cause the damage of the reel internal spring, and the hose or cable rapid retract
time of spin phenomenon caused by the unexpected injury.Therefore, you must put an end to this kind of behavior!
Caution:Installation suggest not more than 4.5 m.
To ensure the quality of the normal function of the reel, and life, must be regular maintenance. Because the roll drive part is installed in the open or half open space use, inevitably affected by dust and water vapor erosion, so it requires that we regularly float ash on the surface of cable reel or hose, and the possibility of contamination, the oil for polishing the mop, keep the surface clean and dry. Need to periodically check whether the install reel and other parts of the fastener is loose, if there are any loose phenomenon, tighten needs in a timely manner, so as not to affect the normal use of the reel, which may lead to the production delays.
Hose and cable or provided by the users themselves, or install bought by manufacturers, their active suppliers use fixed number of year, more than life need to be replaced in time, to ensure the normal use of equipment.
We supply the related service parts which are suitable for all sold reels. Service parts at extra cost, beyond the quality guarantee period, for more details please consult the manufacturer or its official authorized dealers, agents.
