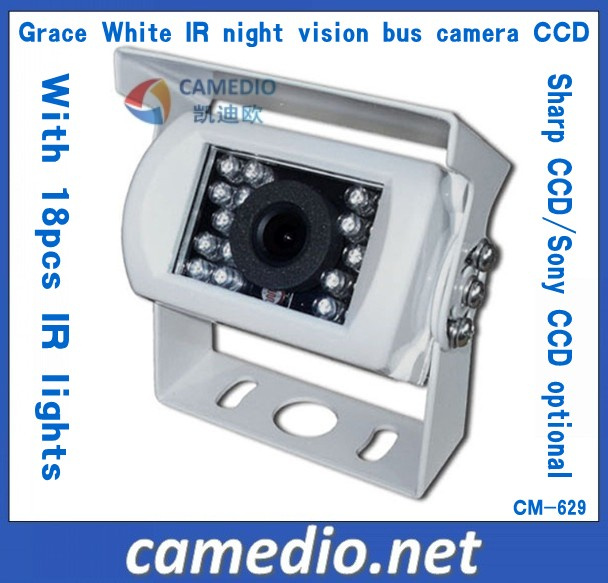

FEATURES:
1. ) 18 infrared lamp used in dark up to 10-15 meters
2. ) Can be adjusted at Multi-level angle
3. ) 120 degree diagonal angle lens, ensuring car's rear side for effective reversing and parking operation
4. ) 100% complete waterproof
5. ) Top quality camera. Easy and safe to mount
6. ) Waterproof, shockproof, anti-interference
7) SHARP CCD/SONY CCD optional
8) 24V voltage optional
9) RCA/AVIATION connector optional
SPECIFICATIONS:
Image Pick-up Device: CMOS, 1/4"CCD, 1/3"CCD can choose
Lens: 2.8mm/120° , 3.6mm/92° Can choose
TV system: PAL/NTSC can choose
Effective pixels LPAL: 512× 582/NTSC: 512× 492
Sensing Area: 9.6um× 6.3um
Horizontal Resolution: 420TVlines
Usable Illumination: 0.2LuxF/1.8, 0Lux
Electronic Shutter Time NTSC: 1/60-1/100, 000sec/PAL: 1/50-1/100, 000sec
Video Output: CVBS1.0Vp-p, 75ohm
Sync System: Internal Synchronization
Power Supply: DC8-12V 120mW
Operation Temperature: -20º C~+75º C(RH95%Max. )
Storage Temperature -40º C~+85º C(RH95%Max. )
Packing Color box
Basic feature:
1. This tilt body style camera compatible with most rear view systems or car LCD screens that support camera or video RCA/4-pin aviation connector input.
2. The camera made out of high quality components, 120 degrees wide angle lens and very sharp color CCD chip.
3. The body of the camera features weather proof, shock proof constriction with night vision infrared LEDs and light detection sensor.
Advantage:
1. Front casing----Material of PC/ABS could resistant high temperature(stock in 85° C for 4hours) as well as flame retardant.
2. Lens----We are questing for perfect definition, lens are made of 5G Full-glass.
3. Image Sensor----HD CCD
4. Rear casing----design of plug in / punch.
5. PCB board----Self-developed circuit board with PCB environmentally friendly materials, no pollution, more durable. With overload protection function, and prevent short circuit. Even if wrong interface connection for wiring, it won't bring damage to the product.
Packaging
Display-box: 133*82*77mm-0.040kg
Carton box: 420*280*160mm-0.42kg-20PCS
420*280*400mm-0.63kg-50PCS
560*360*390mm-0.98kg-85PCS
Specification:
|
Image feature:Sharp CCD/Sony CCD optional |
|
TV System:NTSC/PAL |
|
Image area:5.961mm×4.276mm |
|
Effective pixels:N:510(H)x492(V)/P:500(H)x582(V) |
|
Horizontal Resolution(TV lines):480 TV lines |
|
View angel:2.8mm 120° |
|
water-proof rating:IP67-IP68 |
|
minimum Illumination:0 Lux with IR |
|
IR LED:18 PCS |
|
Electronic Shutter Time:1/50(1/60)-1/100,000sec. |
|
Scanning System:2:1 Interlace |
|
Sync System:Internal |
|
S/N ratio:>48dB |
|
Video Output:1.0Vp-p,75ohm |
|
Power Source:DC12V±10% |
|
BLC:automatism |
|
AGC:automatism |
|
White Balance:automatism |
|
Operation Temperature:-20ºC~+75ºC(RH95%Max.) |
|
Storage Temperature:-40ºC~+85ºC(RH95%Max.) |
